Using a seated displacement machine to convey deep care

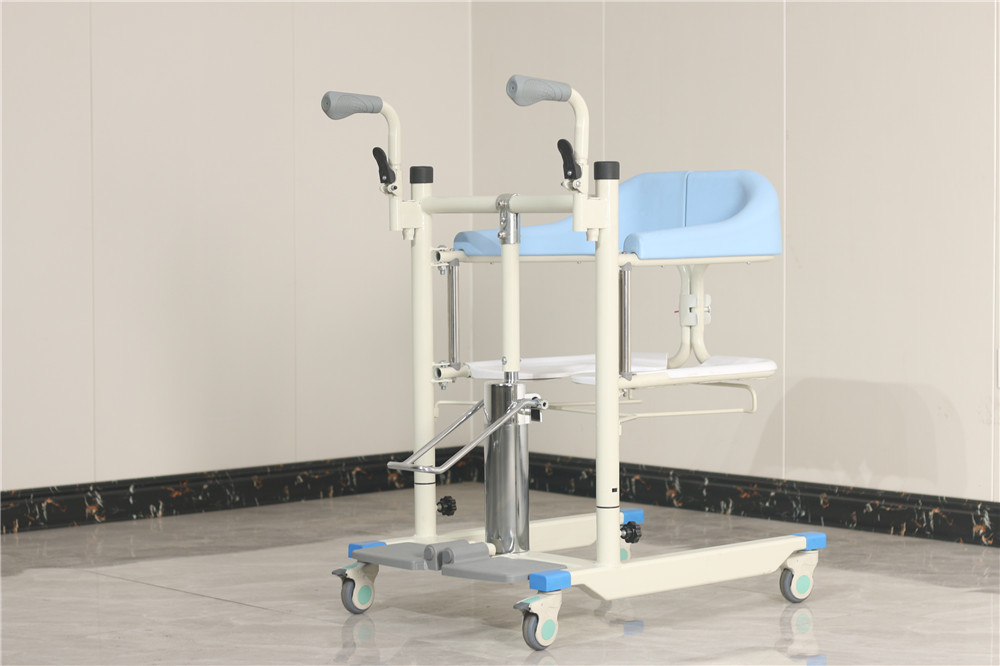

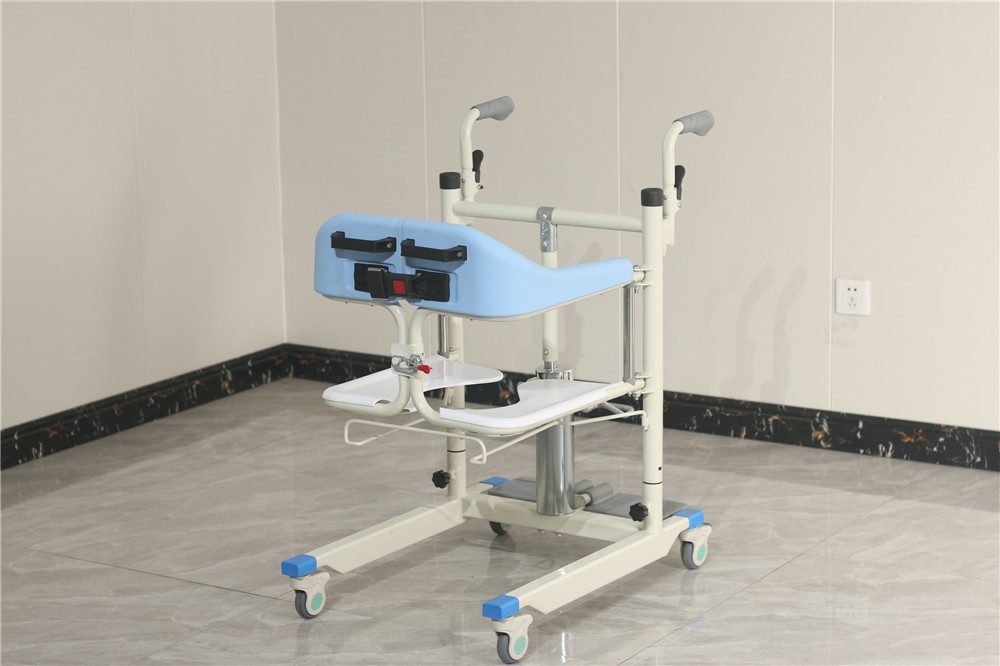

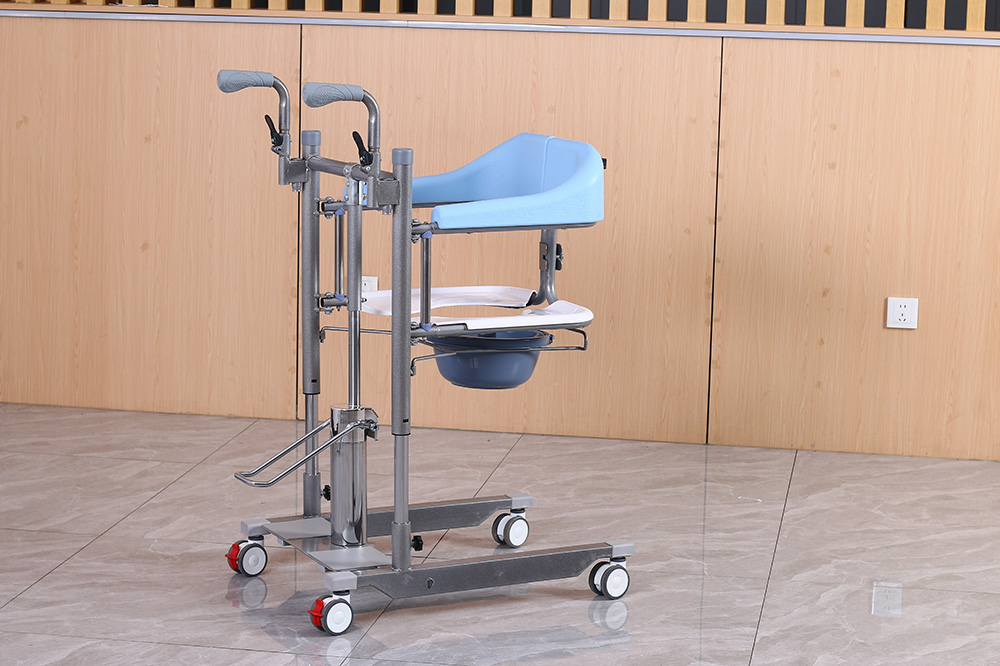

A seated displacement machine is an auxiliary device designed specifically for people with limited mobility.
Its main feature is that it allows users to transfer safely and comfortably in a sitting position.

product details

Product Parameters

Product Name	Seated displacement machine
key word	Shift machine
Model	YWJ-03
Size	Product dimensions: length 800 * width 530 * height 960-1150mm (including armrest) Seat inner diameter size: length 440 * width 400mm Seat lifting height: 480-670mm Base height: 130mm Ground clearance of base: 70mm
Work load	120KG
Control method	hydraulic pressure
Specific purpose	Auxiliary displacement

Product Material

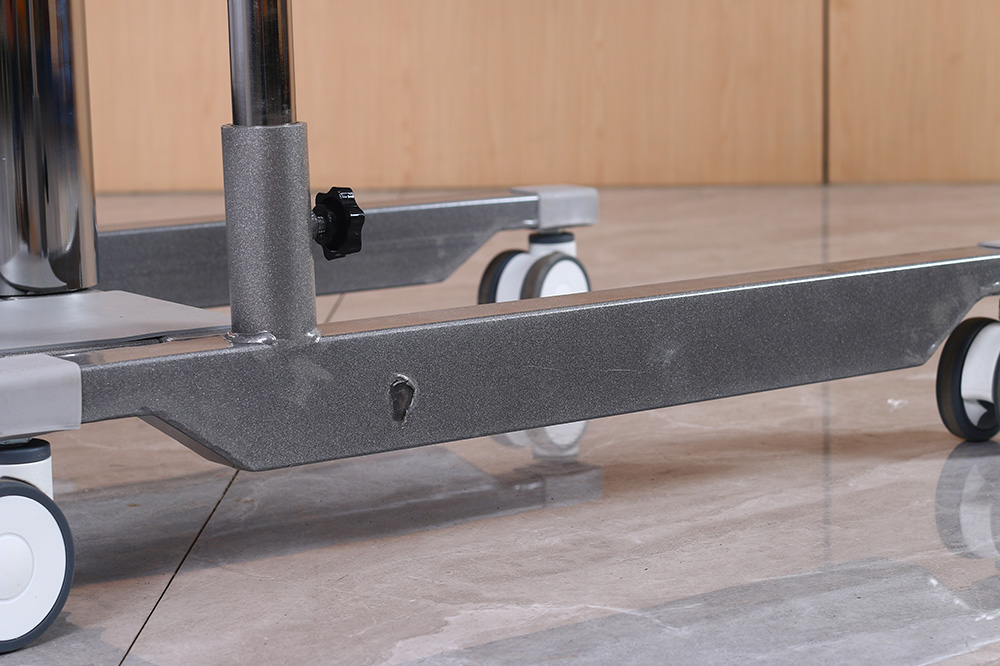

The base is made of high-quality rectangular steel pipes measuring 40 * 60 * 3.0mm; The outer diameter of the lifting column is 40mm, the inner diameter is 30mm, and the thickness is 3.0mm. The seat frame is a circular tube with a diameter of 25mm, which is welded as a whole. The welding process is exquisite, the welding joint is smooth and flat, solid and firm, and extremely durable. After surface baking treatment, there are no scratches, burrs, or edges, and the appearance is exquisite.

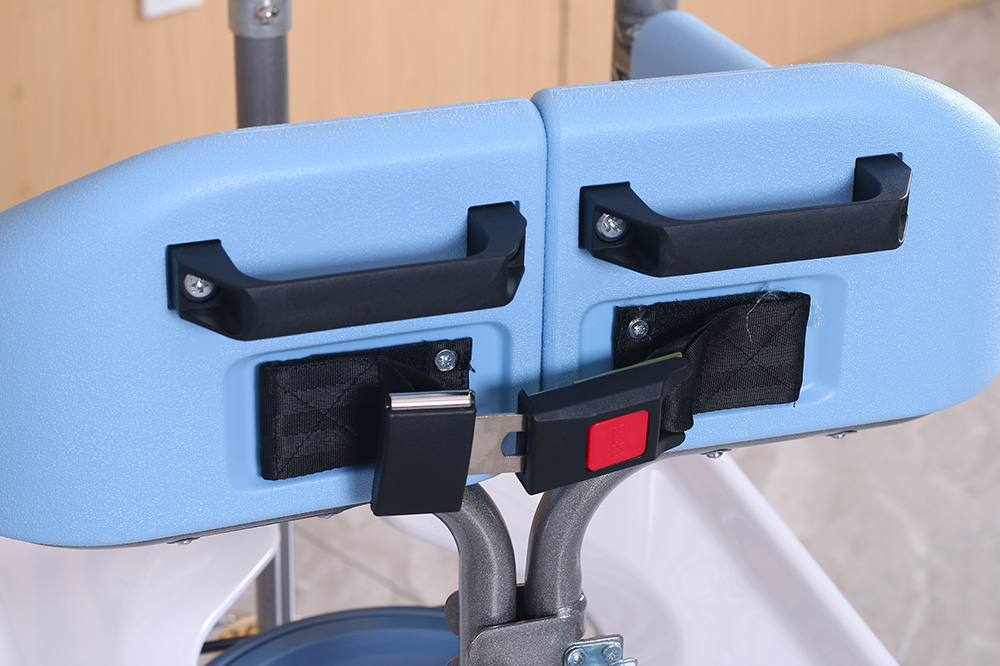

The backrest is made of one-time molded PE plastic pads, and the seat plate is made of two one-time molded ABS seat cushions, which have the characteristics of fade resistance, aging resistance, corrosion resistance, and are easy to clean.

Function Configuration

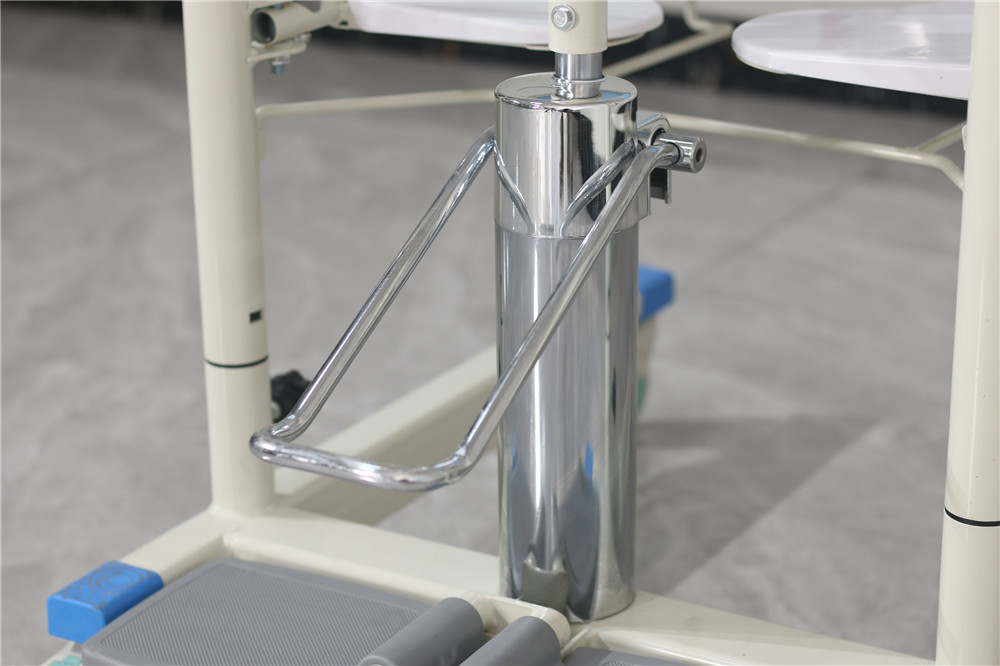

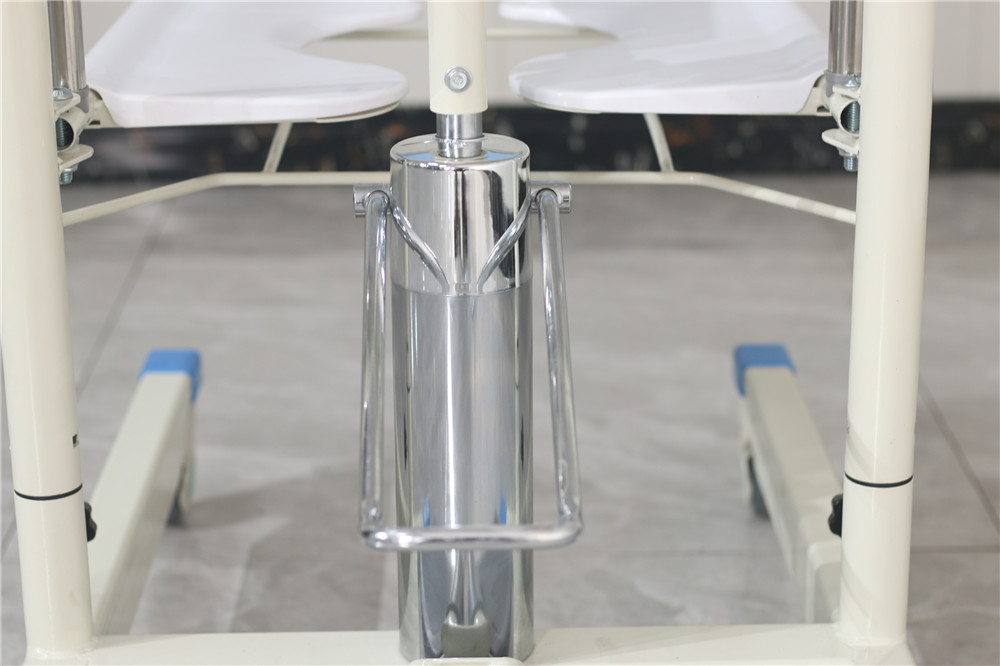

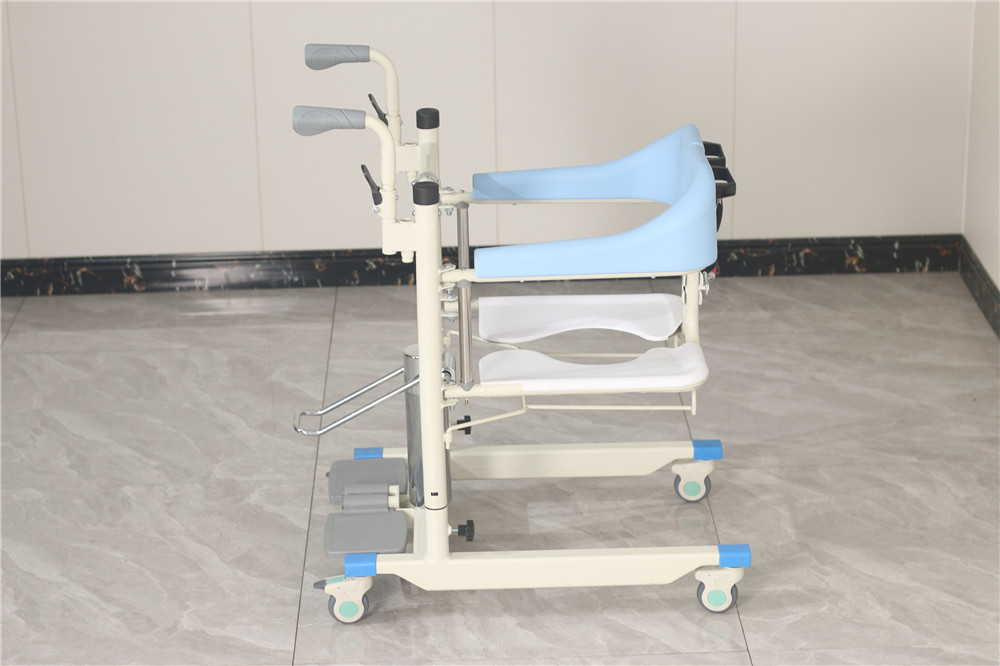

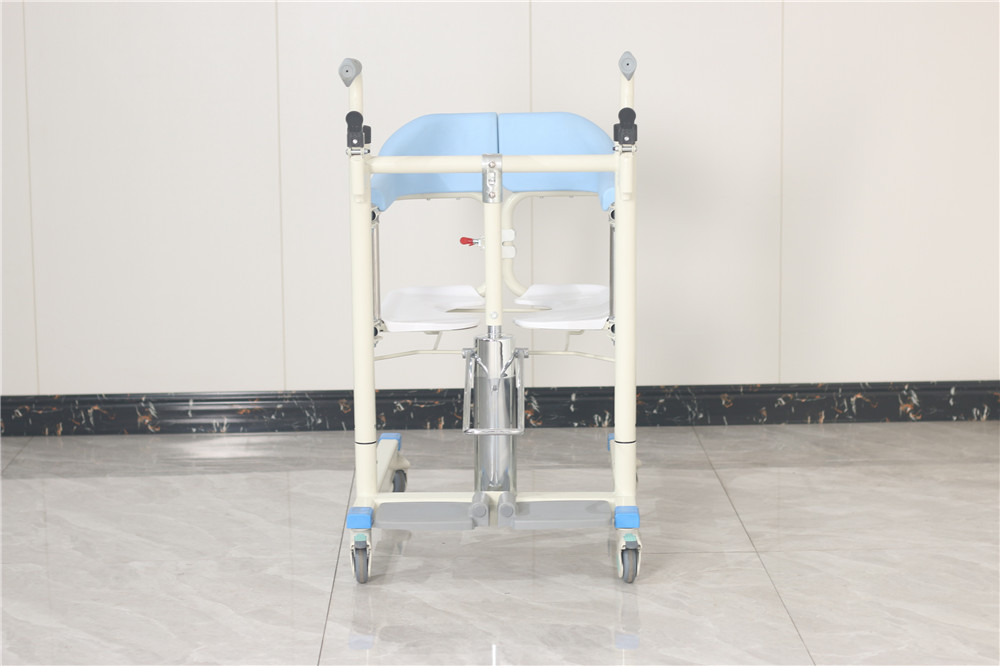

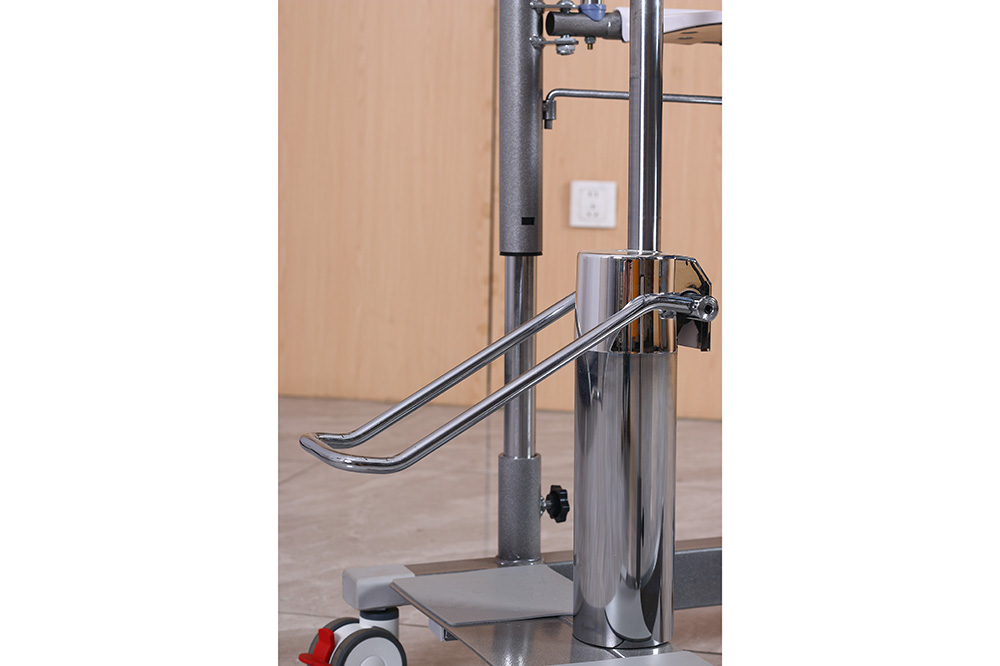

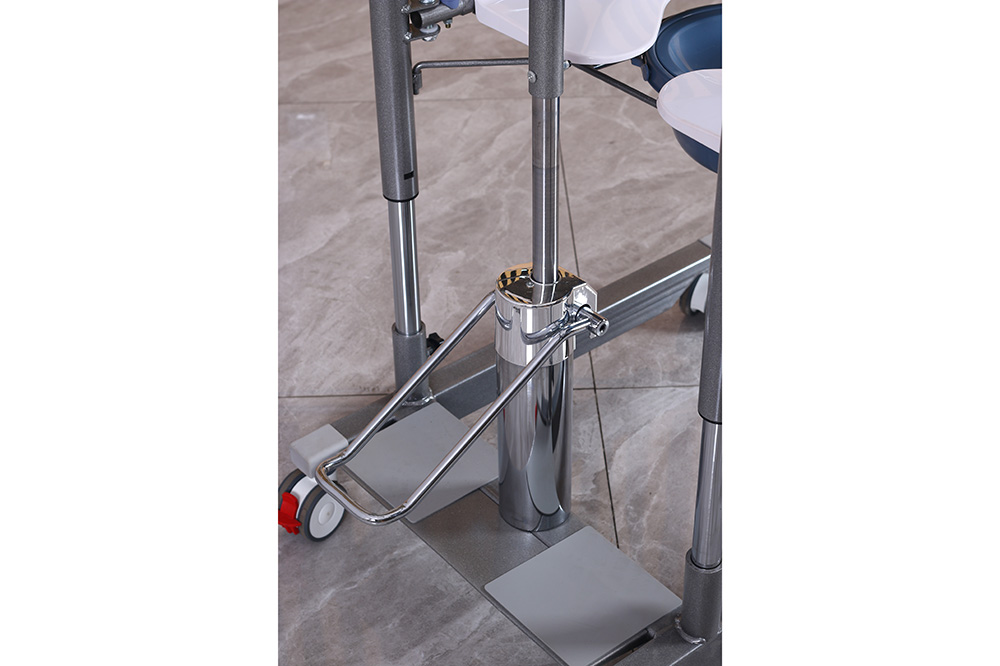

- The height adjustment adopts hydraulic lifting method, which can adapt to the height of different bed types.
01

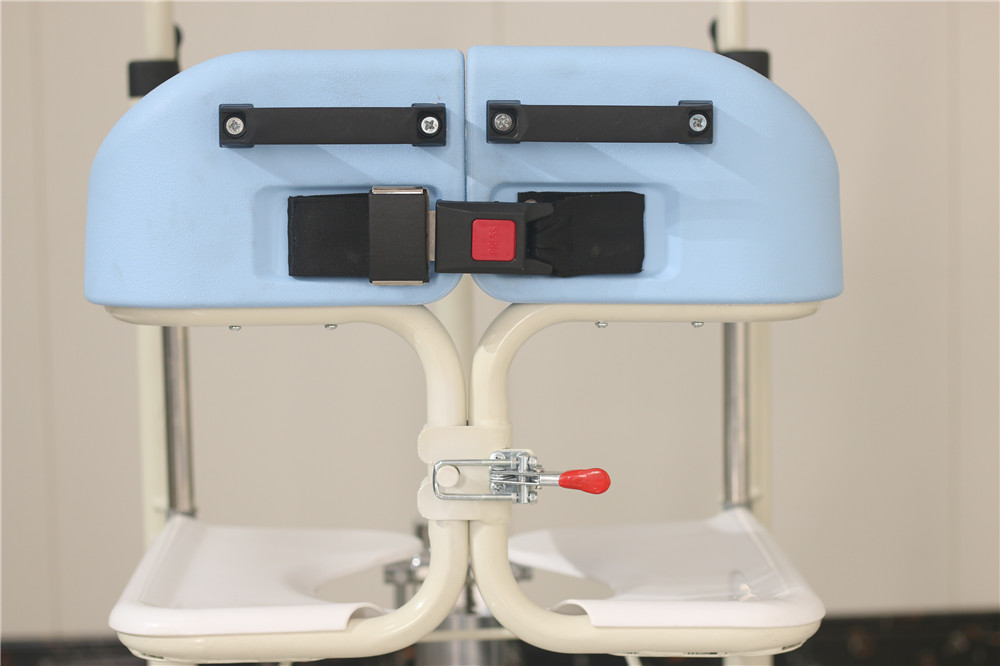

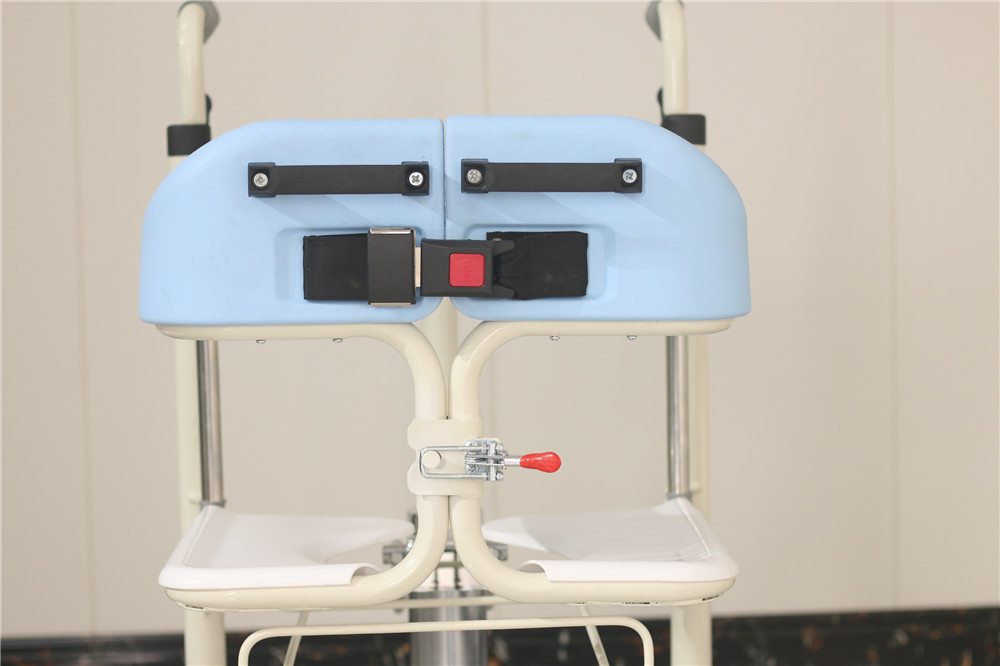

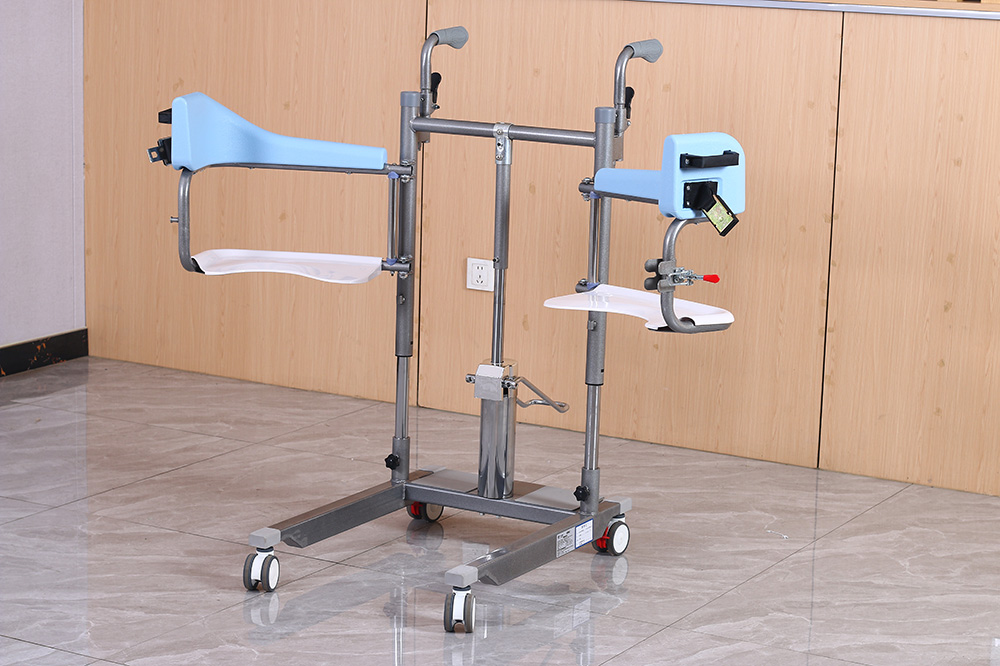

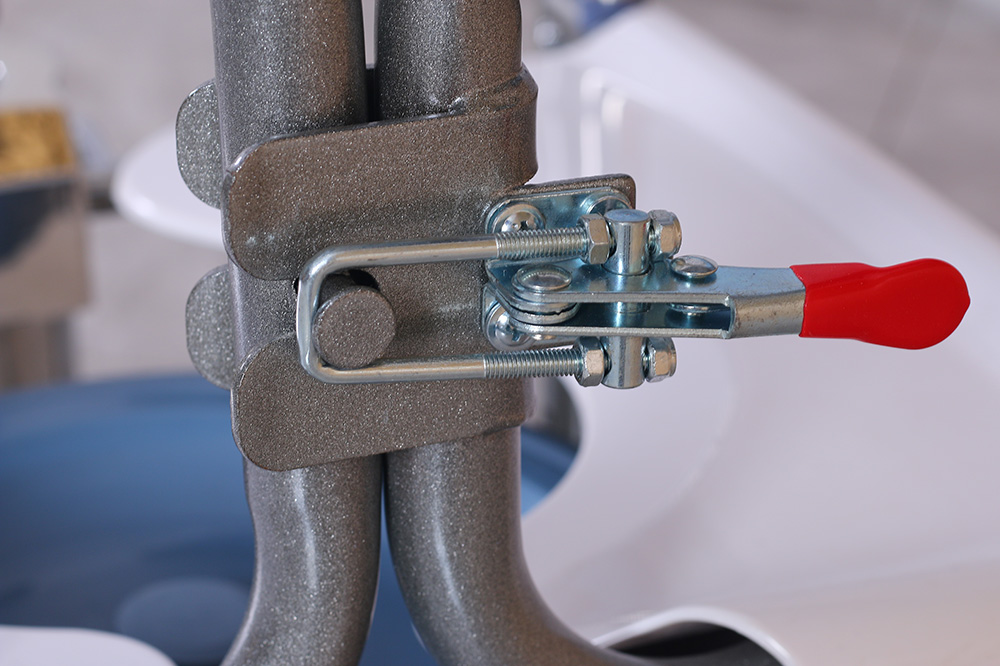

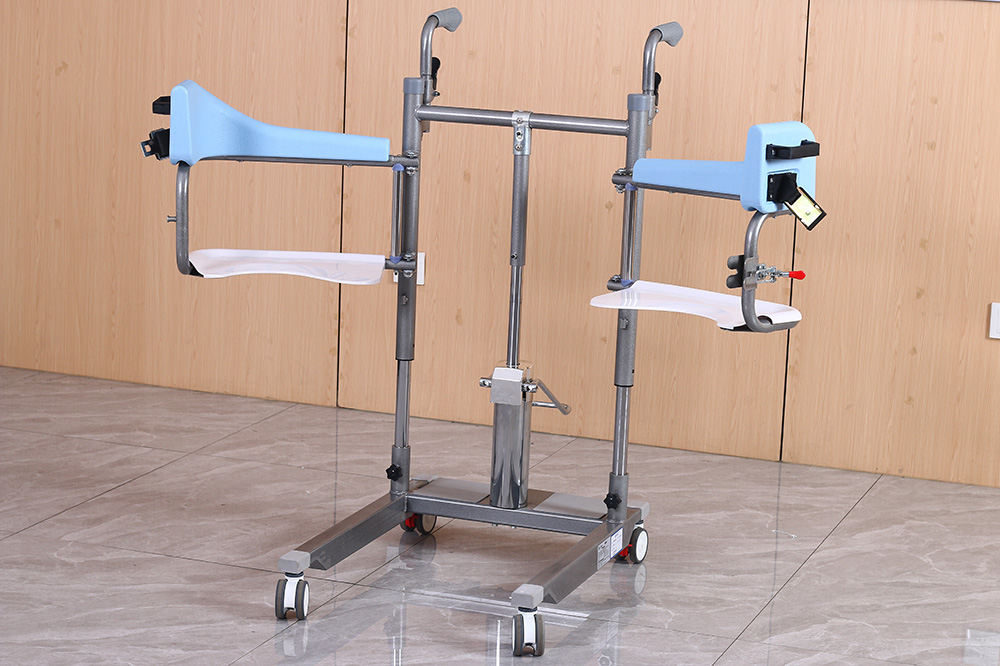

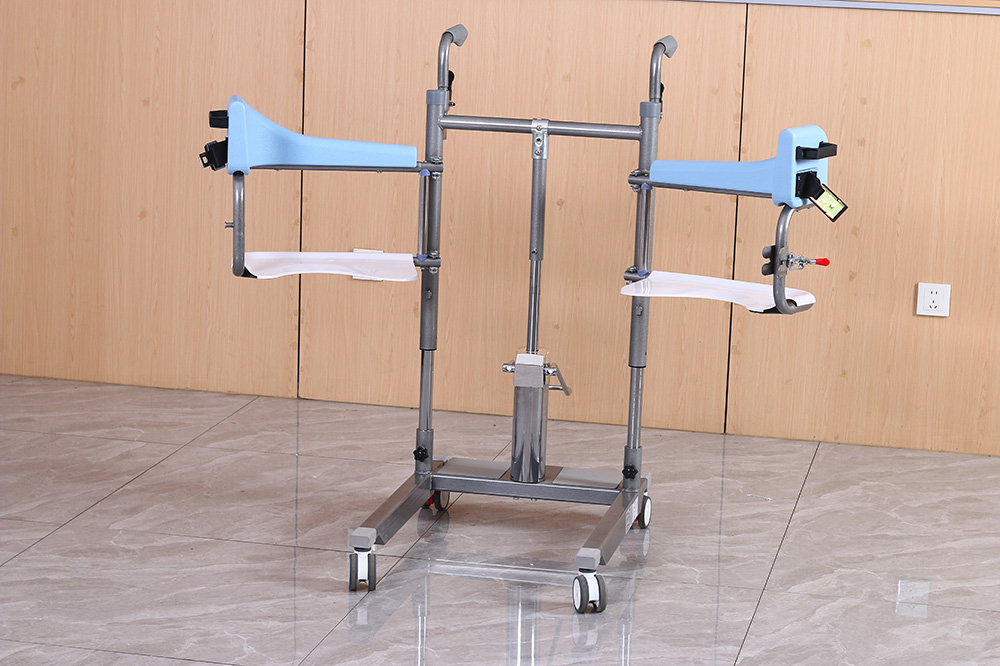

- The seat can be manually extended to the left and right by 60 degrees, in an open position, making it convenient for the person being cared for to ride.
02

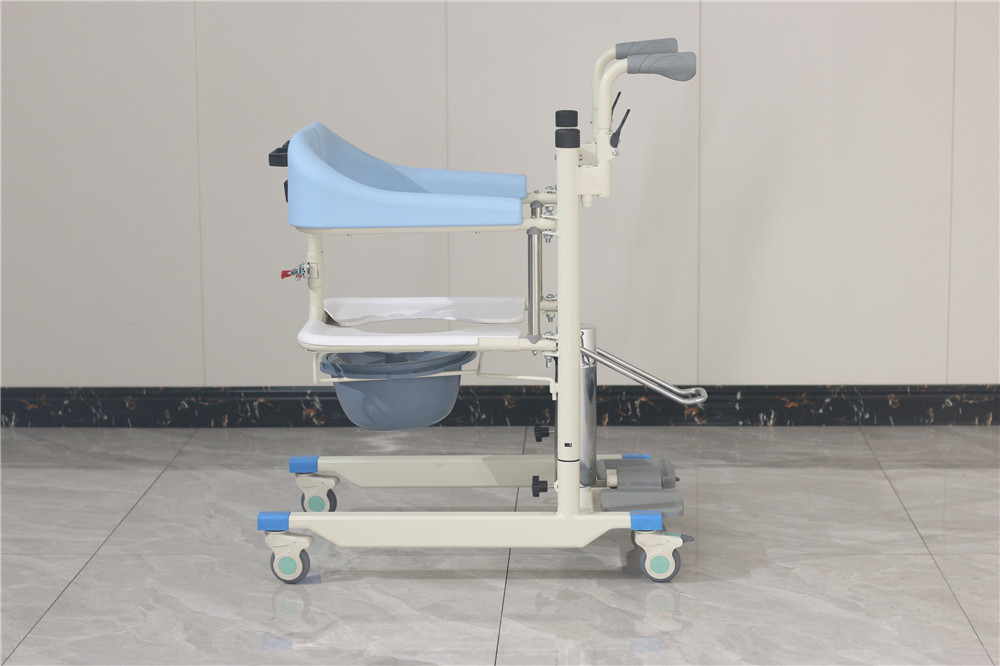

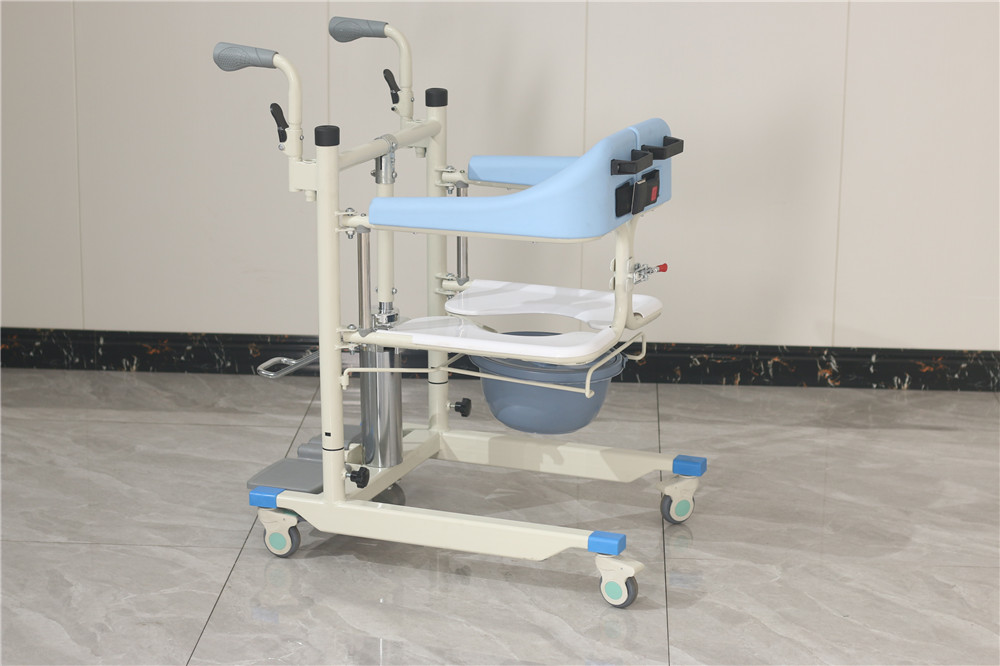

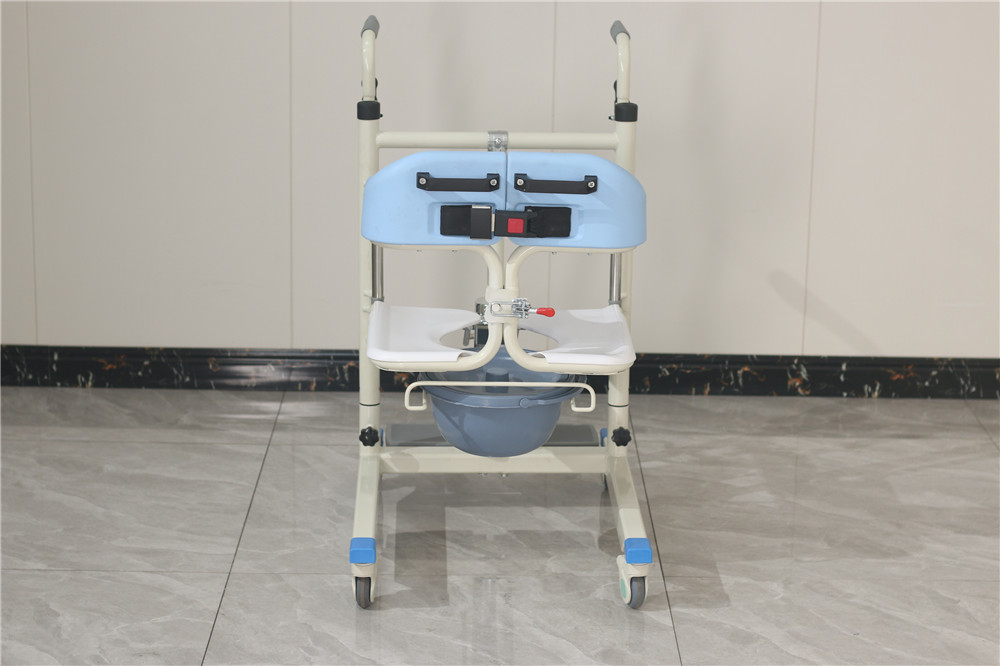

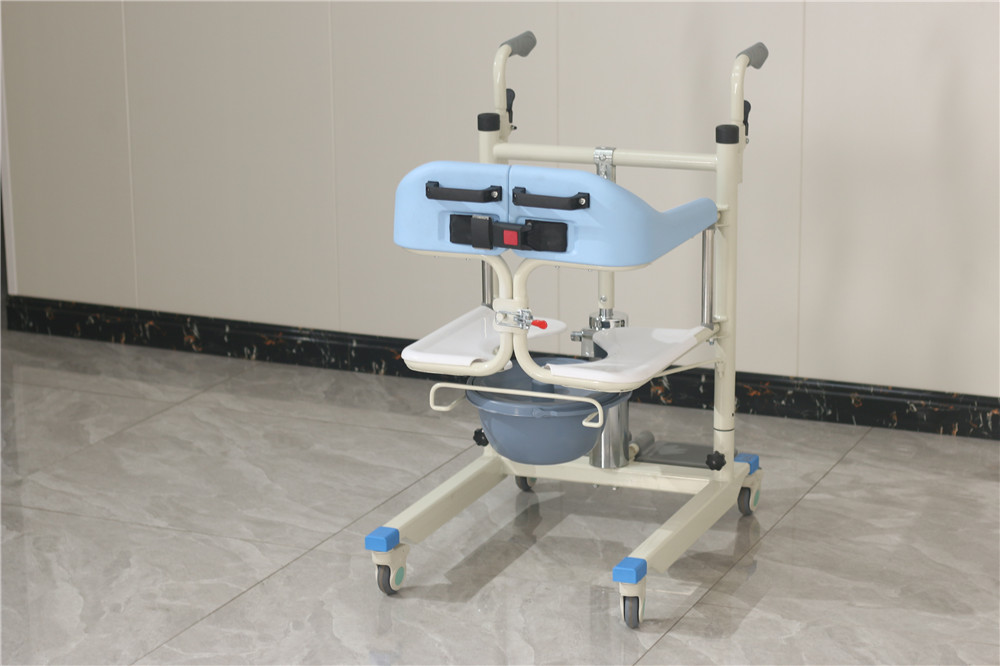

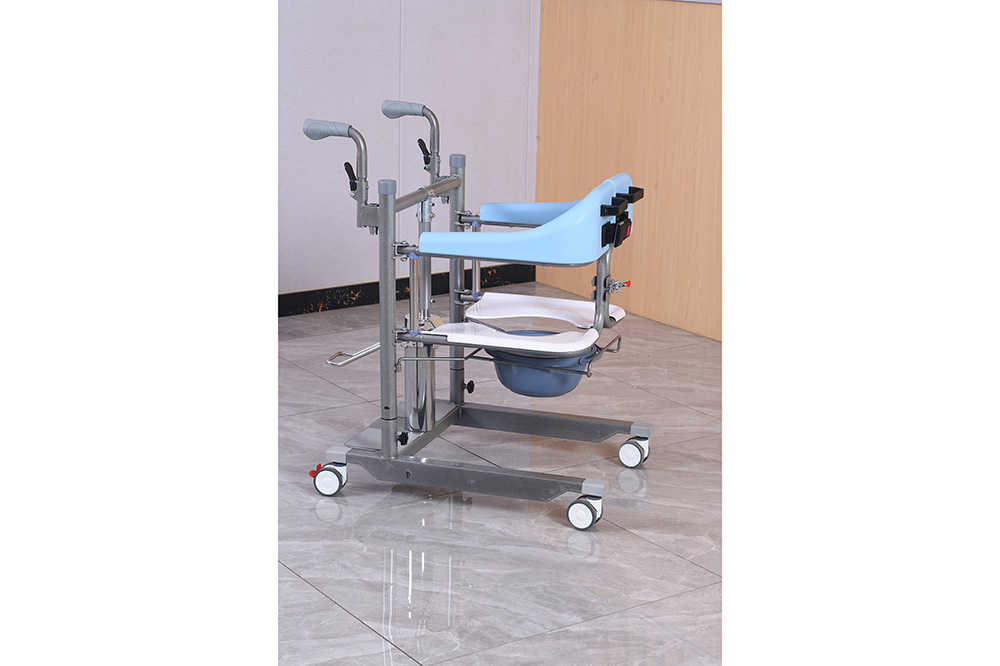

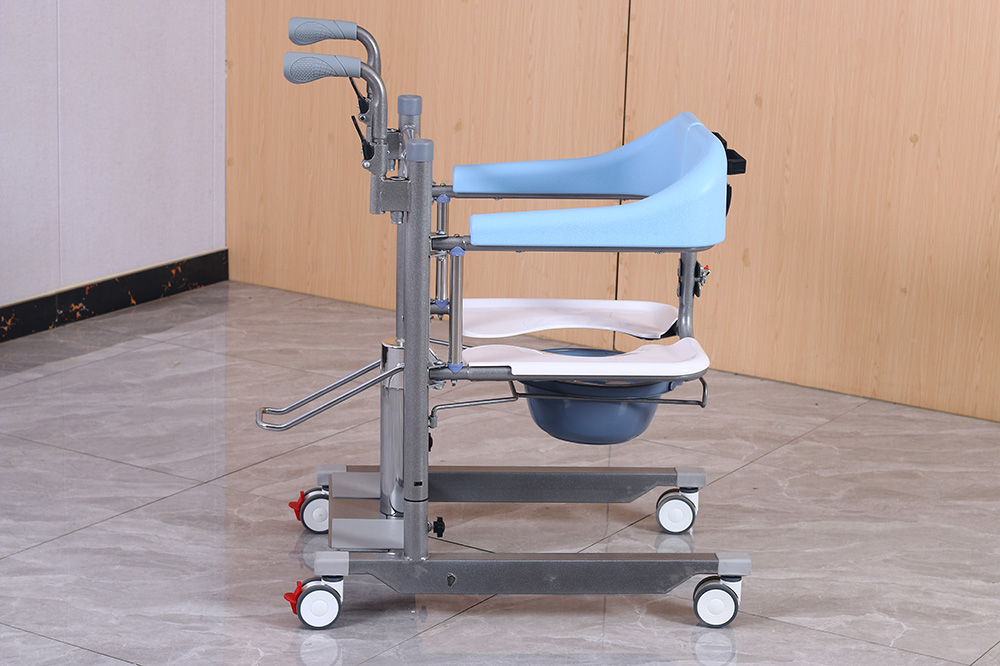

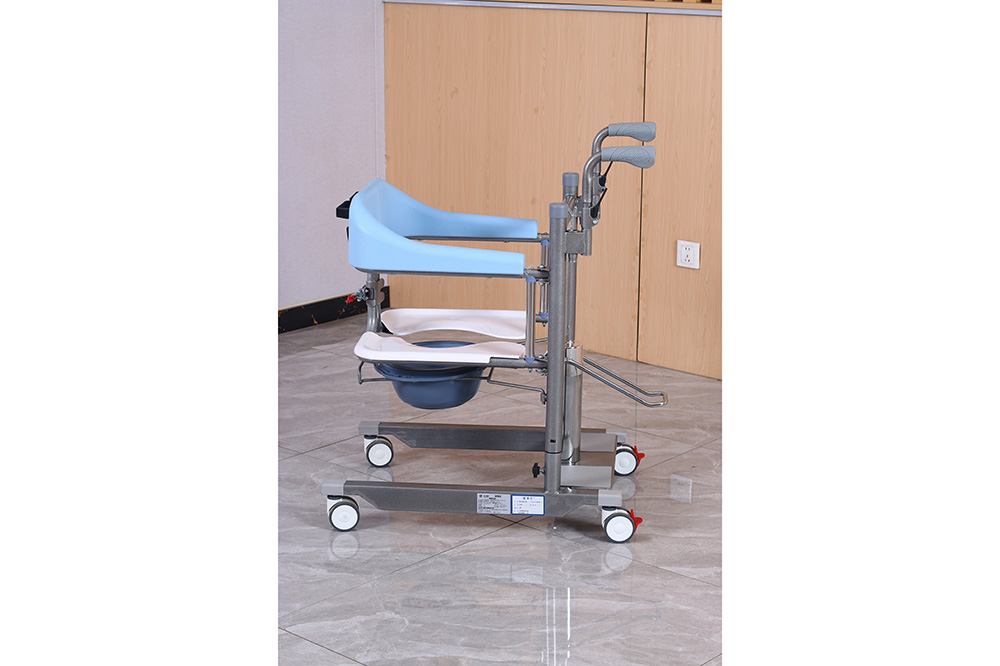

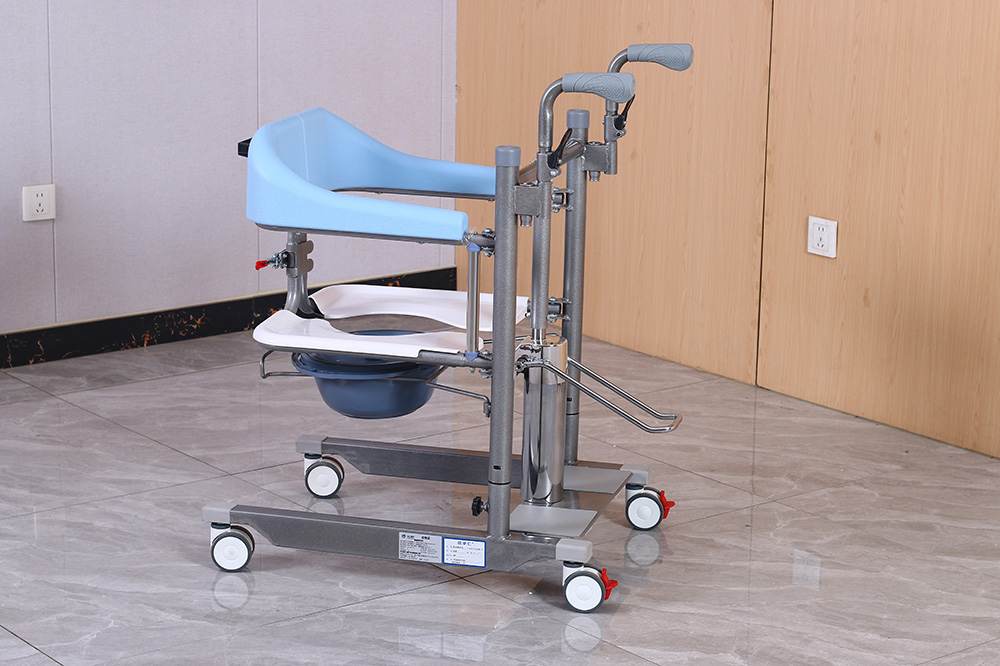

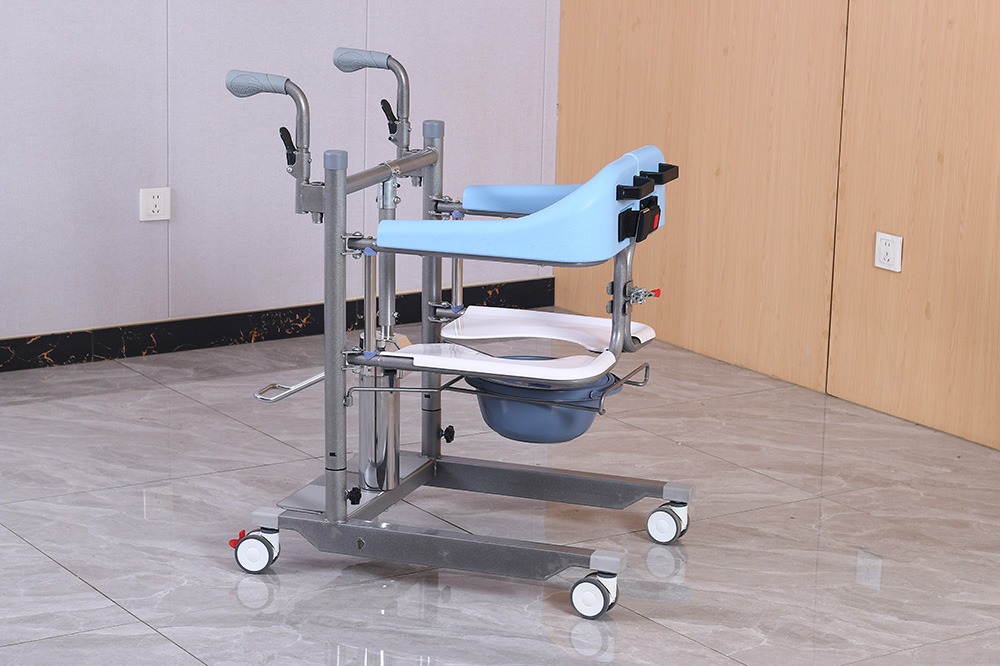

- It has a toilet seat function, with a detachable toilet bowl bracket and toilet bowl under the seat. The toilet bowl bracket can also be removed and moved to the toilet for use.
03

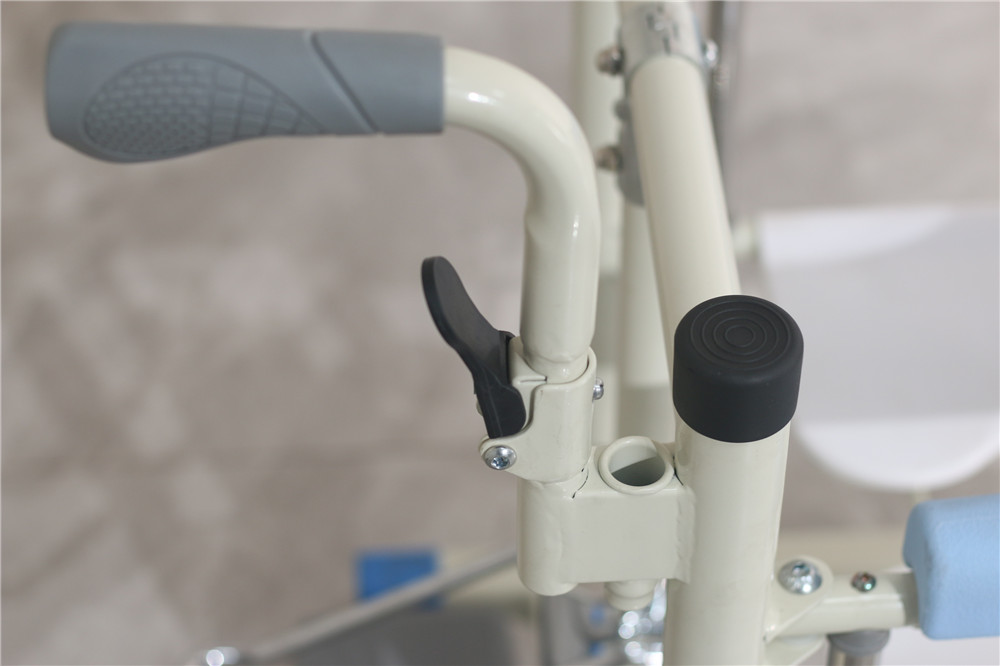

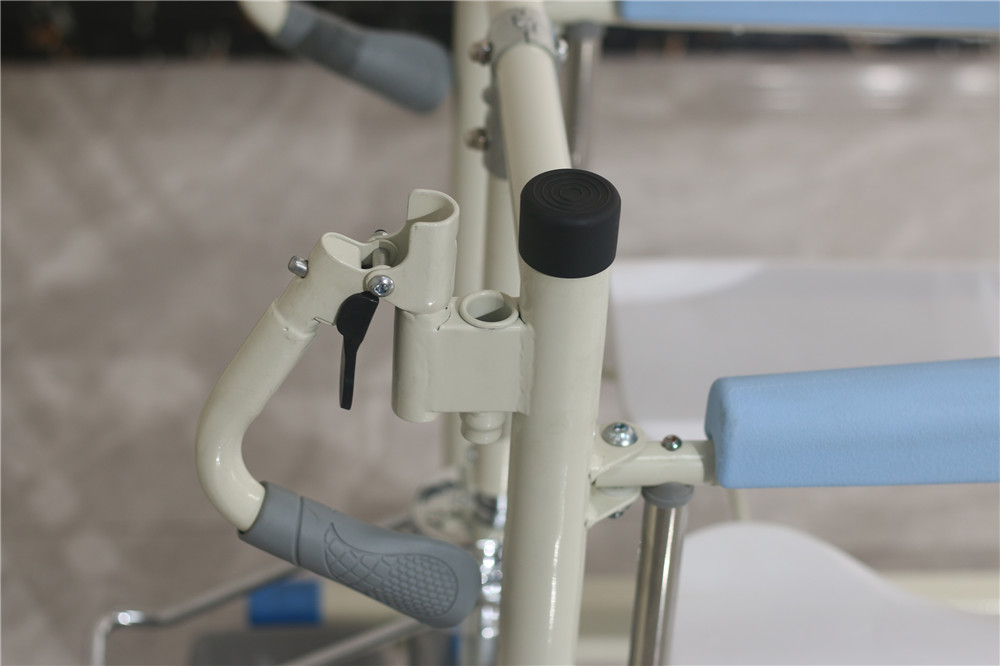

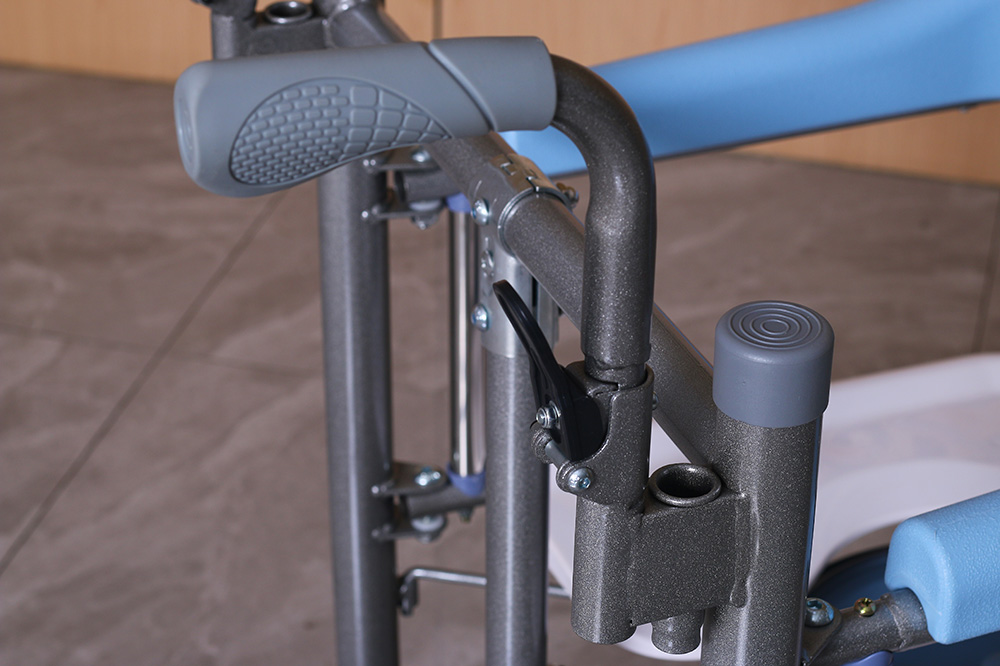

- There are infusion rack sockets designed on both sides of the armrest.
04

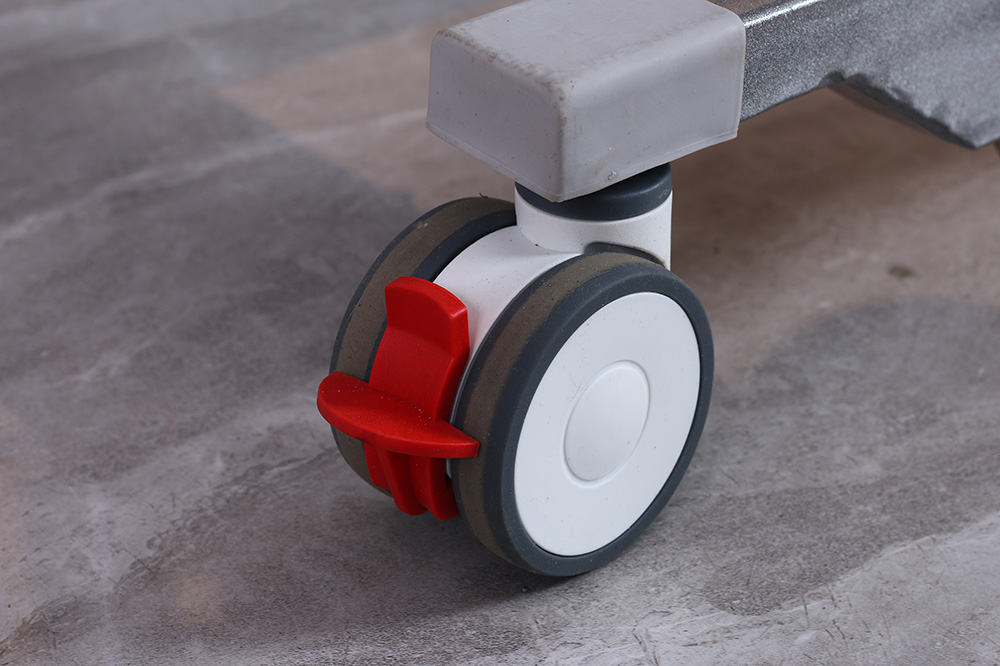

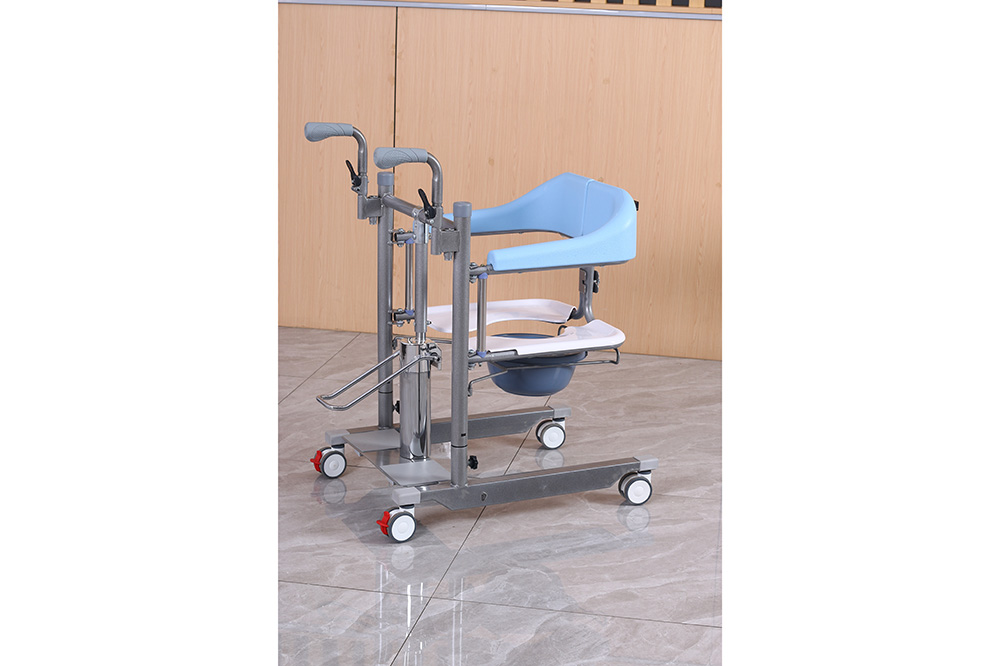

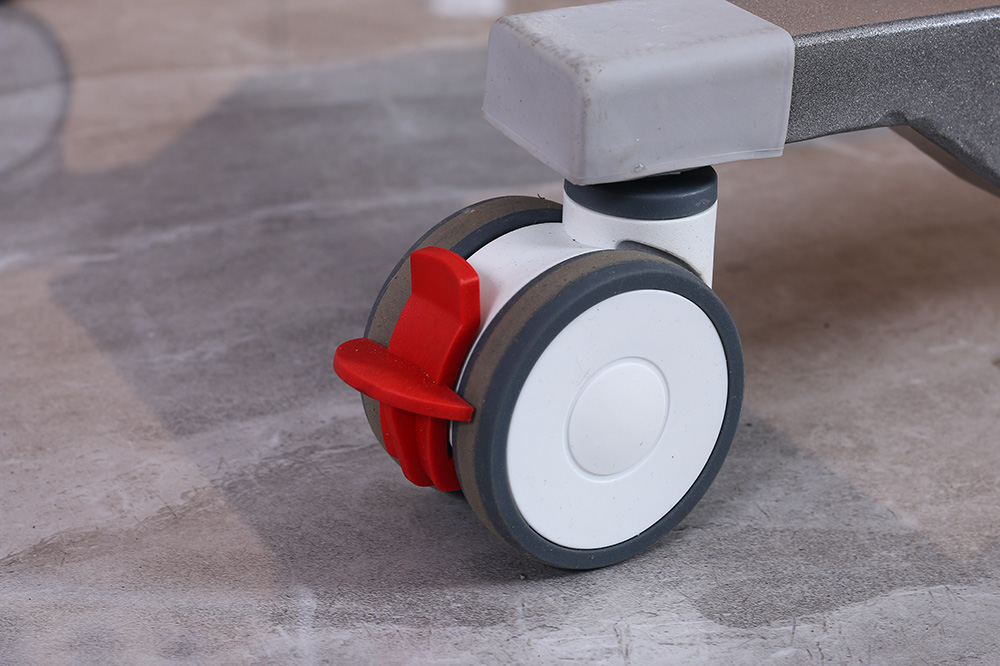

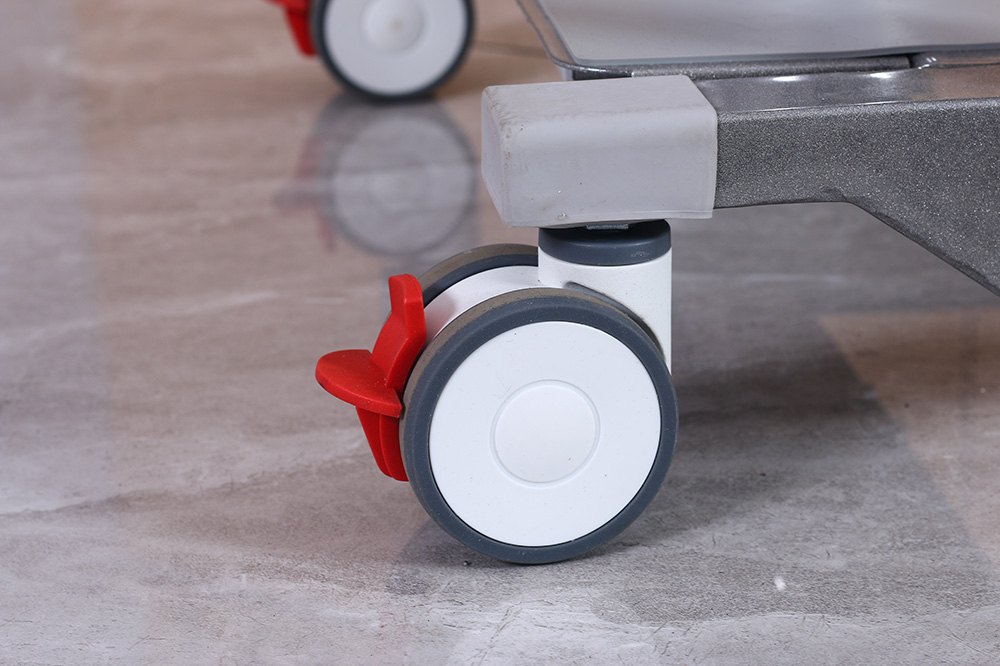

- Equipped with four 3-inch universal silent casters, the rear wheels are brake casters, ensuring smooth and safe movement.
05
