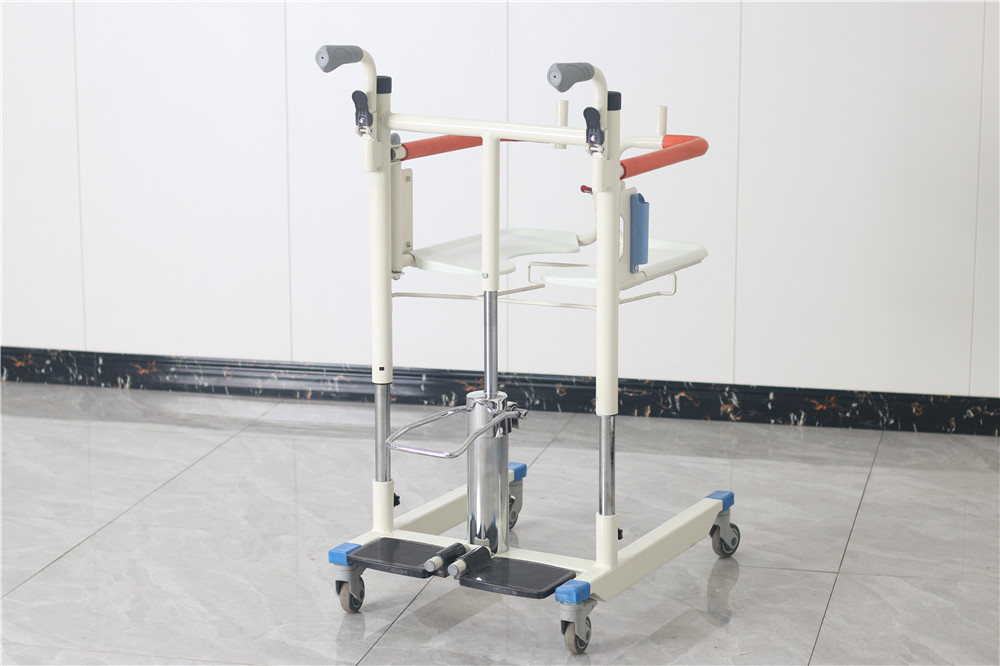

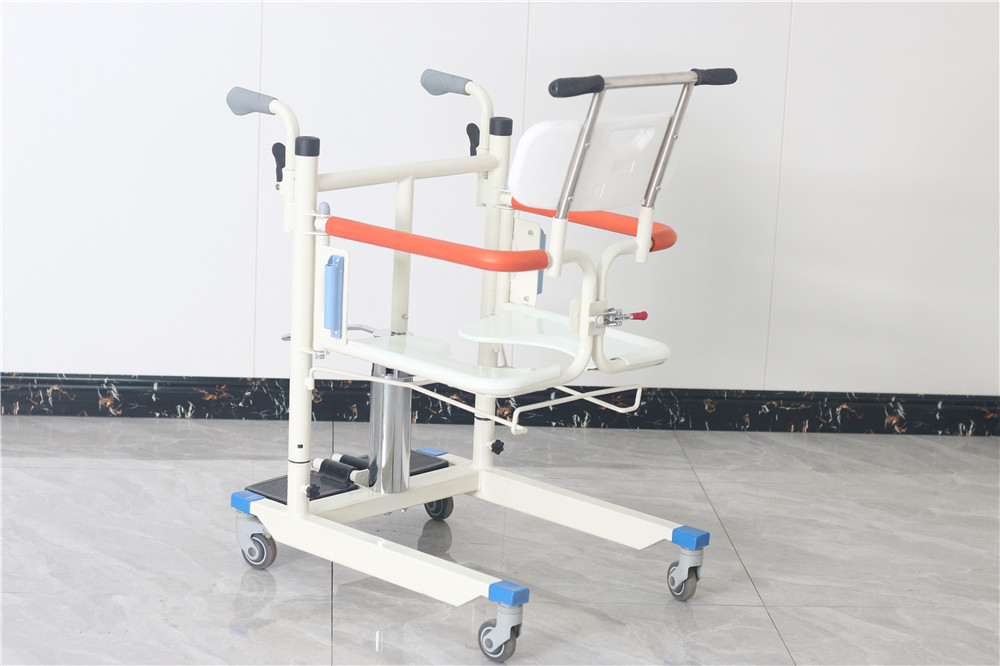

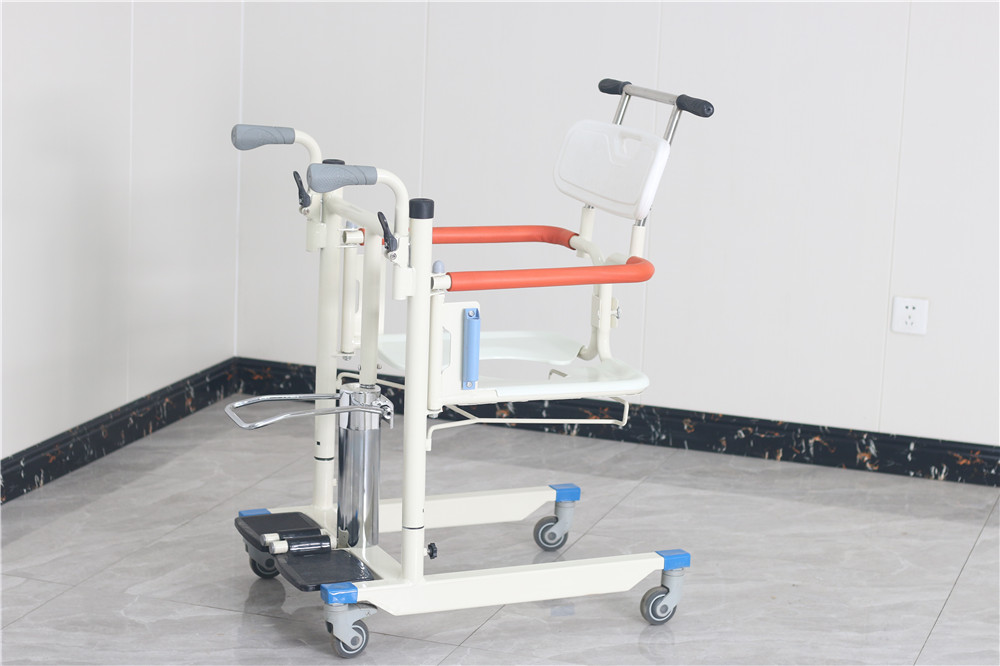

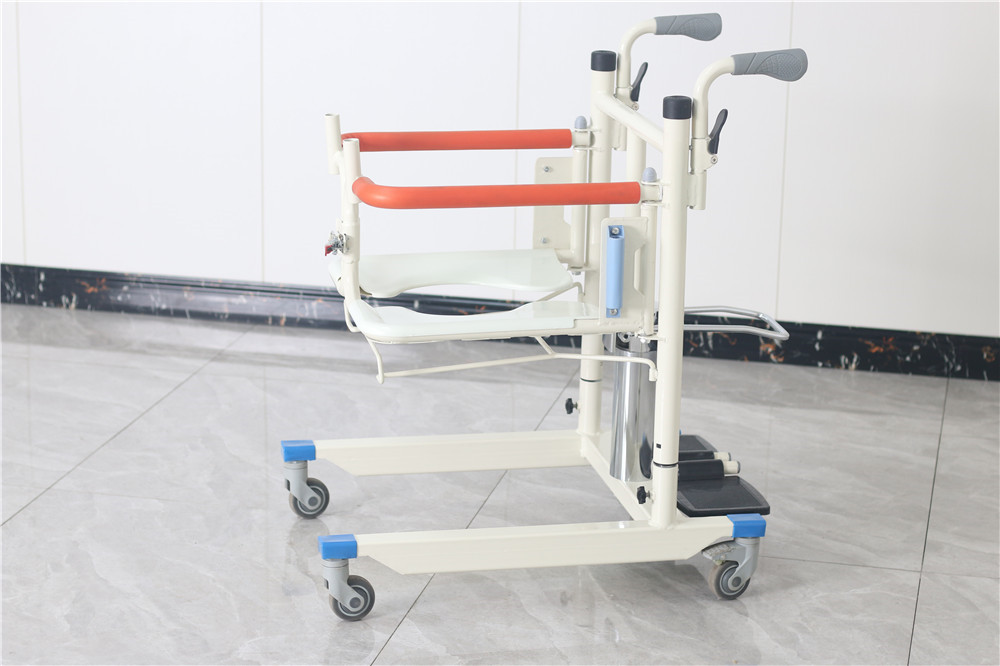

Sitting assistance, easy shifting - Sitting shifting machine

A seated displacement machine is an auxiliary device designed specifically for people with limited mobility.

Its main feature is that it allows users to transfer safely and comfortably in a sitting position..

product details

Product Parameters

Product Name	Seated displacement machine
key word	Shift machine
Model	YWJ-02
Size	Product dimensions: length 800 * width 530 * height 960-1150mm (including armrest) Seat inner diameter size: length 440 * width 420mm Seat lifting height: 480-670mm Base height: 130mm Ground clearance of base: 70mm
Work load	120KG
Control method	hydraulic pressure
Specific purpose	Auxiliary displacement

Product Material

The base is made of high-quality rectangular steel pipes measuring 40 * 60 * 3.0mm; The diameter of the outer pipe of the lifting column is 40mm, the diameter of the inner pipe is 30mm, and the thickness is 3.0mm. The seat frame is a 25mm diameter circular pipe, welded as a whole, firmly welded, with smooth and sturdy welding joints. The surface is treated with baking paint, without scratches, burrs, or edges.

The plastic wrap design on both sides of the seat is soft and comfortable. The backrest is made of one-time molded PE plastic pads, and the seat plate is made of two one-time molded ABS seat cushions, which are resistant to fading, aging, corrosion, and easy to clean.

Function Configuration

1.The height adjustment is hydraulic lifting, which can adapt to different bed heights;

2. The seat can be manually extended by 60 degrees to the left and right, forming an open design that is convenient for the person being cared for to ride.

3. Toilet function: A detachable toilet bowl bracket and toilet bowl are installed under the seat, and the toilet bowl bracket can also be removed to move the toilet for use.

4. Install infusion rack sockets on both sides of the armrest.

5. Configure 4 3-inch universal silent casters, with brake casters for the rear wheels.
