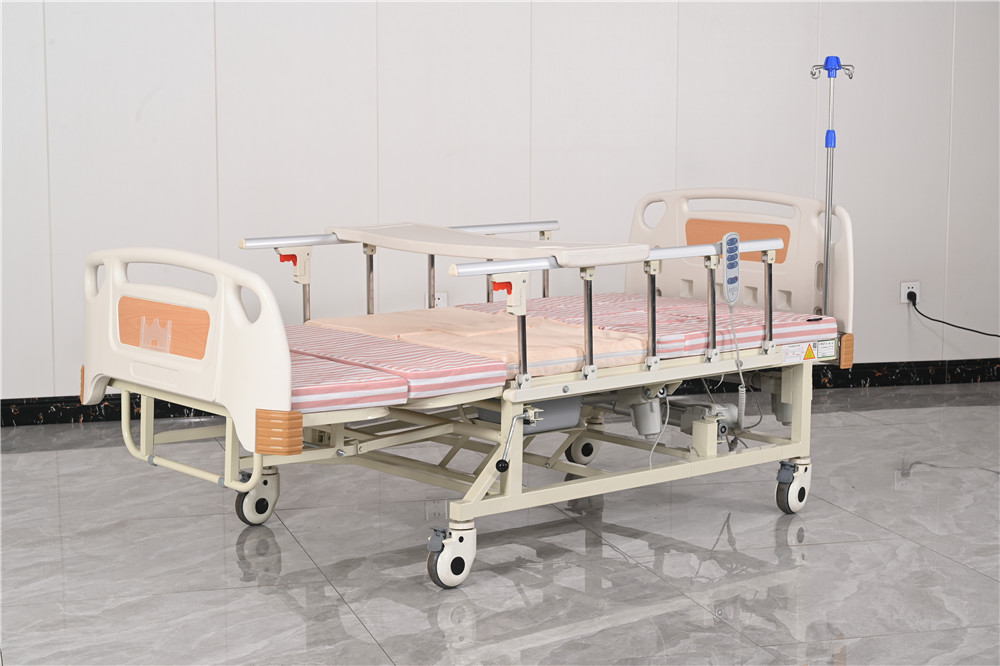

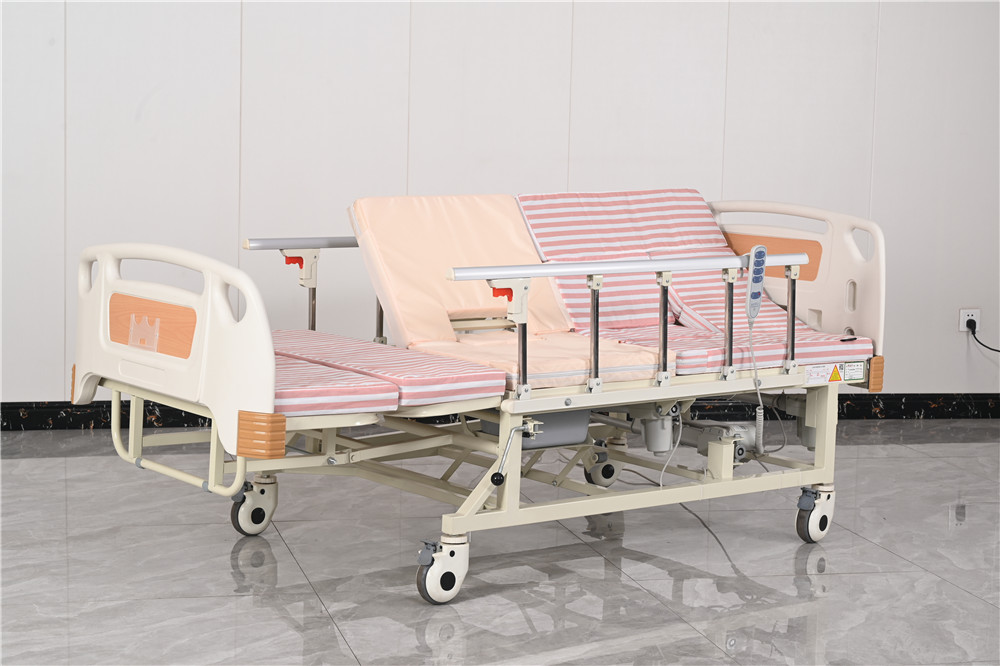

Quality Choice: Integrated flashlight multifunctional turning care bed, escorting health
| Product Name | Integrated flashlight multifunctional flip nursing bed |
| key word | Multi functional nursing bed |
| Model | |
| size | Outer diameter dimensions: length 2050 * width 960 * height 560mm (including mattress) Inner diameter dimensions: length 1950 * width 900 * height 500mm (excluding mattress) Toilet hole size: length 310 * width 220mm |
| function | 5 functions |
| Bedhead and Bedend | ABS engineering plastic |
| Work load | 240 kilograms |
| Timed turnover period | 30 minutes or 45 minutes |
| Control method | Manual/Electric |
| Caster wheels | Mobile silent casters |
| Specific purpose | Bed care bed |
| colour | Standard or customized |
| OEM/ODM | accept |
| Minimum order quantity | 1 set |
01
The number of motors is 3, which can be used for electric left and right turning, electric standing, electric leg lifting, and manual toilet seat conversion. It also has a timed turning function and a back up anti slip function, with two options for timed turning time: 30 minutes and 45 minutes.

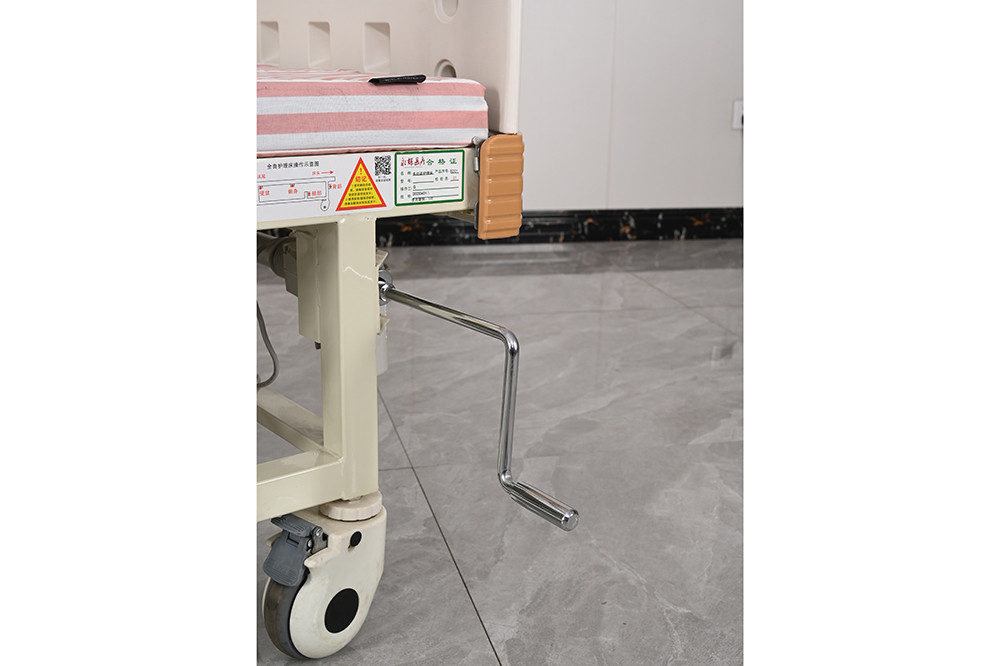

Manual operation function
When there is a power outage, users still need normal care and can manually operate to complete various functions. To avoid the inconvenience of increased nursing difficulty caused by power outages.
02

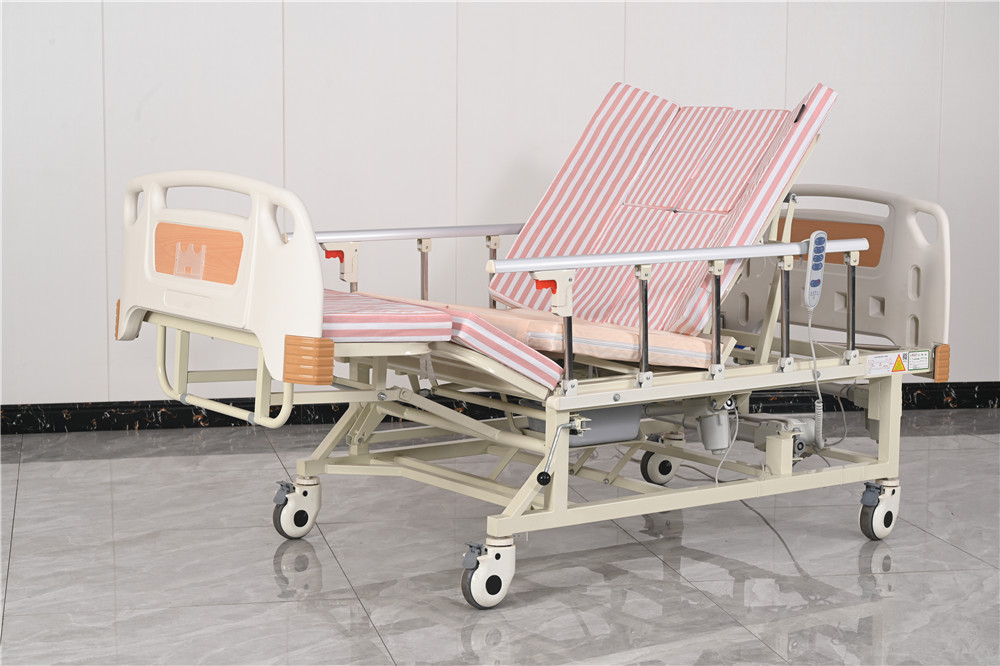

One click start function

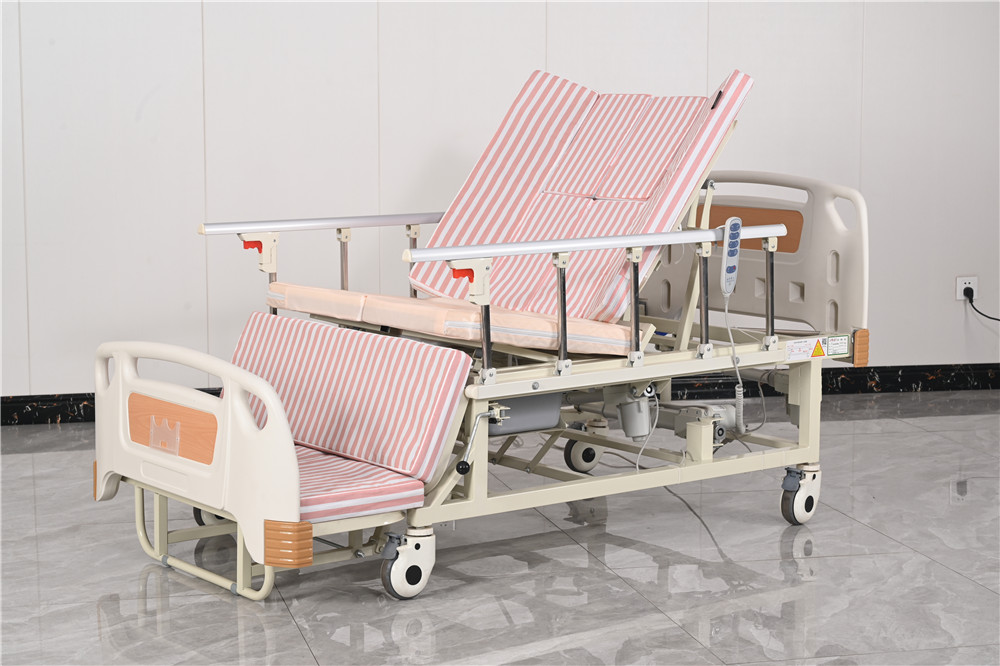

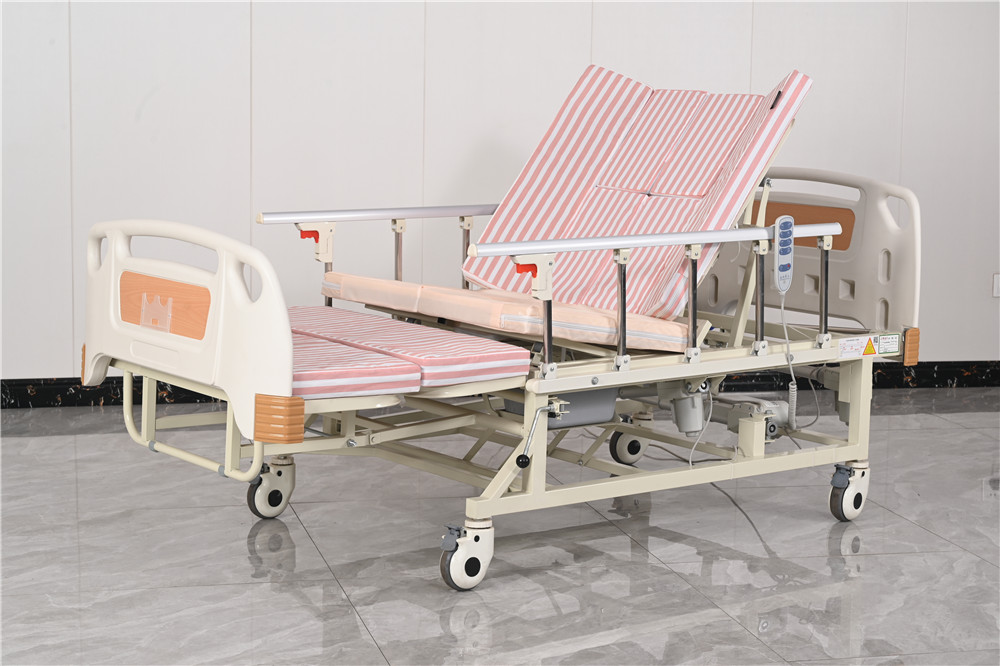

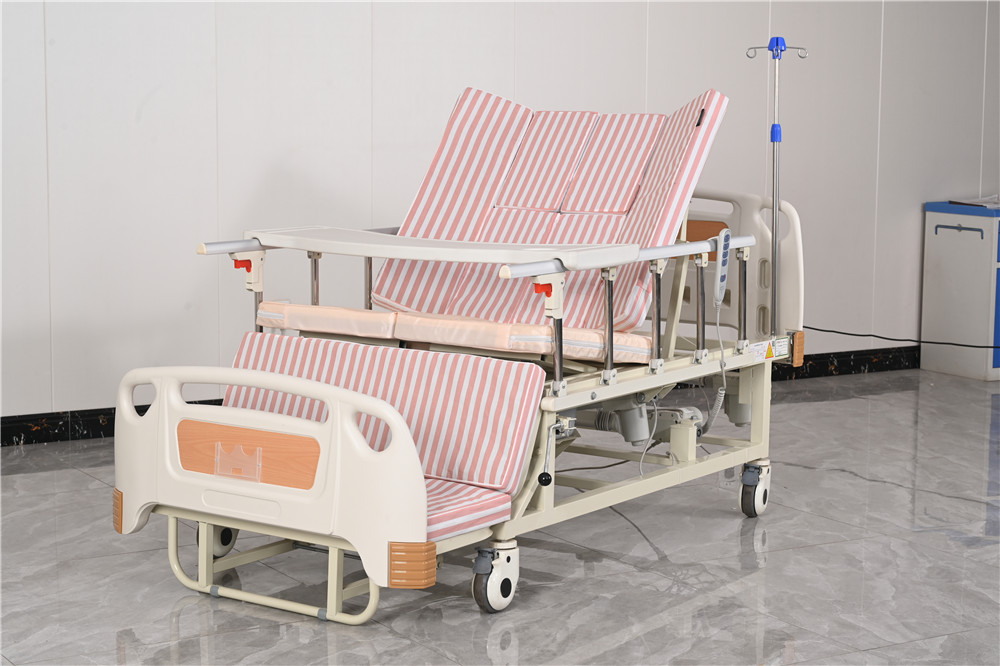

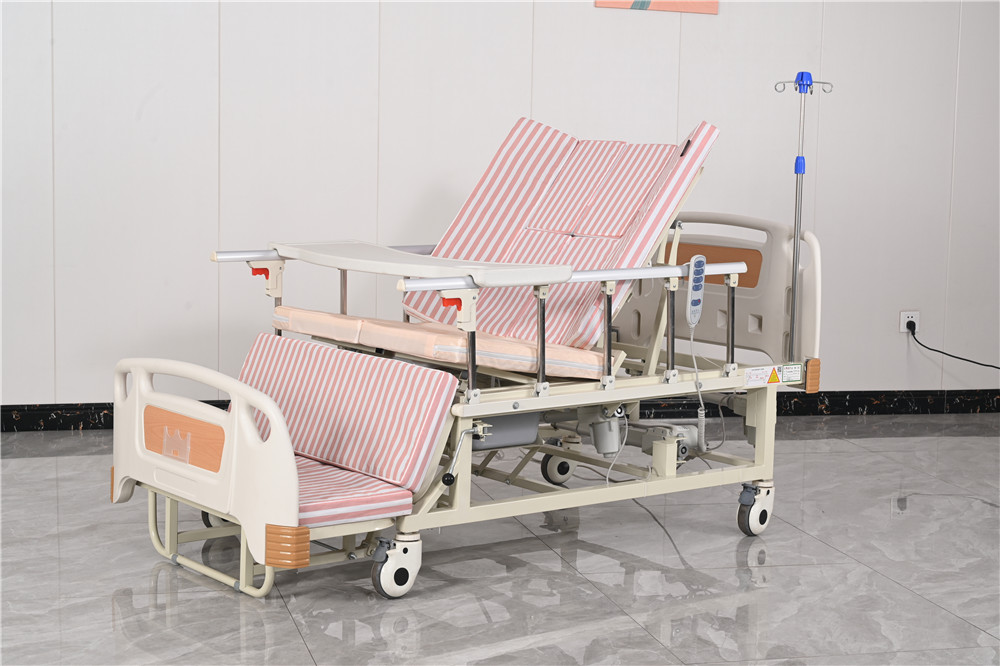

One click linkage function between the back and leg board, lifting the back, lowering the legs, and putting the bed in a sitting state.
Back up anti slip function
As the sitting angle of the human body continues to increase, the bed boards on both sides move inward in a semi enclosed form to avoid the caregiver tilting towards both sides.
Back up anti slip function
As the back lifting function progresses, the support plate of the human buttocks is lifted upwards, effectively preventing the caregiver from losing effective sitting posture during the back lifting process, resulting in slipping and displacement of the sitting position.
03
One click reset function
Clicking the reset function button can restore the nursing bed to a lying down state without the need to sequentially restore various functional states, simplifying the operation process and effectively avoiding improper operation caused by accidental touch.
Emergency stop function
To prevent special situations caused by improper operation by users, the remote control handle is equipped with an emergency stop button. In case of special situations, the "emergency stop" function button can be pressed to immediately stop all functions. After accidental release, the operation can continue.
04
Motor anti winding design
Due to the exposed design of the motor end of products on the market, it is easy to get tangled with objects during electric maintenance. The motor terminals of our products are all designed with an embedded design, which not only looks beautiful but also completely avoids similar situations.

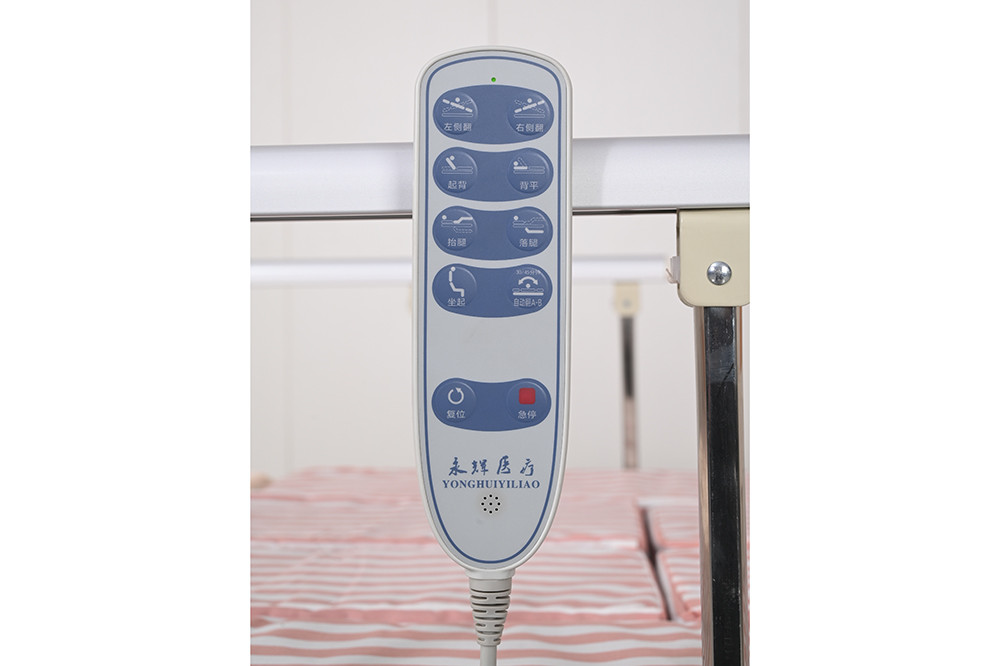

Handle luminous function
Lightly tap any function key, and all the lights on the controller's function keys will turn on, making it convenient for users to use at night.
-
Aluminum alloy guardrail
-
The total length of the side guardrail is 1150mm, with D-shaped aluminum alloy handrails, surface hardening treatment, and 5 stainless steel guardrail pillars. The upper and lower connecting parts are made of one-time stamped steel parts with a thickness of 2.5mm. The switch is carefully designed to ensure long-term safety. It is equipped with anti loosening fasteners, wear-resistant, non deformable, and can be contracted flat. When contracted, it is slightly higher than the bed surface to prevent the mattress from shifting.
-
-
Bedhead and tailboard
- Made of ABS engineering plastic, with wood grain color embellished in the middle, blow molded in one go using a mold, resistant to fading, aging, corrosion, and easy to clean. Install transparent medical record cards on the bed tail board. The head and tail of the bed can be freely disassembled without the use of any tools.
-
Mobile silent casters
- Convenient for free movement; At the same time, it is equipped with a brake device to fix the bed, with a diameter of 12cm for moving casters, built-in double bearings, and a fork made of a cold plate 2.5mm (thickness) stamped in one go. The tire surface is soft.

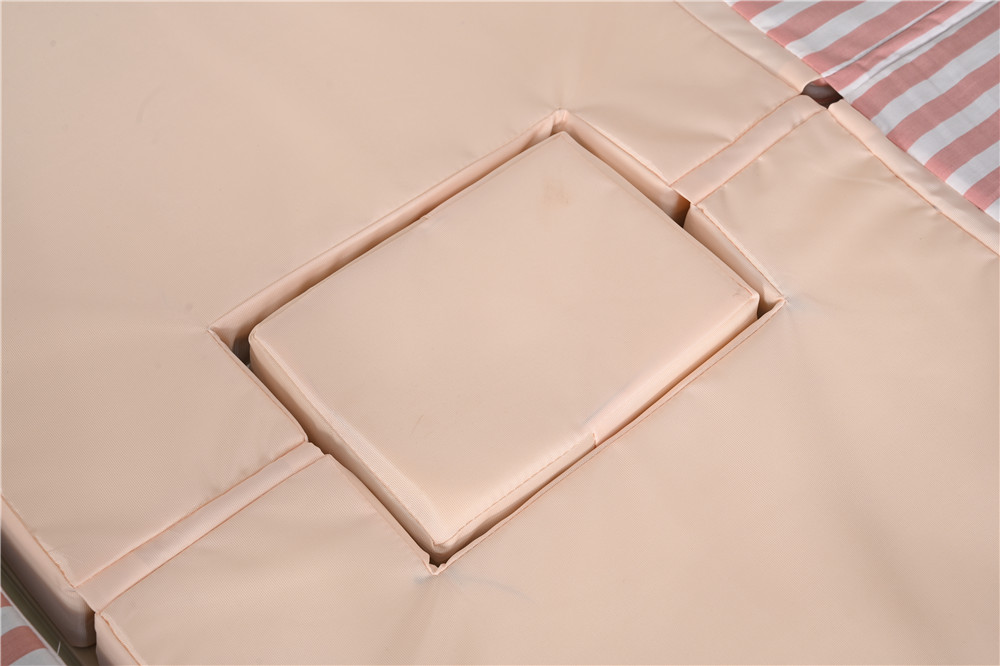

1-second quick access door

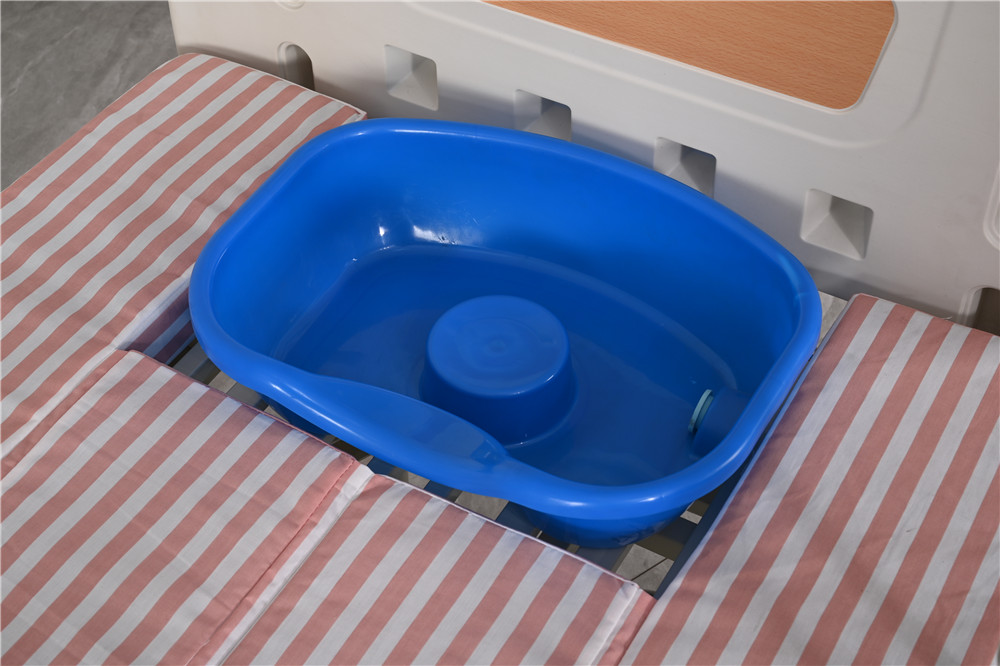

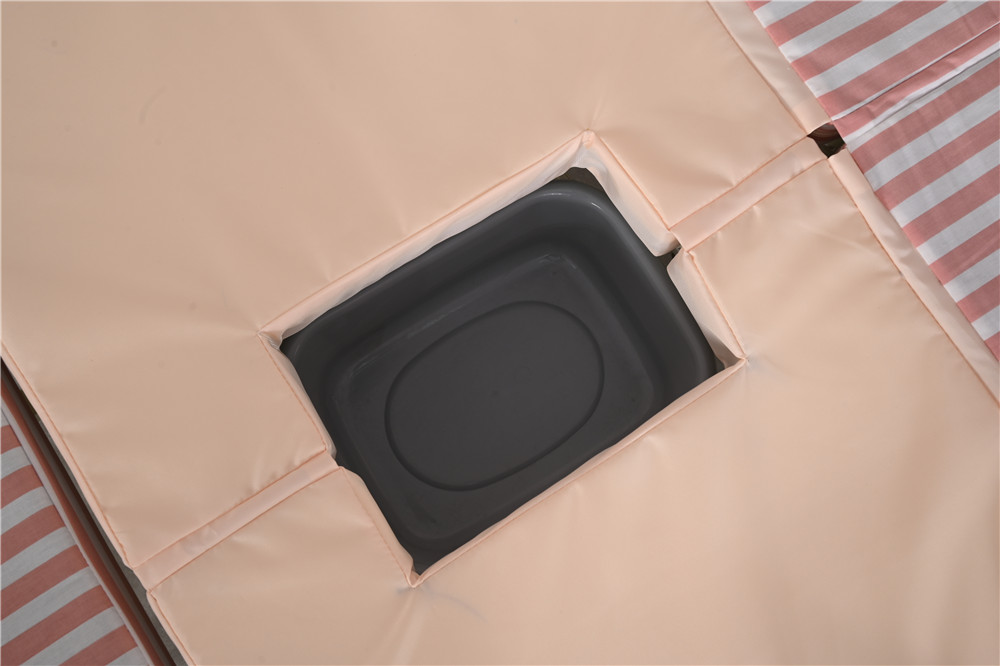

The load-bearing material of the access door adopts a solid steel rod with a diameter of 20mm, which effectively supports the strength of the buttocks and ensures that there will be no sinking or non return during long-term use. The toilet seat mattress and toilet seat position are designed with adhesive, so there is no need to move the nursing staff when taking the toilet seat. With the quick toilet seat device, the toilet seat can be opened within 1 second, achieving true zero waiting. And equipped with an adjustable height device, if the toilet seat sinks during use, it can be self adjusted to restore to its original position. The load-bearing plate of the container below the toilet seat is made of a 1.2mm thick steel plate that is stamped and formed in one go, ensuring overall safety and reliability.
