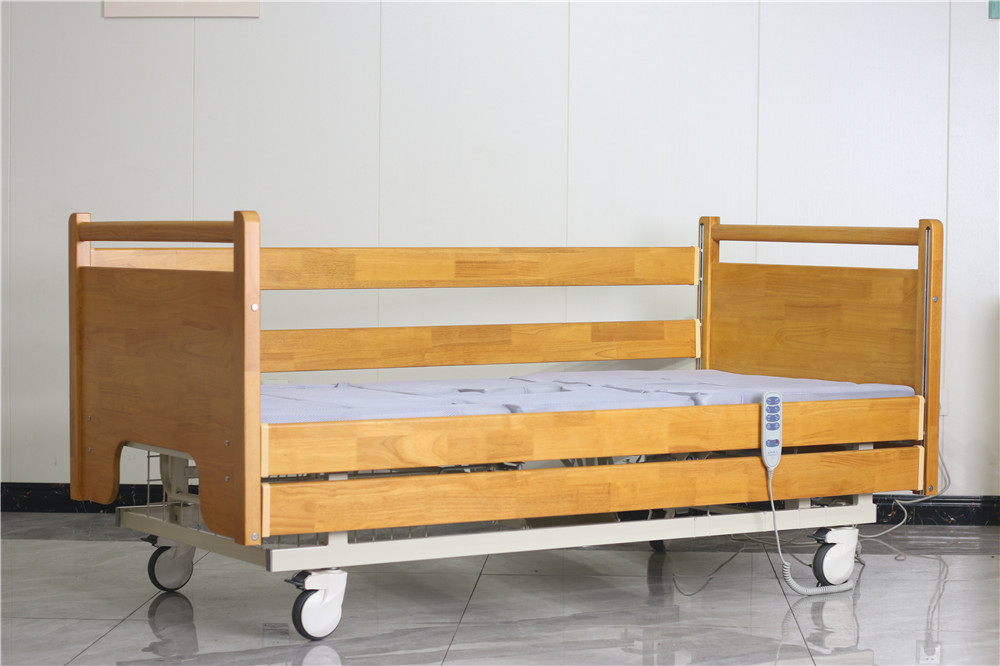

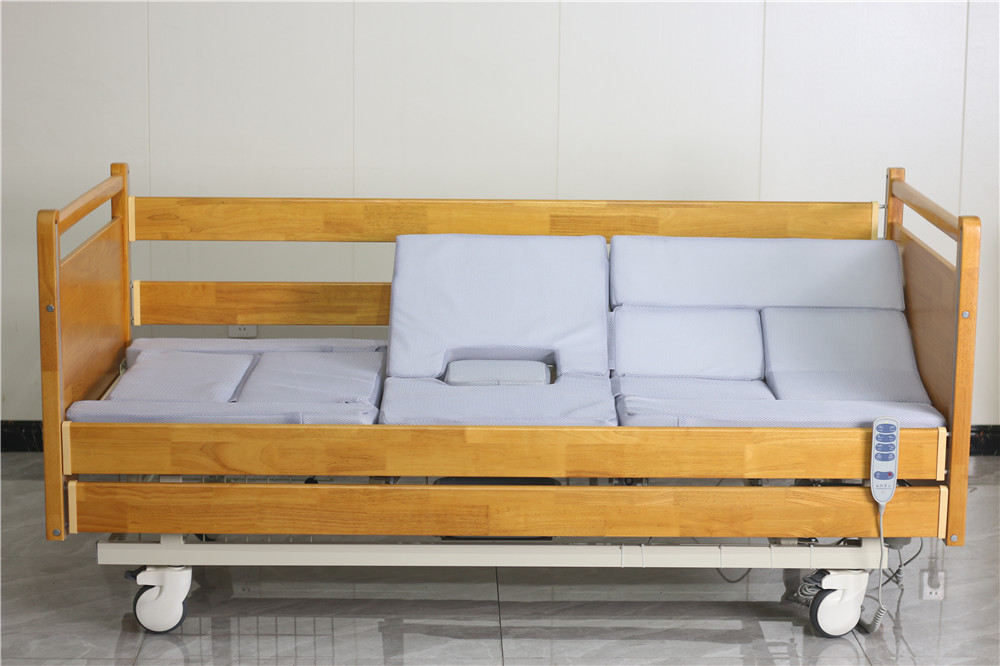

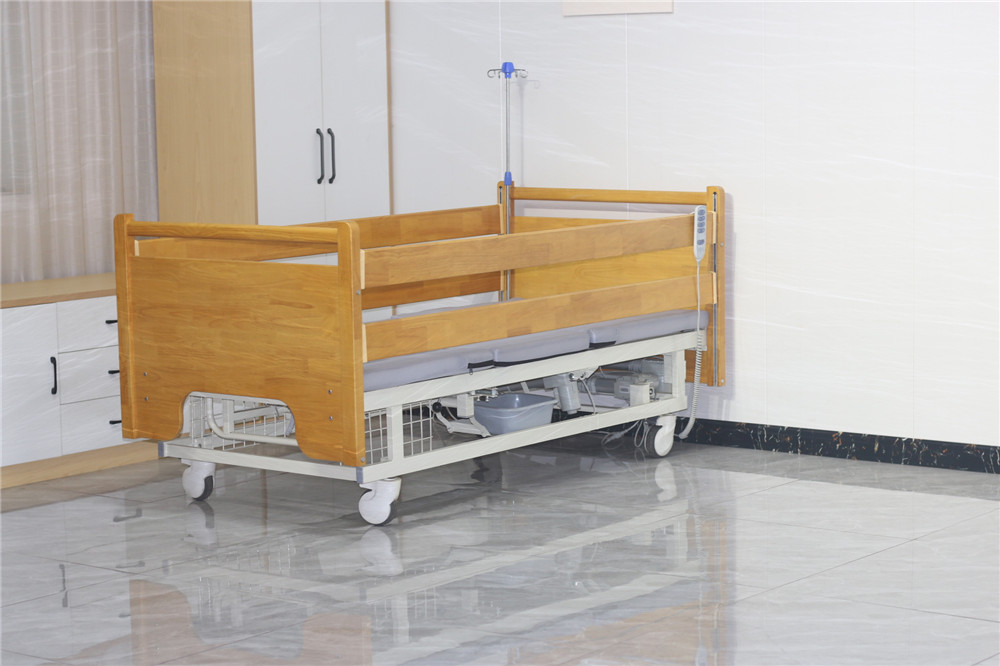

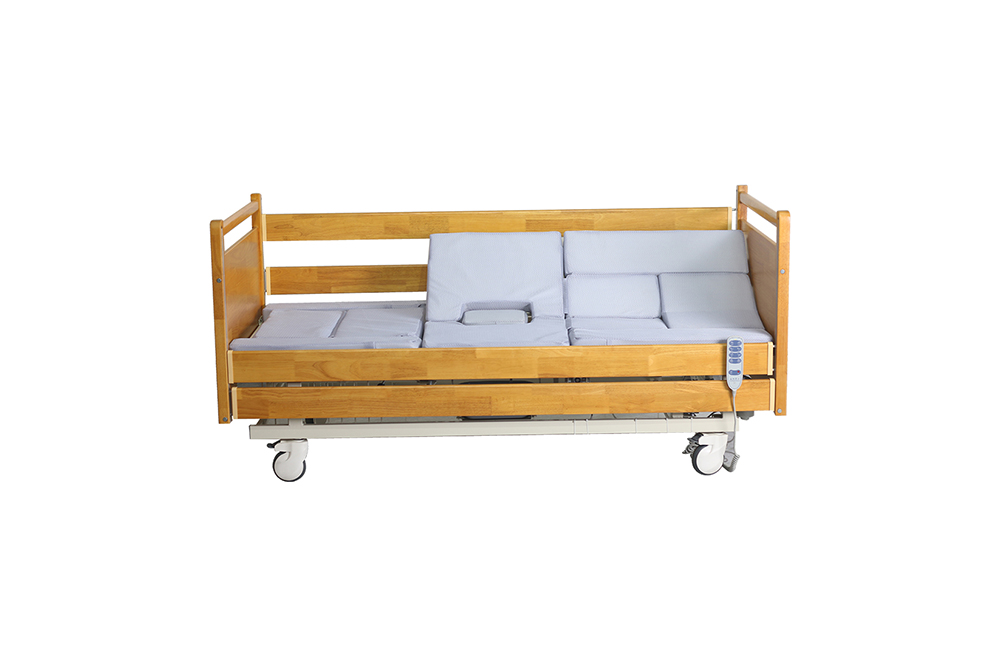

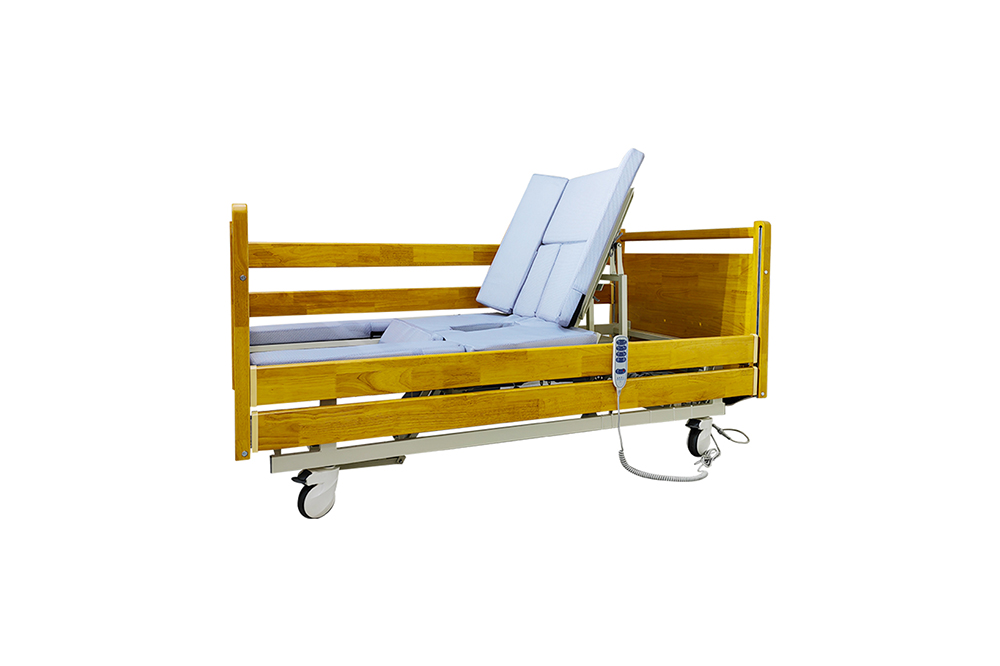

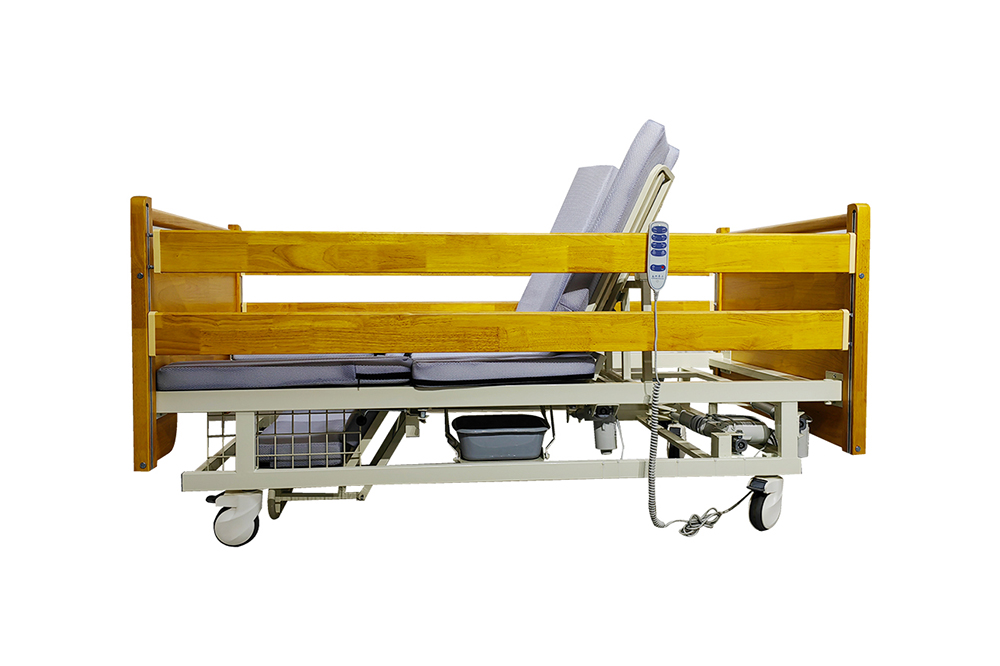

Quality choice, flashlight dual-use home turning care bed
| Product Name | Dual use flashlight home turning care bed |
| key word | Multi functional nursing bed |
| Model | DH08 |
| size | Dimensions: Length 2020 * Width 1030 * Height 510mm (including mattress) Inner diameter dimensions: length 1960 * width 900 * height 450mm (excluding mattress) Toilet hole size: length 310 * width 220mm |
| function | 5 functions |
| Bedhead and Bedend | Solid wood (rubberwood) |
| Work load | 240 kilograms |
| Timed turnover period | 30 minutes or 45 minutes |
| Control method | Electric, manual |
| Caster wheels | Silent casters |
| Specific purpose | Flip over nursing bed |
| colour | Standard or customized |
| OEM/ODM | accept |
| Minimum order quantity | 1 set |
01
Welding process
The bed frame and bed surface are laid flat and fully welded by robots, with reliable welding and smooth and sturdy welding joints.
Bed spraying process
The entire bed is treated with steel shot sandblasting, rust removal, and electrostatic powder coating. The bed coating adopts antibacterial coating, which is resistant to bacteria, bacteria, acid and alkali corrosion, and discoloration, effectively extending the service life
Manual operation
Even in the event of a power outage, users can still manually operate various nursing functions without worrying about the nursing difficulties caused by the power outage.
02
Manual operation
Even in the event of a power outage, users can still manually operate various nursing functions without worrying about the nursing difficulties caused by the power outage.
One click sit up

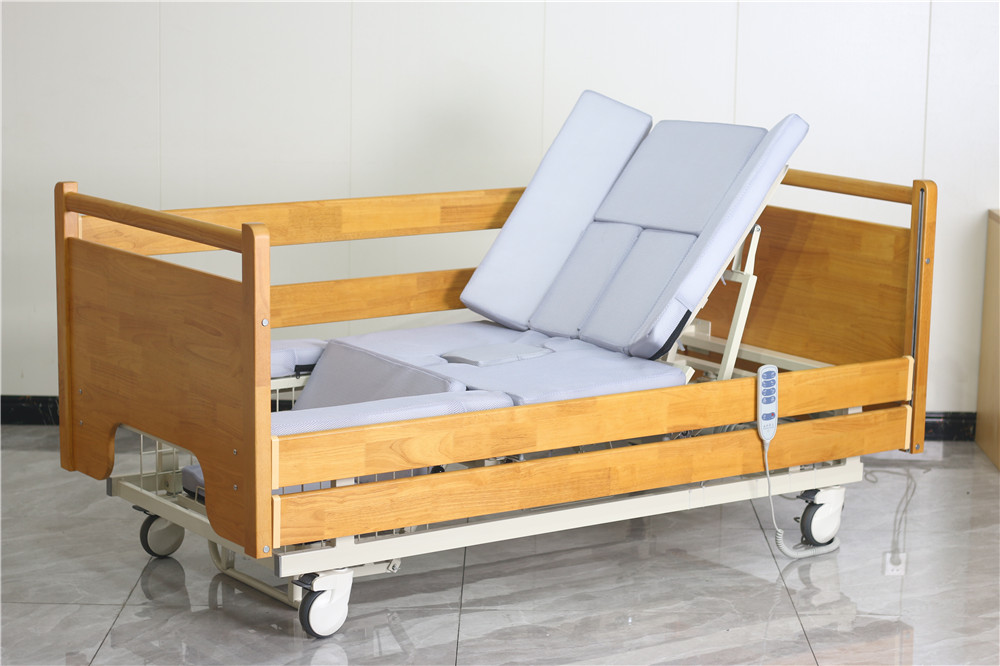

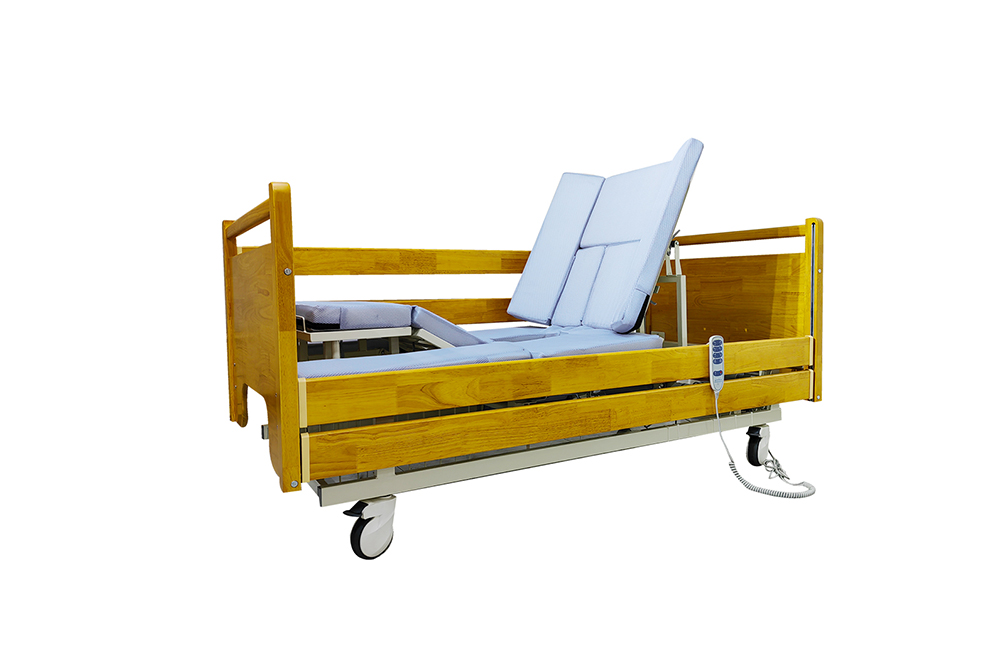

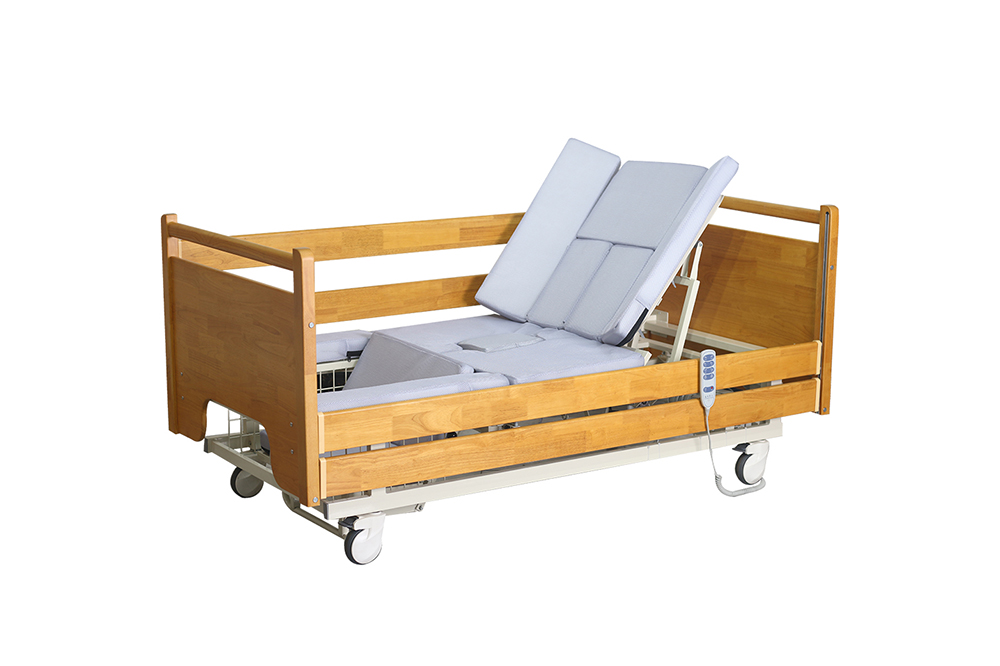

Just press a button lightly to achieve linkage between the back and leg boards. The back slowly rises, the legs naturally descend, and the bed surface instantly becomes a sitting state, which is extremely convenient.
Back up anti slip
When the back is raised, it can effectively prevent the elderly from tilting. The overall solid wood guardrail with anti slip function greatly enhances the safety of bedridden elderly people, and the operation process is both safe and convenient.
03
Adjustment range

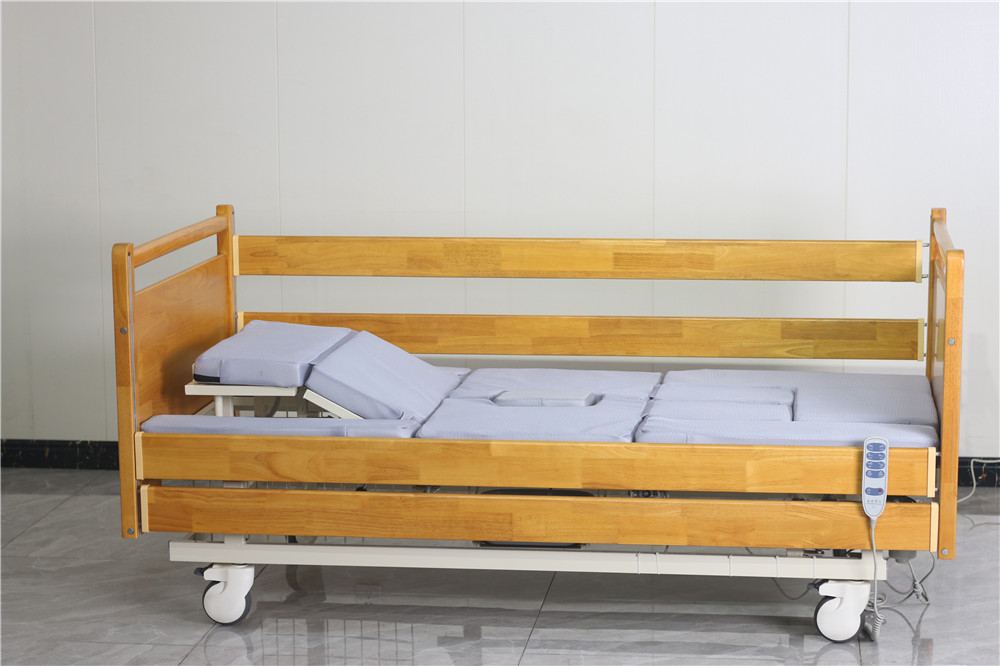

The back lifting angle is between 0-70 degrees; The leg lifting angle is+20 ° to -50 °; The lifting angle of the side flip can reach 0-45 °.
One click reset
By clicking the reset function button, the nursing bed can quickly return to a lying down state without the need to sequentially restore various functional states, greatly simplifying the operation process and effectively avoiding improper operation caused by accidental touch.
04
Emergency stop function
To cope with special situations that may arise from improper user operation, the remote control handle is specially equipped with an emergency stop button. Once a special situation occurs, press the "emergency stop" function button to immediately stop all functions. After the unexpected release, the operation can continue.
Handle luminous
Gently clicking on any function key will turn on all the lights on the controller, providing great convenience for users to use at night.
-
Guardrail
-
The guardrail is made of high-quality solid wood throughout, with a sturdy material and a heavy style. Not only is it easy to operate, but it is also easy to clean, environmentally friendly and odorless. Even with long-term use, there will be no paint peeling or peeling. The guardrail lifting adopts aluminum alloy sliding track, matched with high-quality hardware accessories, with a long service life, smooth and safe lifting process.
-
-
Bedhead and Bedend
- The material of the columns and crossbars is solid wood (rubber wood), which is sturdy, lightweight, easy to clean, environmentally friendly and odorless. Long term use will not cause problems such as paint peeling or peeling. There is a wooden crossbar at the top of the bed head and tail, which is convenient for the elderly to use as a support pole.
-
Mobile silent wheels
- Select 5-inch high-end casters with built-in fully enclosed self-lubricating bearings, no need for oil maintenance, and can prevent foreign objects from getting involved. Equipped with independent brakes, the wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise free, making it easy, smooth and fast to move.
01
Raw material cutting
2018-07-16
01
Raw material discharging
2018-07-16
01
Machining (bending, punching, touching arc, shrinking)
2018-07-16
01
Welding
2018-07-16
01
Polishing
2018-07-16
01
Spraying
2018-07-16
01
Assembling and debugging
2018-07-16
01
Finished product inspection
2018-07-16
