Multi functional turning nursing bed, ushering in a new era of convenient care

Material Science
1）Pipe selection:

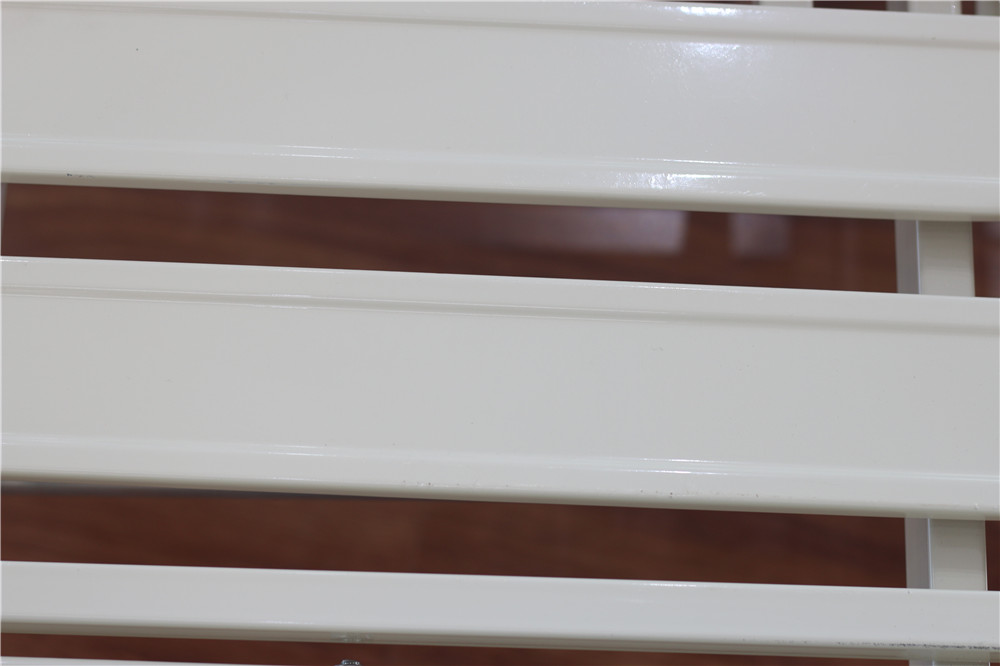

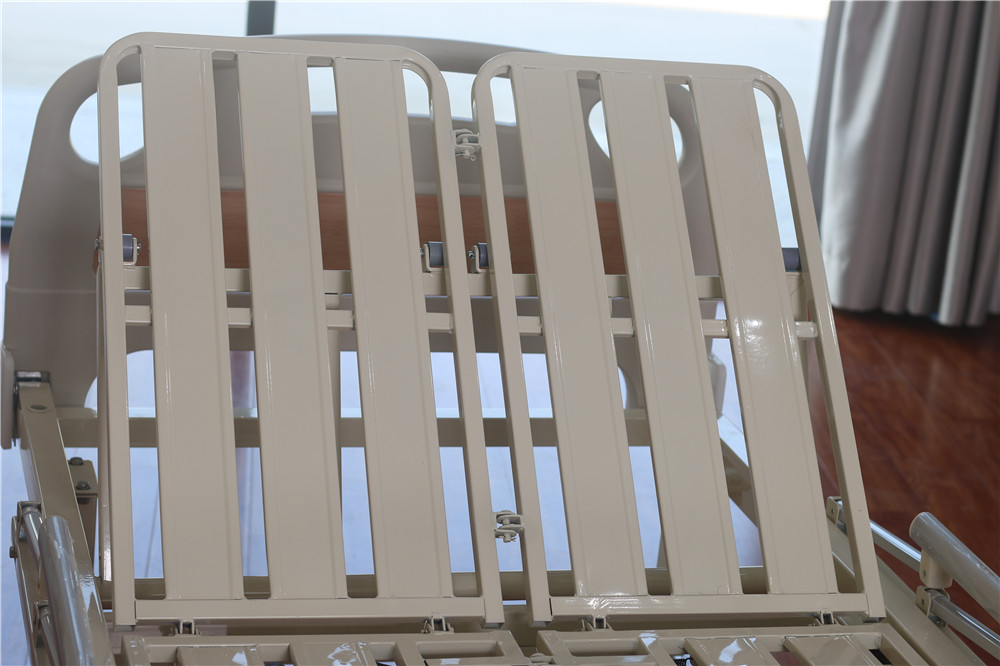

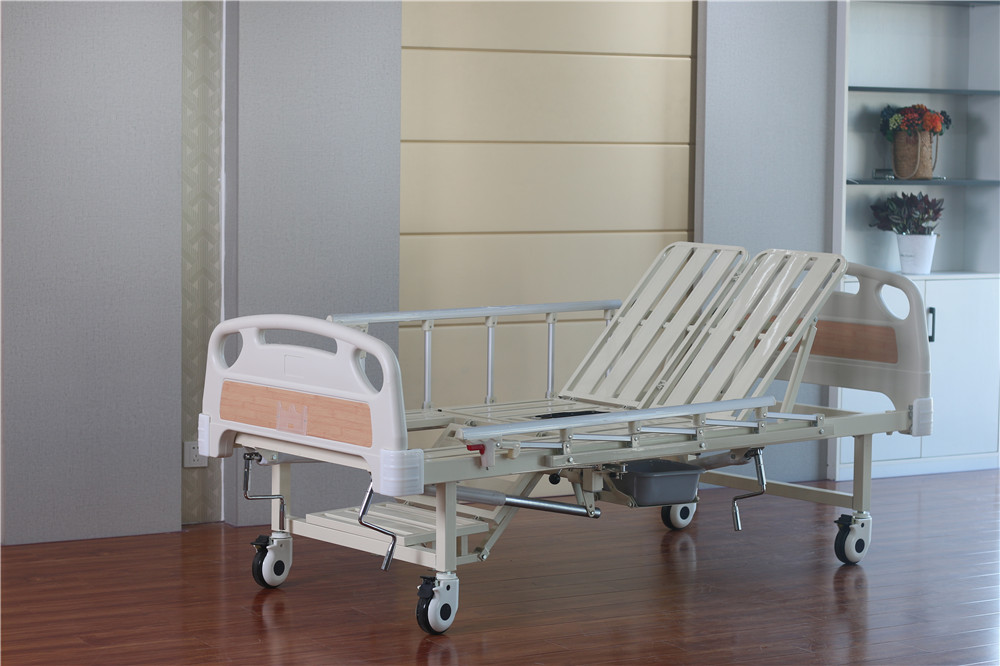

The bed frame is made of 40 × 60 square tubes with a thickness of 1.0mm, which are sturdy and stable. The bed surface is formed by welding 0.8mm thick C-shaped plates to ensure the flatness and strength of the bed surface. The bed body connectors are all made of thick walled pipes with a thickness of 2.75mm or more or 3mm cold plates stamped and formed, further enhancing the overall firmness of the bed body.

2）Exquisite welding technology
The bed frame and bed surface are fully welded using robots, and the welding joints are extremely reliable. The surface is smooth and flat, which is not only sturdy and durable, but also demonstrates a high level of craftsmanship.

3）Advanced bed spraying technology
The surface of the bed is first treated with steel shot sandblasting to remove surface impurities and rust, laying a solid foundation for subsequent electrostatic spraying. The bed body coated with anti-static powder by electrostatic spraying has excellent characteristics of acid and alkali corrosion resistance and fading resistance, which can maintain the beauty and performance of the bed body for a long time.

product details

Product Parameters

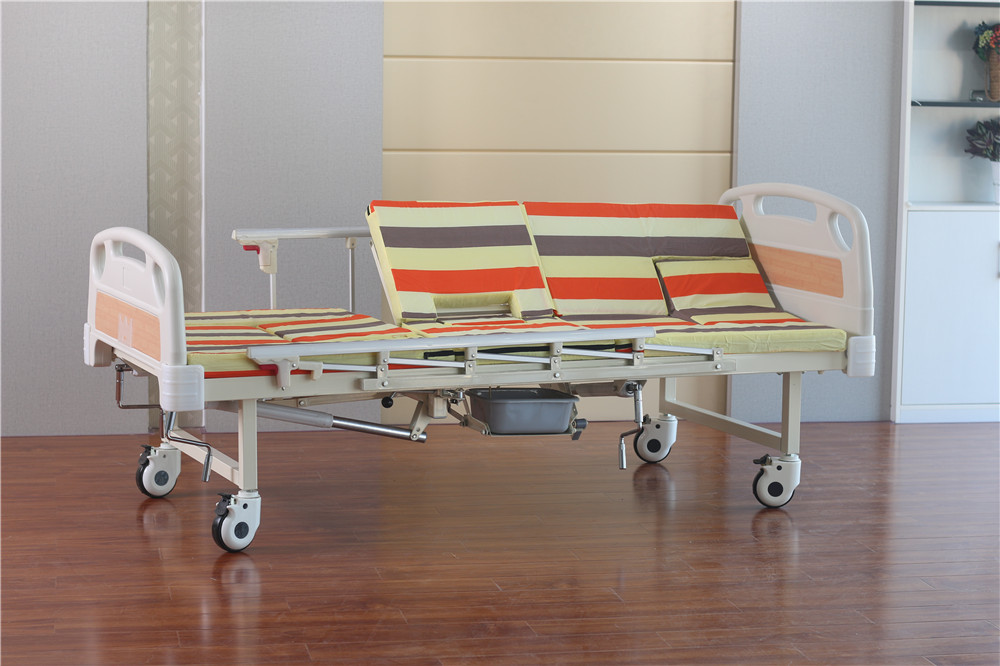

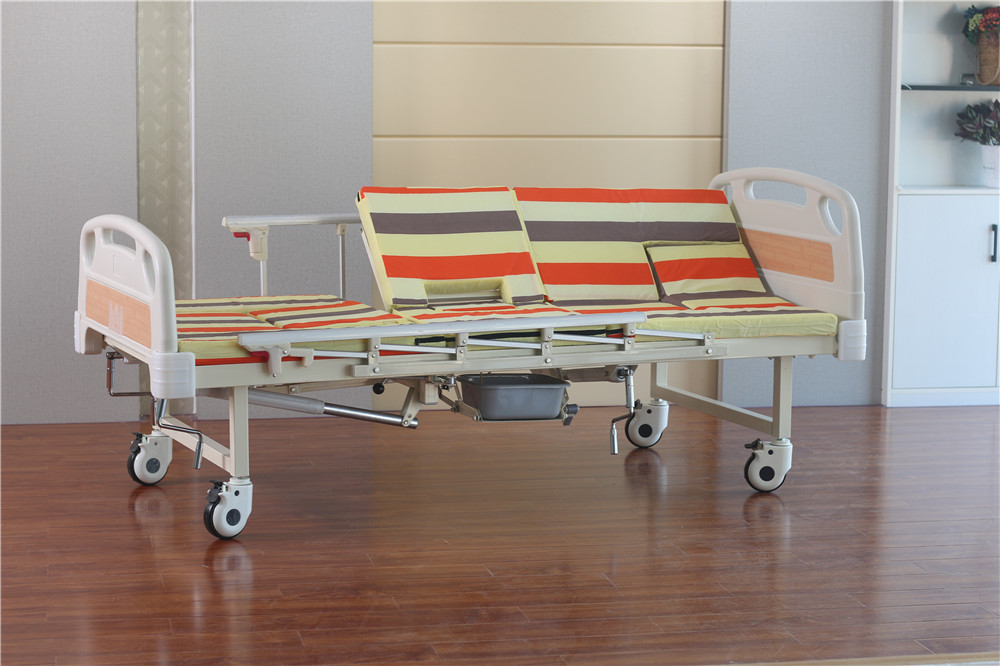

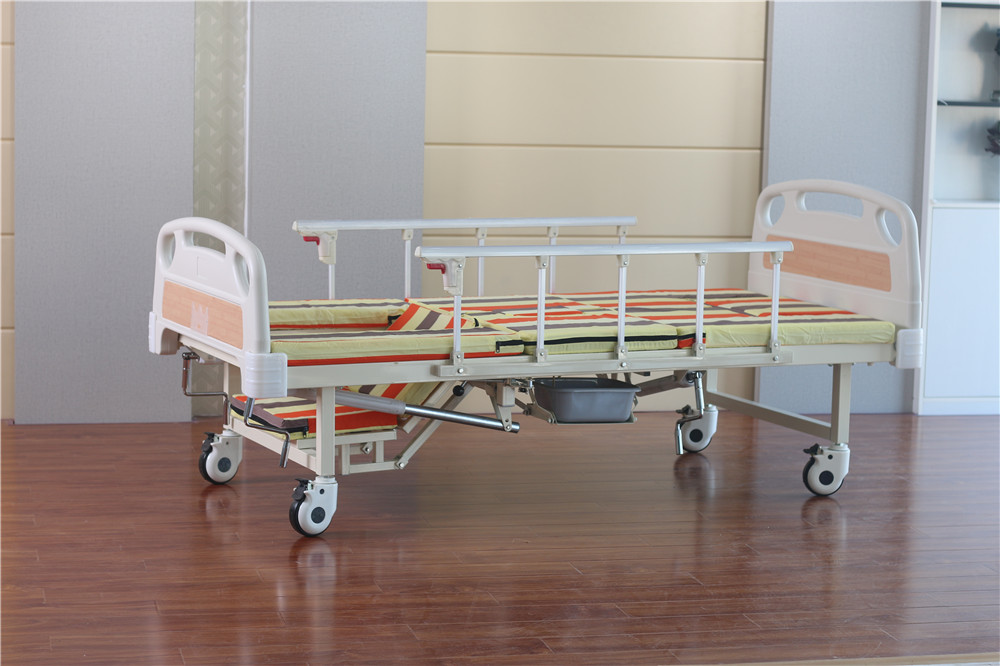

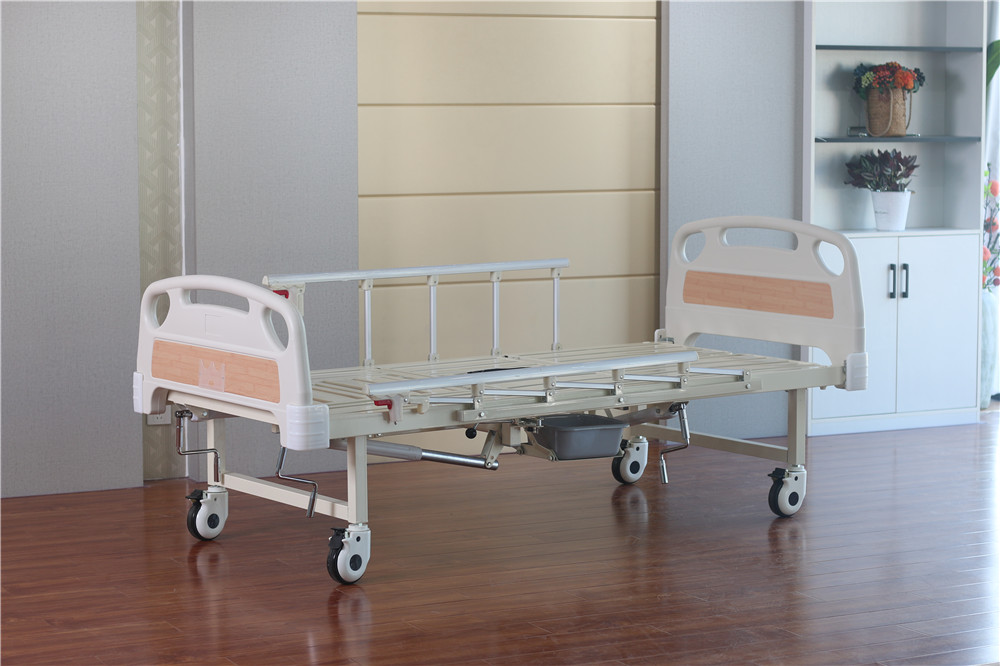

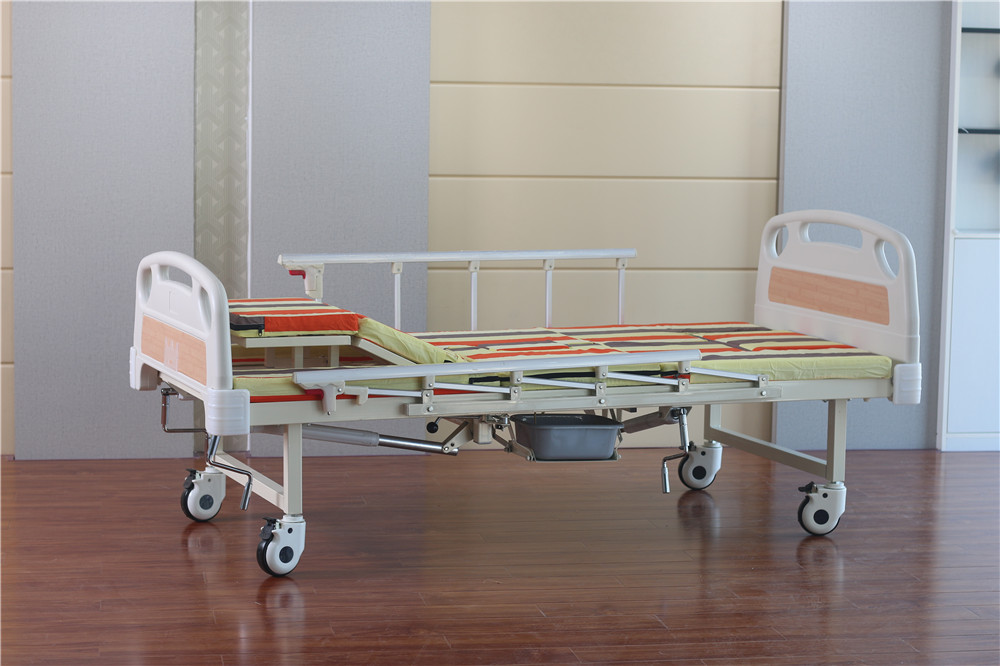

Product Name	Multi functional turning nursing bed
key word	Multi functional turning nursing bed
Model	C08-5
size	Dimensions: Length 2100 * Width 960 * Height 520mm (including mattress) Inner diameter dimensions: length 2000 * width 900 * height 460mm (excluding mattress) Toilet hole size: length 310 * width 220mm
function	5 functions
Bedhead and Bedend	ABS engineering plastic
Work load	240 kilograms
Timed turnover period
Control method	Manual
Caster wheels	Mobile silent casters
Specific purpose	Bed care bed
colour	Standard or customized
OEM/ODM	accept
Minimum order quantity	1 set

Product Details

Shake handle

The number of shakes is three. Among them, there is a handle for manually turning left and right, a handle for manually lifting back, a handle for manually lifting leg position, and a quick wrench for seat and toilet conversion, making operation convenient and efficient.

Adjustment range

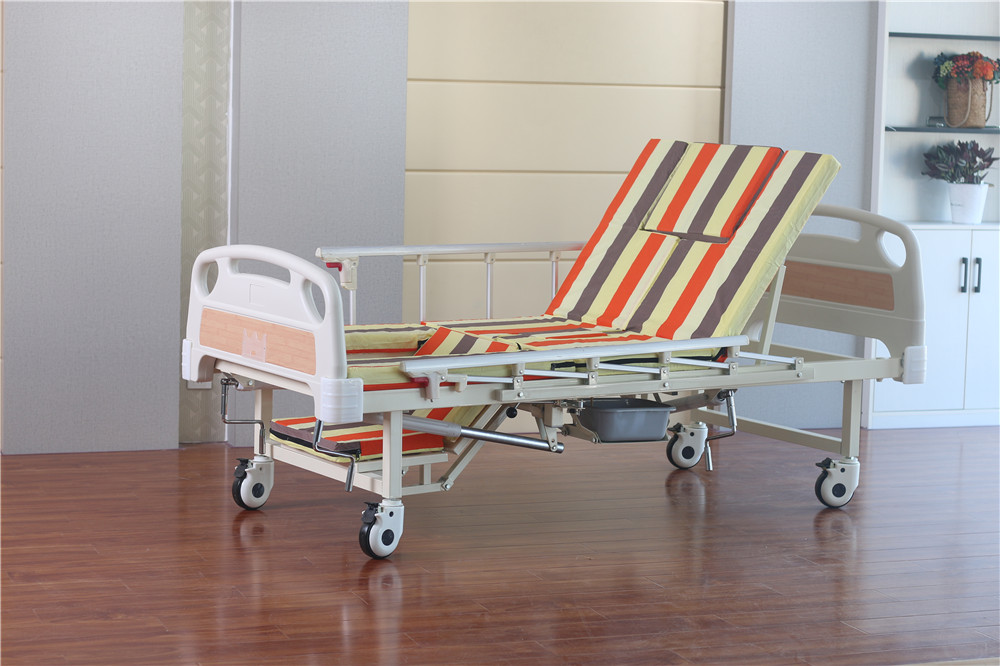

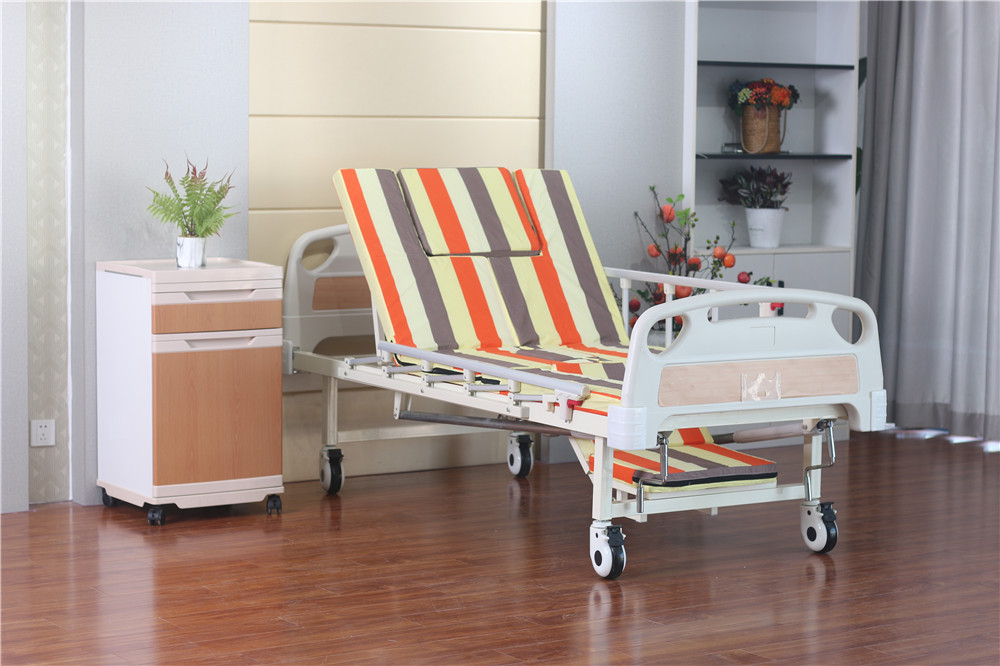

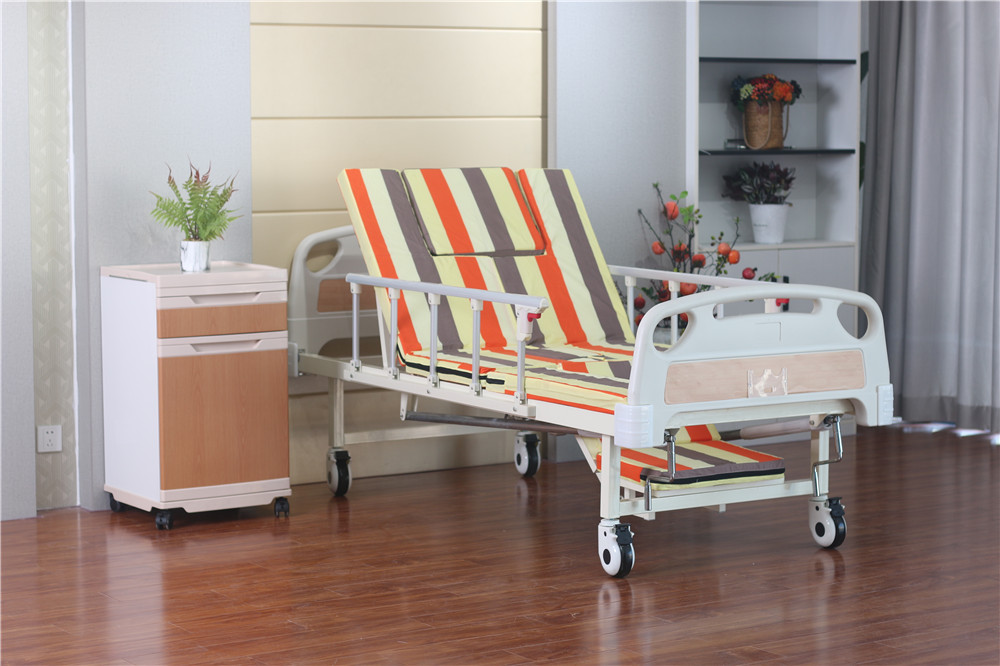

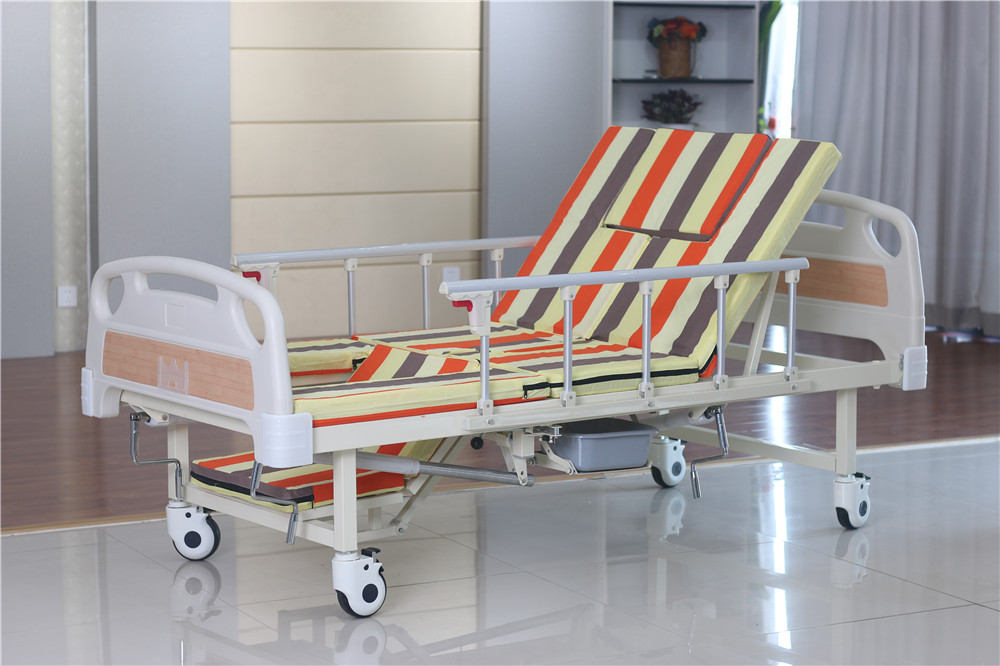

The back can be raised and lowered between 0-70 degrees to meet different sitting and lying needs; The leg position can be adjusted from+20 ° to -50 °, suitable for various leg posture adjustments; The side flip can be raised and lowered by an angle of 0-45 degrees.

Shake handle design

Adopting a metal spiral design, the surface of the handle is electroplated, which not only looks beautiful but also foldable, sturdy and practical.

Joystick performance

The rocker spring box is made of steel and has the characteristic of anti rupture. At the same time, it has high support and wear resistance, making it safe and reliable. Easy to use without noise, ensuring smooth operation, and also comes with a dust cover.

product advantage

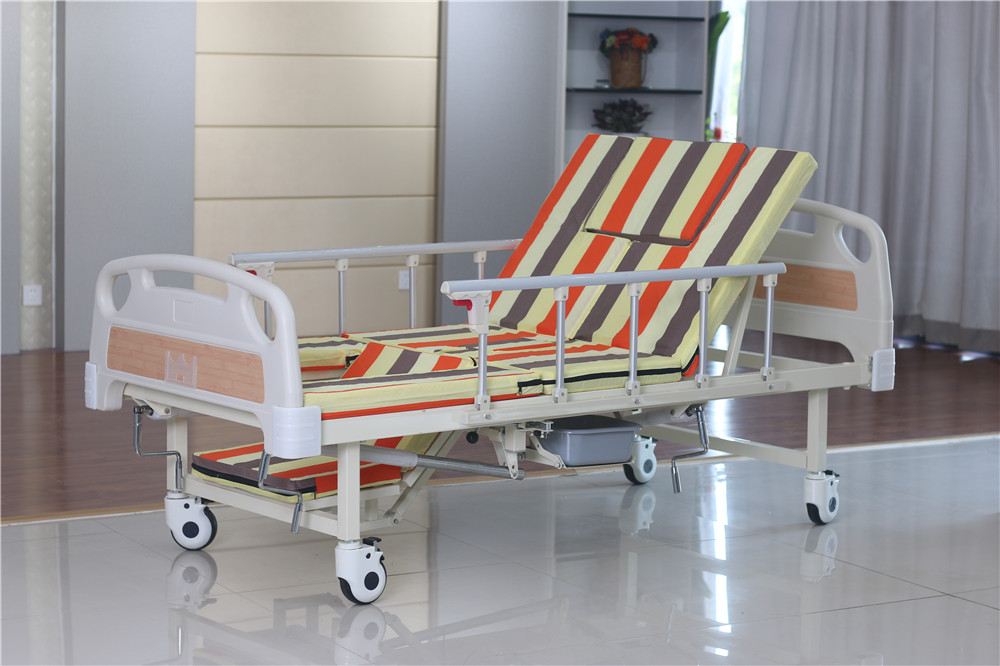

Aluminum alloy guardrail
- The total length of the side guardrail is 1150mm, and it is a D-type aluminum alloy handrail with a hardened surface treatment. Equipped with 5 aluminum alloy guardrail pillars, the connecting pieces are one-time formed parts with a thickness of 2.5mm. The switch is carefully designed to ensure long-term safety. It is also equipped with anti loosening fasteners, which are wear-resistant and non deformable, and can be shrunk and placed flat. When contracted, it is slightly higher than the bed surface, which can effectively prevent the mattress from shifting.
01
Bedhead and tailboard
- Made of ABS engineering plastic with wood grain color accents in the middle, blow molded in one go using a mold. It has the advantages of fade resistance, aging resistance, and corrosion resistance, and is easy to clean. There is a transparent medical record card installed on the bed tail board. The head and tail of the bed can be freely disassembled without the need for any tools, making it convenient and practical.
02
Mobile silent wheels
- Easy to move freely, and equipped with a brake device to fix the bed. Mobile casters with a diameter of 12cm and built-in double bearings. The fork is formed by one-time stamping with a cold plate thickness of 2.5mm, and the tire surface is soft, which moves smoothly and quietly.
03

Mattress

The outer layer of the mattress cover is made of pure cotton fabric, which feels comfortable and soft. The inner liner is made of 4cm brown silk and 2cm sponge, which has good resilience and has been treated with insect repellent. It will not deform after long-term use and has good breathability.

1-second quick access door:

The load-bearing material of the access door is a solid steel rod with a diameter of 20 millimeters, which can effectively support the strength of the buttocks and ensure that there will be no sinking or non return during long-term use. The mattress at the toilet seat is designed to be bonded to the toilet seat, so there is no need to move the nursing staff or remove the mattress when receiving the toilet. Combined with a quick access device, the toilet can be opened in just 1 second, truly achieving zero waiting. In addition, it is equipped with an adjustable height device. If the mouth sinks during use, it can be self adjusted to restore it to its original position. The load-bearing plate of the container below the toilet seat is made of a 1.2mm thick steel plate that is stamped and formed in one go, ensuring overall safety and reliability.
