Multi functional turning care bed, the choice of quality, the trust of peace of mind
| Product Name | Manual multifunctional turning nursing bed |
| key word | Multi functional turning nursing bed |
| Model | C06-1 |
| size | Dimensions: Length 2050 * Width 960 * Height 560mm (including mattress) Inner diameter dimensions: length 1950 * width 900 * height 500mm (excluding mattress) Toilet hole size: length 310 * width 220mm |
| function | 5 functions |
| Bedhead and Bedend | ABS engineering plastic |
| Work load | 240 kilograms |
| Timed turnover period | |
| Control method | Manual |
| Caster wheels | Mobile silent casters |
| Specific purpose | Bed care bed |
| colour | Standard or customized |
| OEM/ODM | accept |
| Minimum order quantity | 1 set |
01
Adjustment range

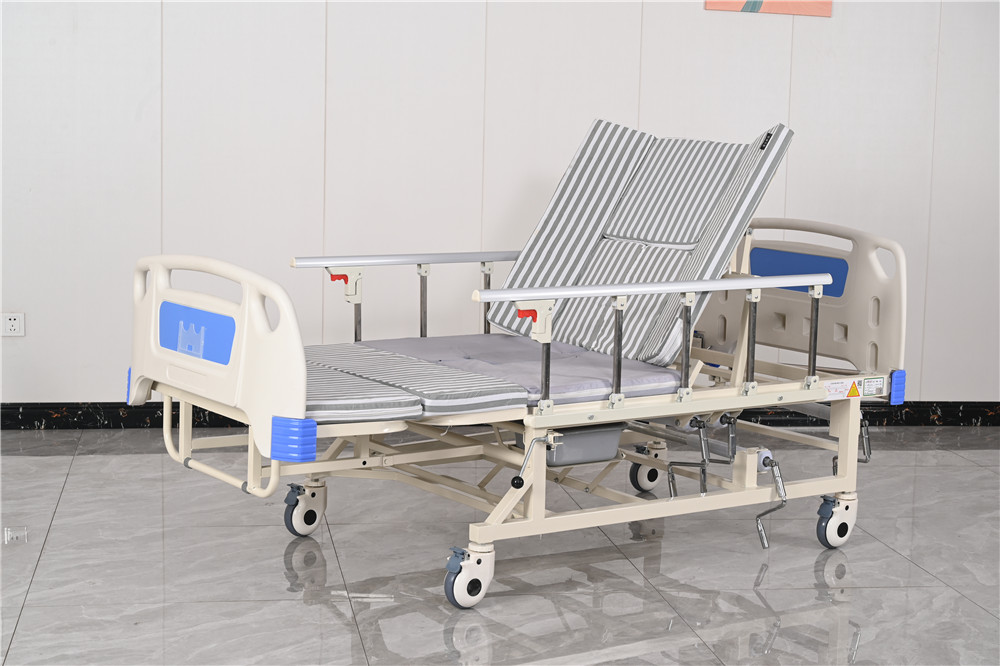

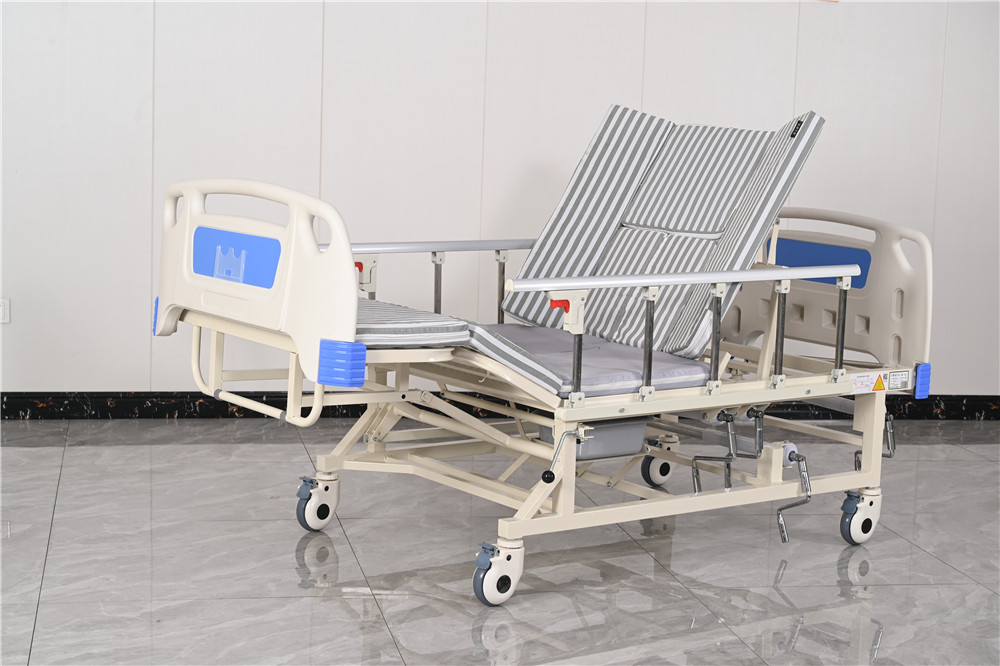

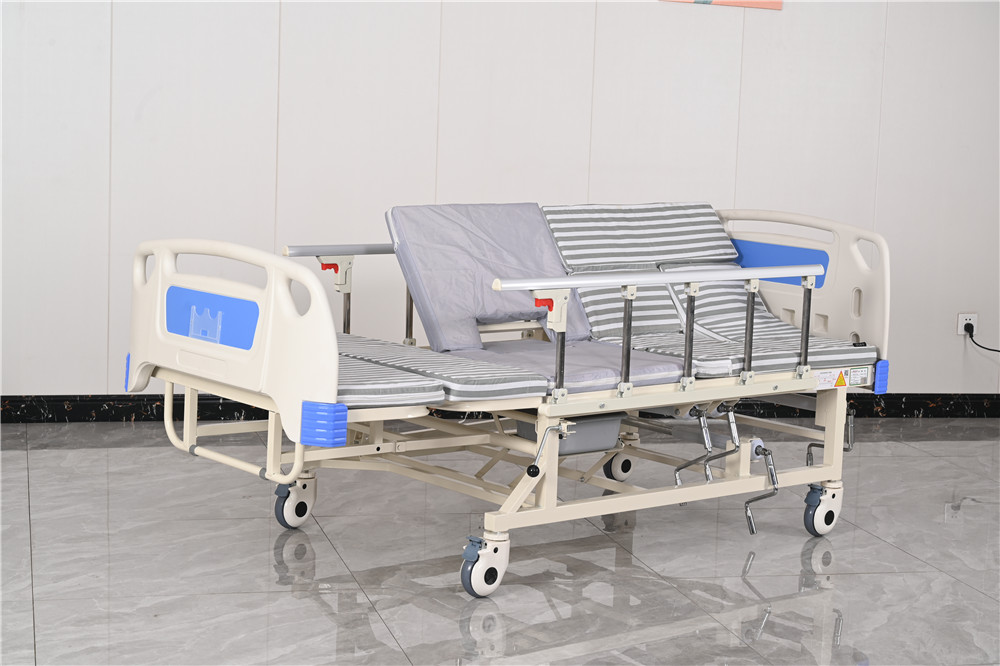

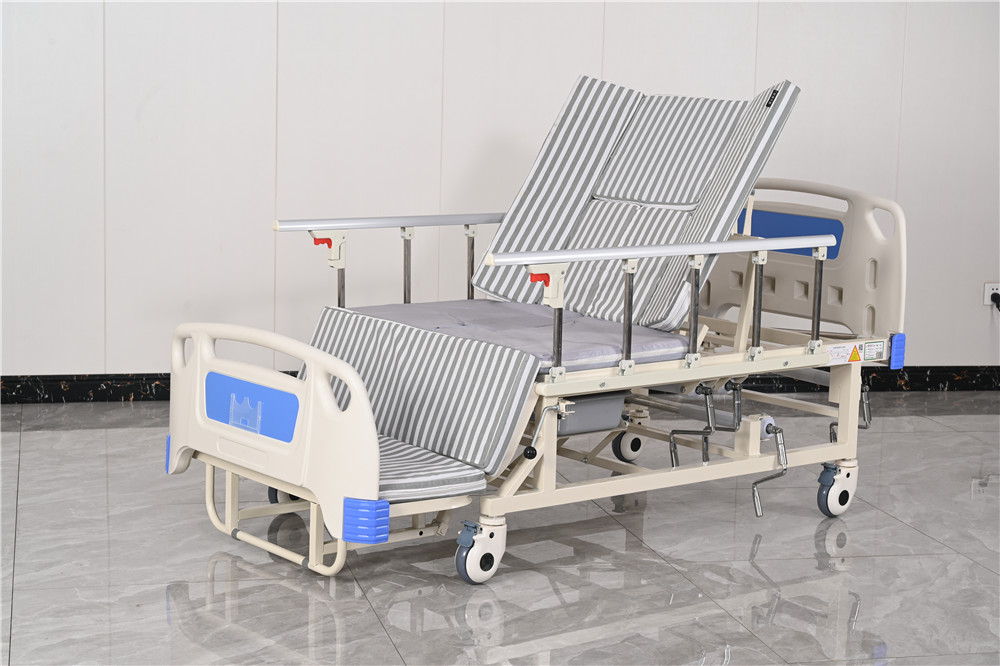

The back can be raised and lowered between 0-70 degrees to meet different sitting and lying needs; The leg position can be adjusted from+20 ° to -65 °, suitable for various leg posture adjustments; The adjustable angle for side turning is 0-45 °.
02
Back up anti slip function
As the sitting angle of the human body increases, the bed boards on both sides will move inward in a semi enclosed form, effectively preventing the caregiver from tilting towards both sides and greatly improving safety.
03
Shake the handle
Adopting a metal spiral design, the surface of the handle is electroplated, which is not only beautiful but also foldable, sturdy and practical-
Joystick
-
The joystick has a bidirectional over shake protection device, so there is no need to worry about damage due to over shaking, greatly increasing its service life. The rocker spring box is made of steel, anti cracking, with high support force and wear resistance, safe and reliable, easy to use without noise, ensuring smooth operation, and also comes with a dust cover.
-
-
Aluminum alloy guardrail
- The total length of the side guardrail is 1150mm, and it is a D-type aluminum alloy handrail with a hardened surface treatment. Equipped with 5 stainless steel guardrail pillars, the upper and lower connectors are made of one-time stamped steel parts with a thickness of 2.5mm. The switch is carefully designed to ensure long-term safety, and is also equipped with anti loosening fasteners that are wear-resistant and non deformable. It can be retracted and placed flat, slightly higher than the bed surface when retracted, to prevent the mattress from shifting.
Bedhead and tailboard
Made of ABS engineering plastic with blue accents in the middle, blow molded in one go using a mold, resistant to fading, aging, corrosion, and easy to clean. The bed tail board is equipped with transparent medical record cards, and the head and tail of the bed can be freely disassembled without the use of any tools, making it convenient and practical.
Mobile silent casters
Easy to move freely, and equipped with a brake device to fix the bed. The diameter of the mobile casters is 12cm, with built-in double bearings. The fork is made of a cold plate with a thickness of 2.5mm and stamped in one go. The tire surface is soft, ensuring smooth and quiet movement.
1-second quick access door

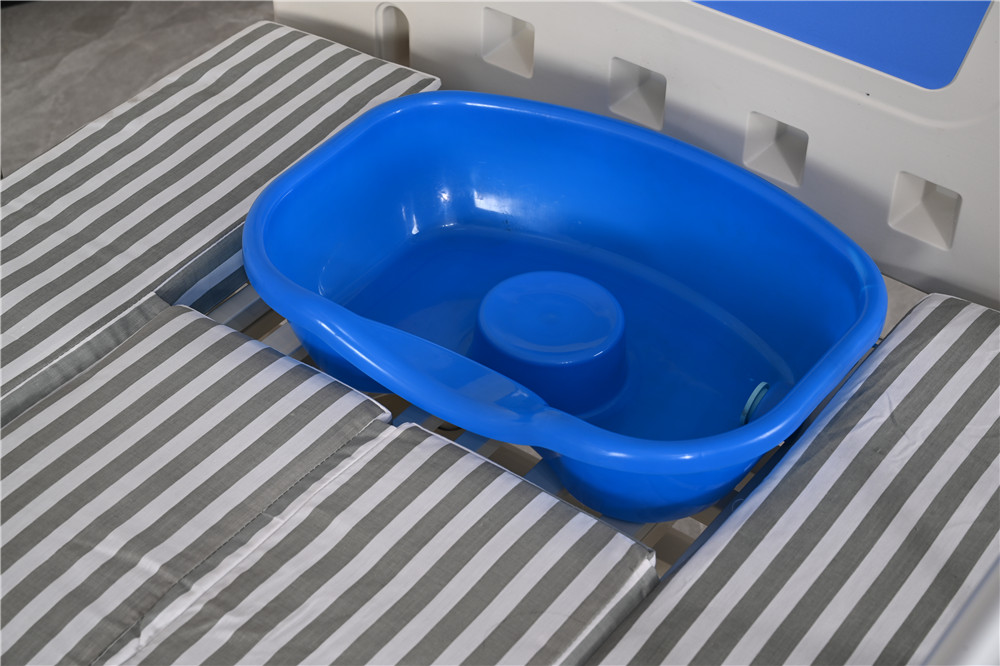

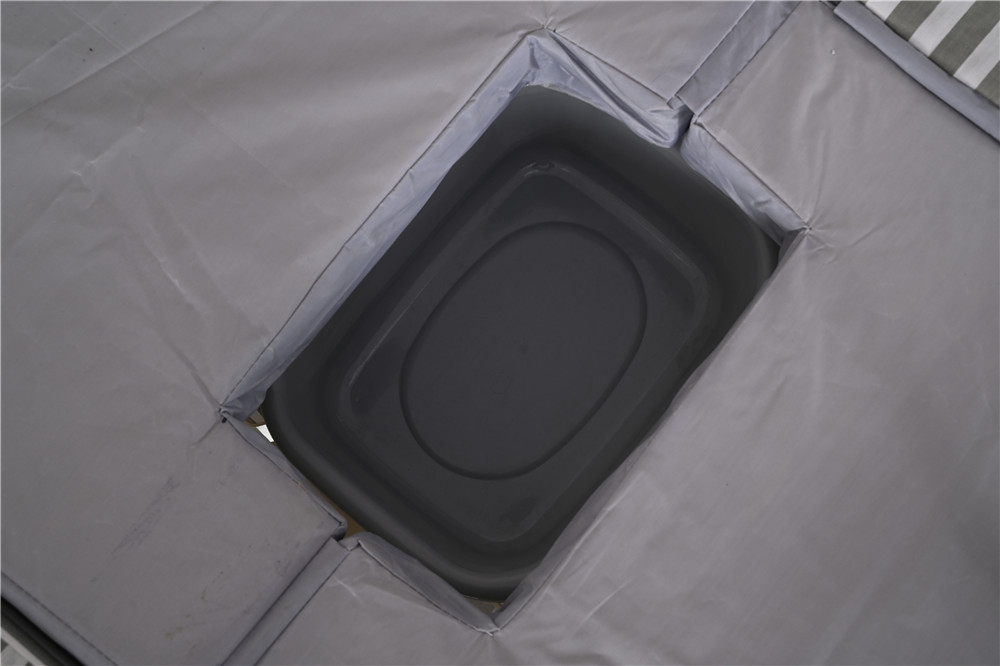

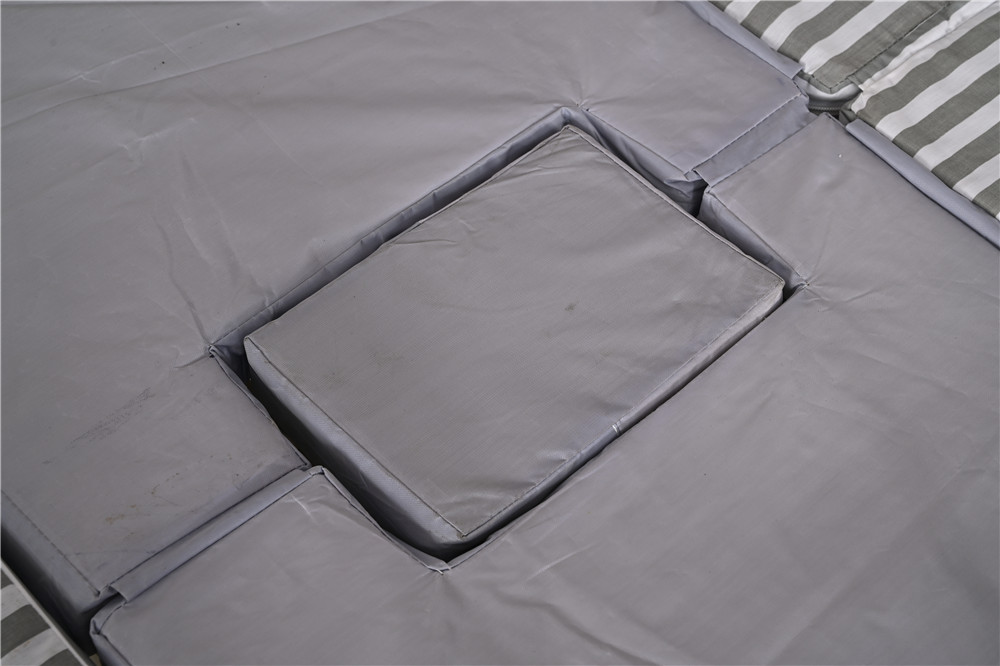

The load-bearing material of the access door is a solid steel rod with a diameter of 20mm, which can effectively support the strength of the buttocks and ensure that there will be no sinking or non return during long-term use. The toilet seat mattress and toilet seat position are designed with adhesive, so there is no need to move the nursing staff when taking the toilet seat, and the mattress can be removed. Combined with a quick access device, the toilet opening can be opened within 1 second, truly achieving zero waiting. It is also equipped with an adjustable height device. If the mouth sinks during use, it can be self adjusted to restore to its original position. The load-bearing plate of the container below the toilet seat is made of a 1.2mm thick steel plate that is stamped and formed in one go, ensuring overall safety and reliability.
Leg weight-bearing capacity
The supporting material adopts a circular tube with a diameter of 32mm and a thickness of 2.75mm, which can withstand a weight of 100 kilograms safely, reliably, and can be used for a long time without deformation.
Back lifting pulley design
Equipped with 4 widened pulleys, it avoids the noise and damage caused by friction between the bed bodies during long-term use, reduces frictional resistance, and alleviates the burden on nursing staff.
Left and right turning pulley design
The rotating pulley equipped for turning left and right can reduce frictional resistance and increase service life.
Rounded frame design
The rounded frame design is not only aesthetically pleasing, but also enhances the overall integrity of the frame and avoids scratching the bedding and mattress during use.

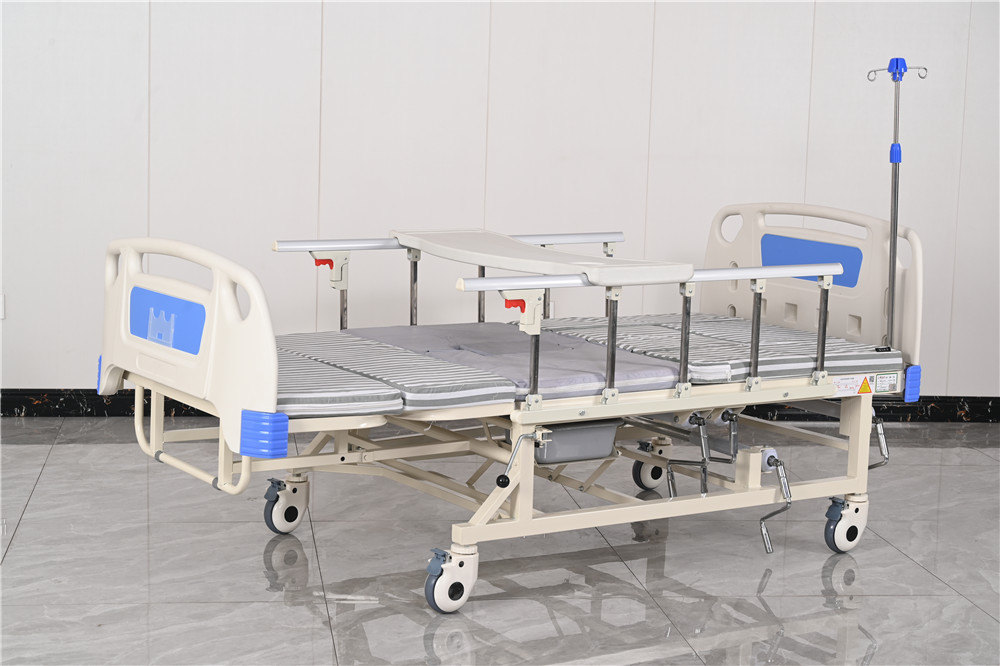

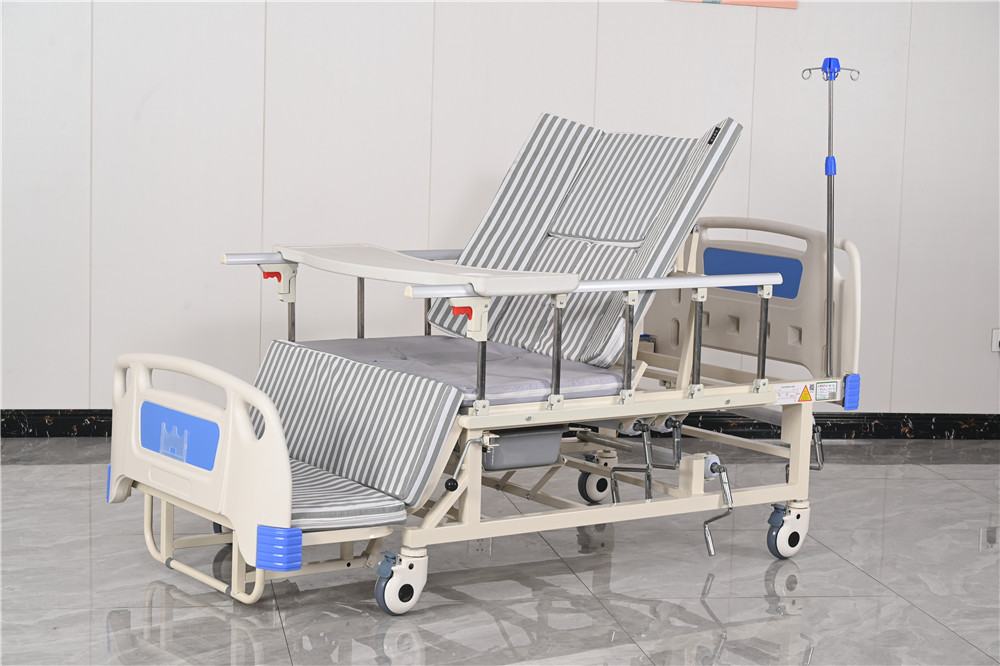

The infusion rack is a lifting type
The height can be adjusted according to user needs. The supervisor is made of high-quality stainless steel tube with four hooks, which can be used for multiple bottles of infusion at the same time. When not in use, it can be folded and stored at the bedside.
The legs are designed to touch the ground in a curved shape
When the legs come into contact with the ground, the bottom of the legs is equipped with gray nylon pads to avoid scratching the floor.
