Multi functional turning care bed, crafted with quality for comfortable care

Shake the handle
Adopting a metal spiral design, the handle surface is electroplated, foldable, sturdy and practical.

The rocker spring box is made of steel, anti cracking, with high support force, high wear resistance, safety and reliability, easy to use without noise, ensuring smooth use, and comes with a dust cover.

Aluminum alloy guardrail
The total length of the side guardrail is 1150mm, with D-shaped aluminum alloy handrails, surface hardening treatment, 5 aluminum alloy guardrail pillars, and the upper and lower connecting parts are made of one-time stamping forming parts with a thickness of 2.5mm. The switch is carefully designed to ensure long-term safety, equipped with anti loosening fasteners, wear-resistant, non deformable, and can be contracted flat. When contracted, it is slightly higher than the bed surface to prevent the mattress from shifting.

product details

Product Parameters

Product Name	Manual multifunctional turning nursing bed
key word	Multi functional turning nursing bed
Model	C08-1
size	Dimensions: Length 2100 * Width 960 * Height 520mm (including mattress) Inner diameter dimensions: length 2000 * width 900 * height 460mm (excluding mattress) Toilet hole size: length 310 * width 220mm
function	5 functions
Bedhead and Bedend	ABS engineering plastic
Work load	240 kilograms
Timed turnover period
Control method	Manual
Caster wheels	Mobile silent casters
Specific purpose	Bed care bed
colour	Standard or customized
OEM/ODM	accept
Minimum order quantity	1 set

Product Details

Bedhead and tailboard

Made of ABS engineering plastic, with wood grain color embellished in the middle, blow molded in one go using a mold. It is resistant to fading, aging, corrosion, and easy to clean. A transparent medical record card is installed on the bed tail board, and the head and tail of the bed can be freely disassembled without the use of any tools.

Mobile silent casters

Convenient for free movement; At the same time, it is equipped with a brake device to fix the bed, with a diameter of 12cm for moving casters, built-in double bearings, and a fork made of a cold plate 2.5mm (thickness) stamped in one go. The tire surface is soft.

1-second quick access door

The load-bearing material of the access door adopts a solid steel rod with a diameter of 20mm, which effectively supports the strength of the buttocks and ensures that there will be no sinking or non return during long-term use. The toilet seat mattress and toilet seat position are designed with adhesive, so there is no need to move the nursing staff when taking the toilet seat. With the quick toilet seat device, the toilet seat can be opened within 1 second, achieving true zero waiting. And equipped with an adjustable height device, if the toilet seat sinks during use, it can be self adjusted to restore to its original position. The load-bearing plate of the container below the toilet seat is made of a 1.2mm thick steel plate that is stamped and formed in one go, ensuring overall safety and reliability.

product advantage

Leg weight-bearing capacity
- The supporting material adopts a circular tube with a diameter of 32mm and a thickness of 1.5mm, which can withstand a weight of 100 kilograms safely, reliably, and without deformation during long-term use.
01
Back lifting pulley design
- Equipped with 4 widened pulleys, it avoids the noise and damage caused by friction between the bed bodies during long-term use, reduces frictional resistance, and alleviates the burden on nursing staff.
02
Left and right turning pulley design
- The rotating pulley equipped for turning left and right can reduce frictional resistance and increase service life.
03

Rounded frame design

The rounded frame design is not only aesthetically pleasing, but also enhances the overall integrity of the frame and avoids scratching the bedding and mattress during use.

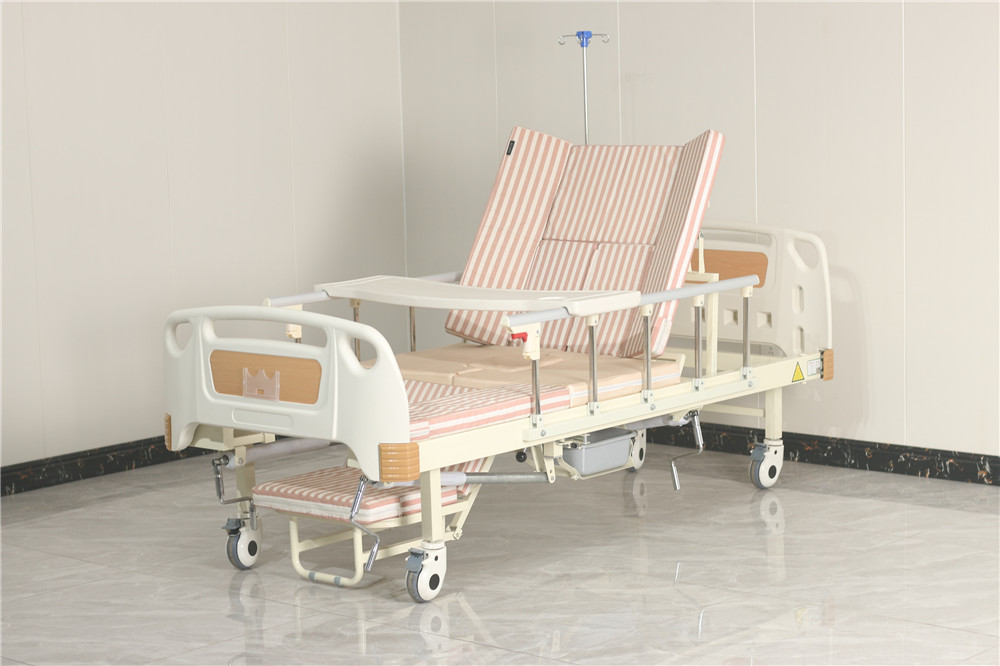

The infusion rack is a lifting type

The height can be adjusted according to user needs. The supervisor is made of high-quality stainless steel tubing with four hooks, which can simultaneously administer multiple bottles of infusion.

The legs are designed to touch the ground in a curved shape

When the legs come into contact with the ground, the bottom of the legs is equipped with gray nylon pads to avoid scratching the floor.
