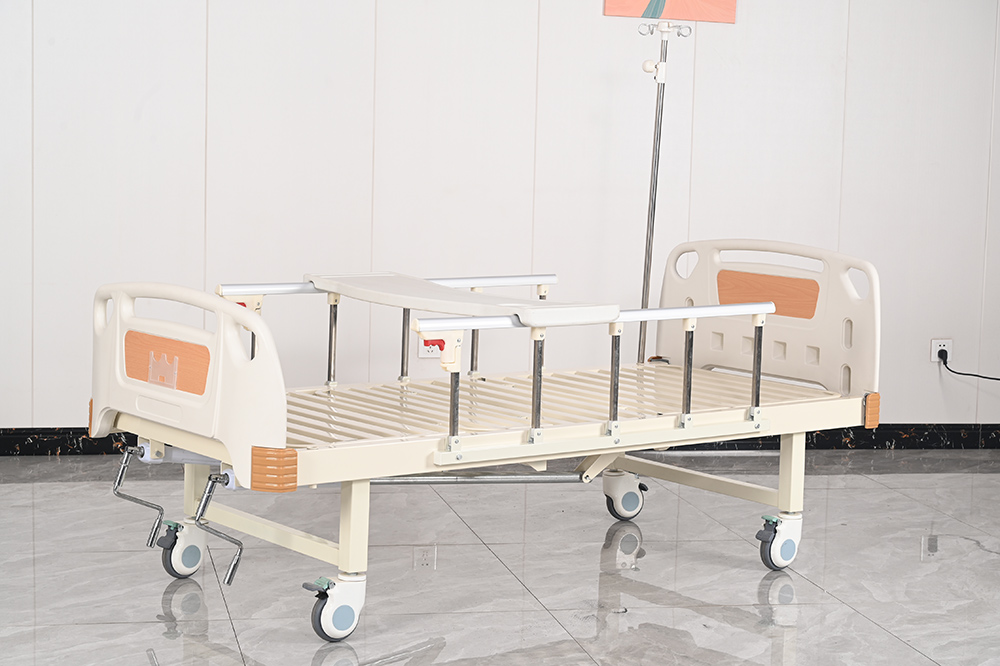

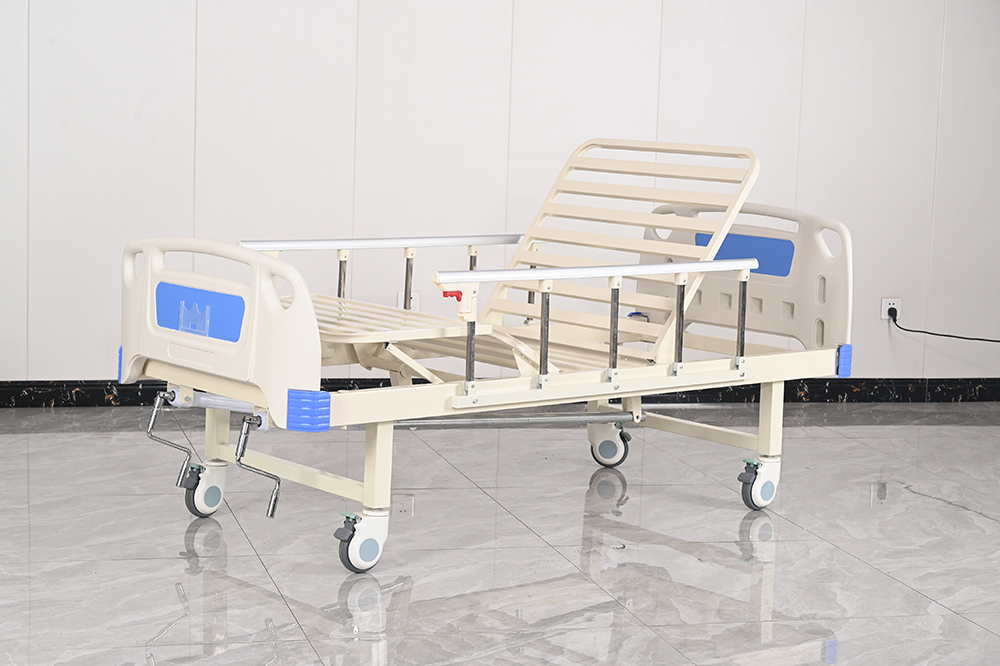

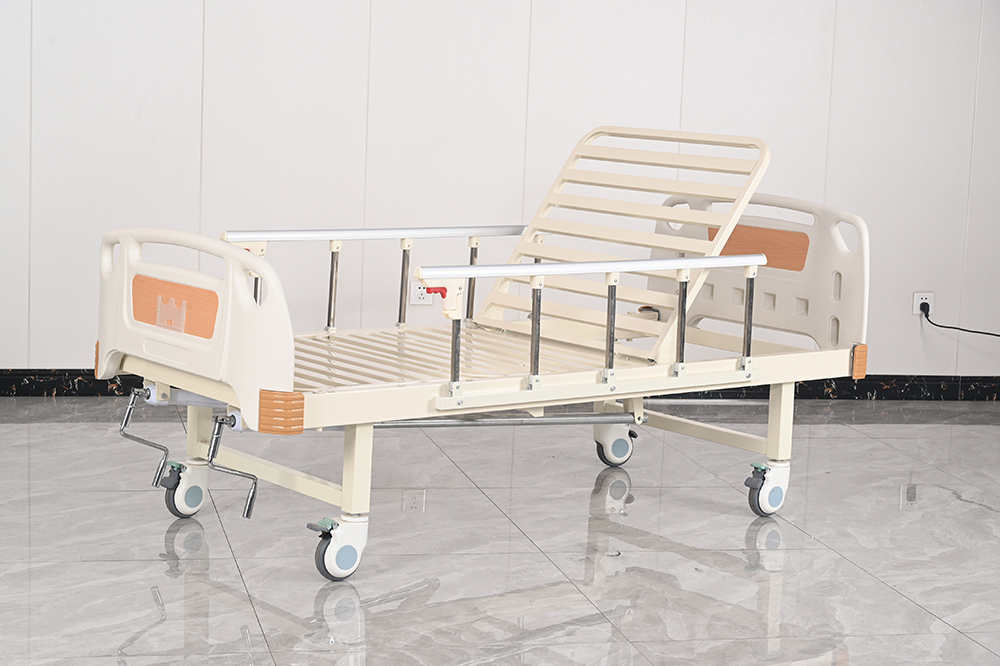

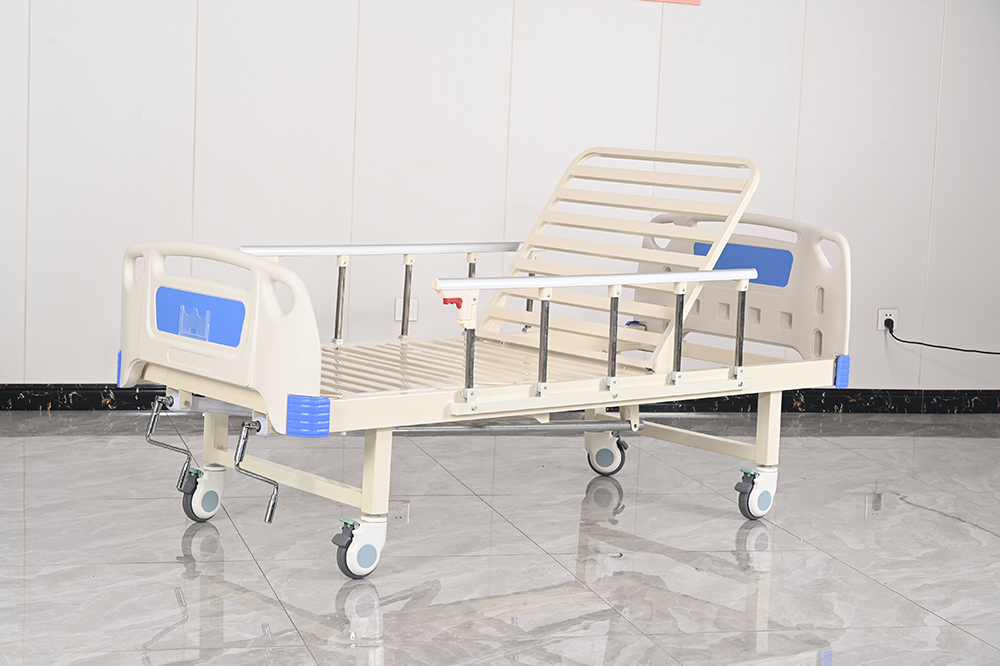

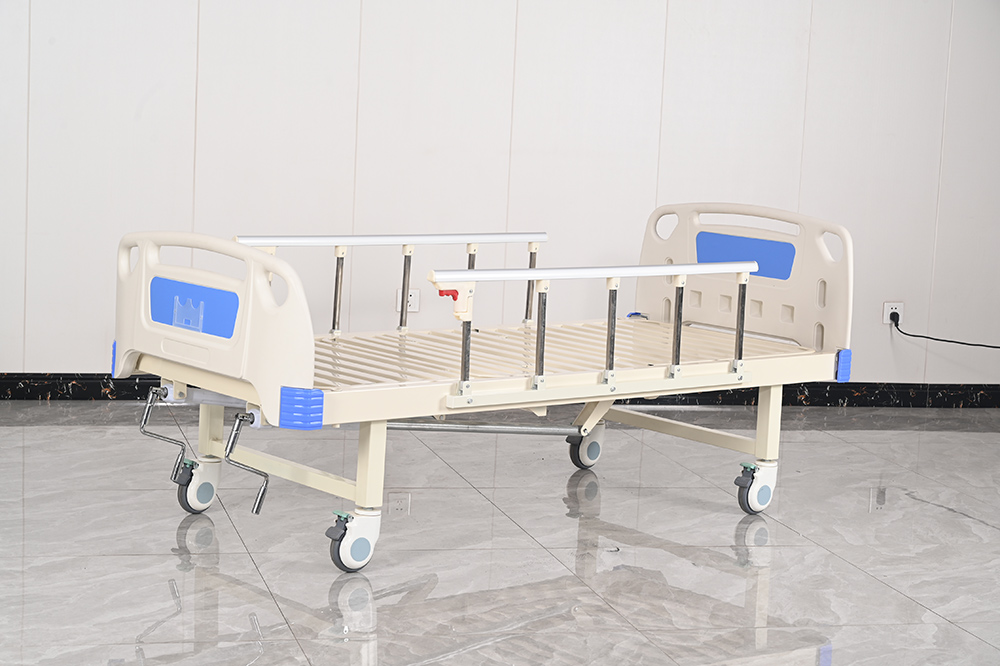

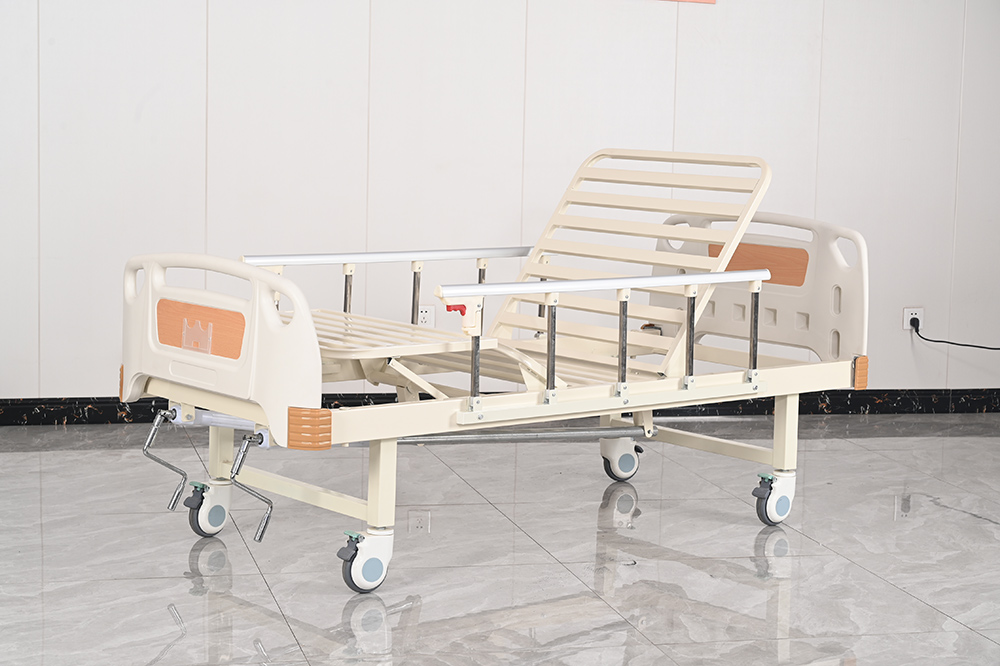

Manual two cranks hospital bed (Toilet ) HR-S28
1. Safe working load: 200kg.
2. The back board folding angle: 0~75 °.
3. The thigh board folding angle: 0~40°.
4. Guardrail:
1) One guardrail in each side of bed.
2) It can be automatically locked when raising, and each guardrail can bear more than 50KG.
3) Guardrail safety switch design, placed under the guardrail to avoid misuse of the patient.
5.Casters
1) The four casters are silent.
2) Steel structure, precision ball bearings are placed in the rotating head and the caster, the caster frame is equipped with a wheel cover made of synthetic material, suitable for locking the lever with a cam hole. Caster surface material: polyurethane, single dynamic (force) load is not more than 175 kg, static load is not more than 200 kg.
3) Braking system: Pedal-type synchronous braking arms on both sides of the bed, adopting all-metal structure, compact structure and reliable braking.
6. At the 4 corners of the bed, there is an diameter HDPE anti-collision wheel which inter gated on H/F board.
7. There are 1 hook in each side for drainage bag.
