Manual two cranks hospital bed HR-S08-1

Model: HR-S08-1

Size: L2050*W1050*500mm

product details

Main features

Manual two cranks hospital bed HR-S08-1 (4)yzk

1.Safe working load: 200kg.

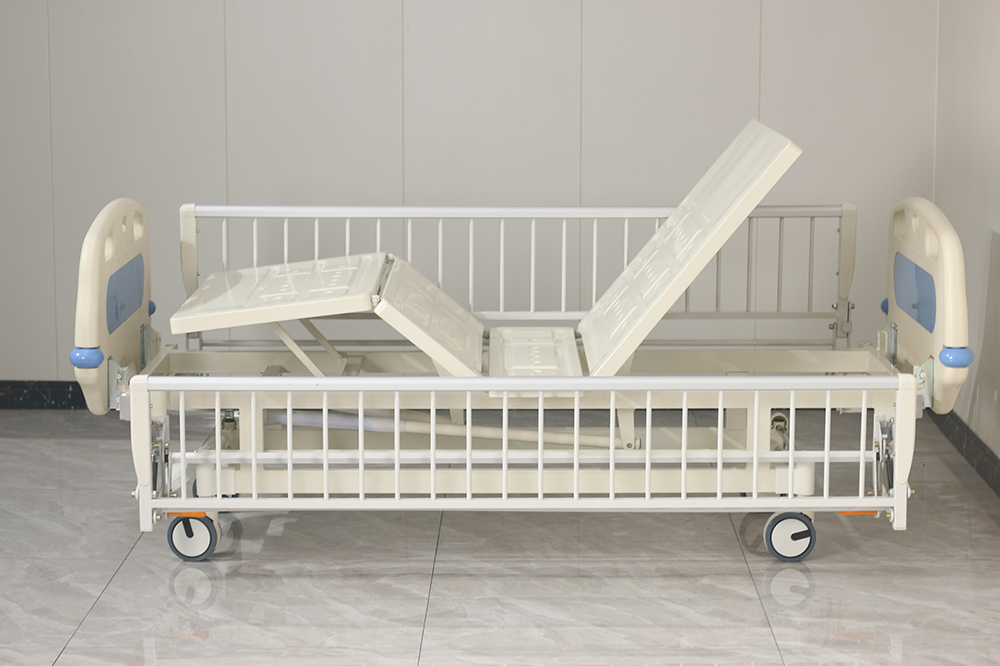

2.The back board folding angle: 0~75 °.

3.The thigh board folding angle: 0~40°.

4.Guardrail

1) One full coverage aluminium alloy guardrail in each side of bed.

2) It can be automatically locked when raising, and each guardrail can bear more than 30KG.

3) Guardrail safety switch design, placed under the guardrail to avoid misuse of the patient.

4) Equipped with gas spring for easy operation.

5) The steel structure of the guardrail base is welded on the bed to ensure safety.

Manual two cranks hospital bed HR-S08-1 (7)b0k

Manual two cranks hospital bed HR-S08-1 (8)z24

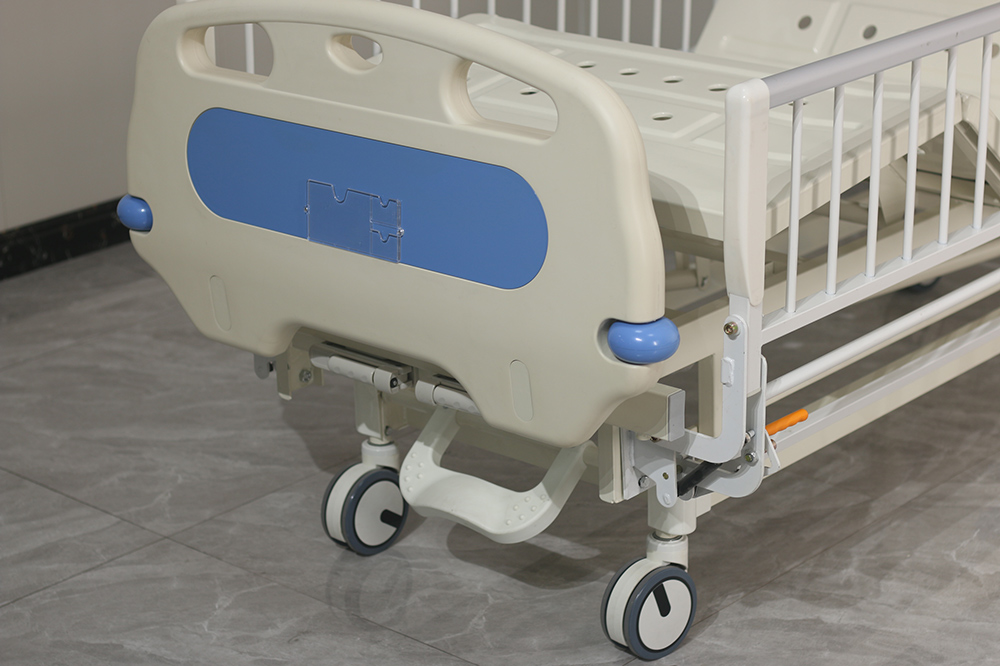

5.Casters

1) The four casters use 125mm center control one.

2) Steel structure, precision ball bearings are placed in the rotating head and the caster, the caster frame is equipped with a wheel cover made of synthetic material, suitable for locking the lever with a cam hole. Caster surface material: polyurethane, single dynamic (force) load is not more than 175 kg, static load is not more than 200 kg.

3) Braking system: Pedal-type synchronous braking arms on both sides of the bed, adopting all-metal structure, compact structure and reliable braking.

6. At the 4 corners of the bed, there is an diameter HDPE anti-collision wheel which inter gated on H/F board.

7.There are 1 hook in each side for drainage bag.
