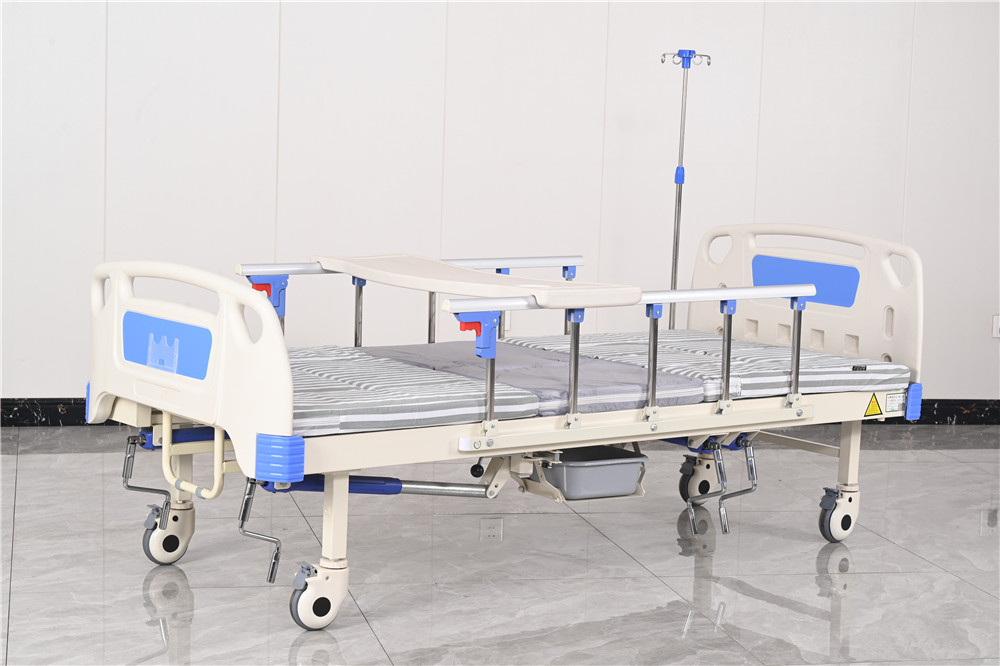

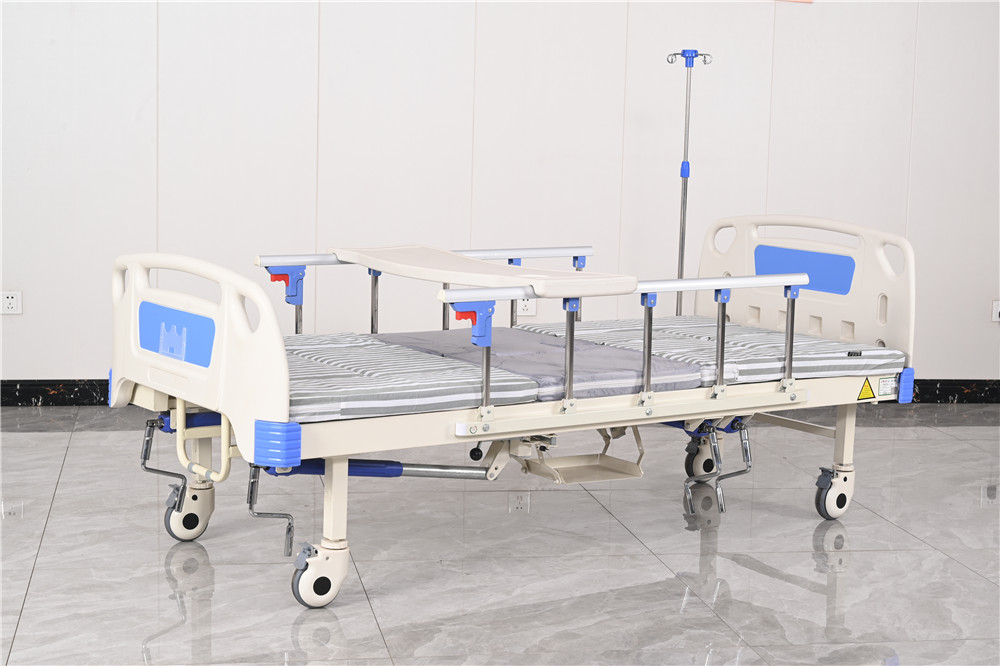

Manual multifunctional turning care bed: a masterpiece of craftsmanship, designed to care for battery life

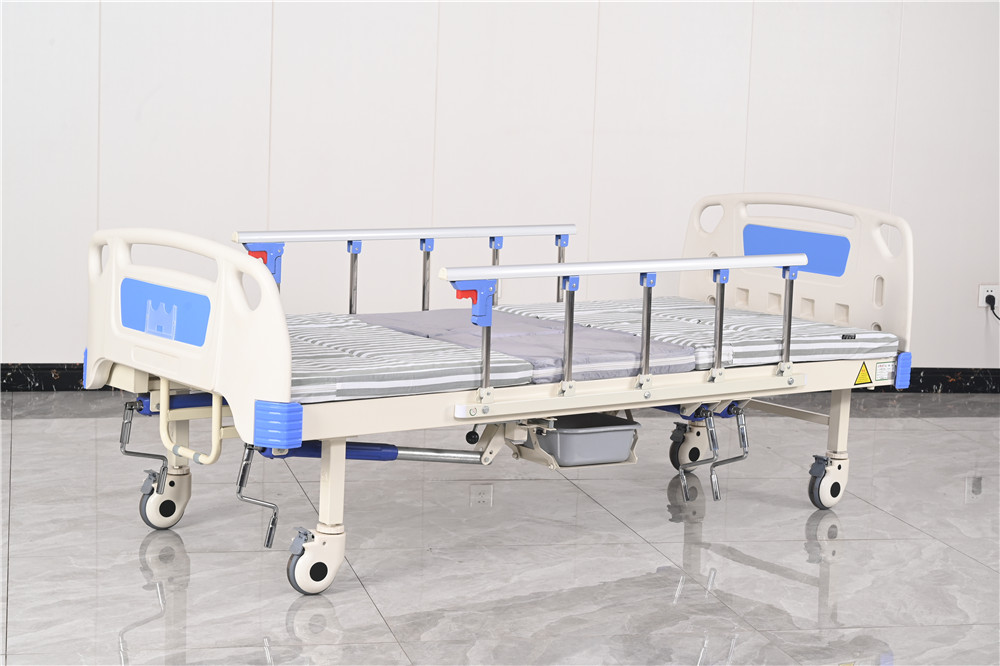

| Product Name | Manual multifunctional turning nursing bed |
| key word | Multi functional turning nursing bed |
| Model | C04-1 |

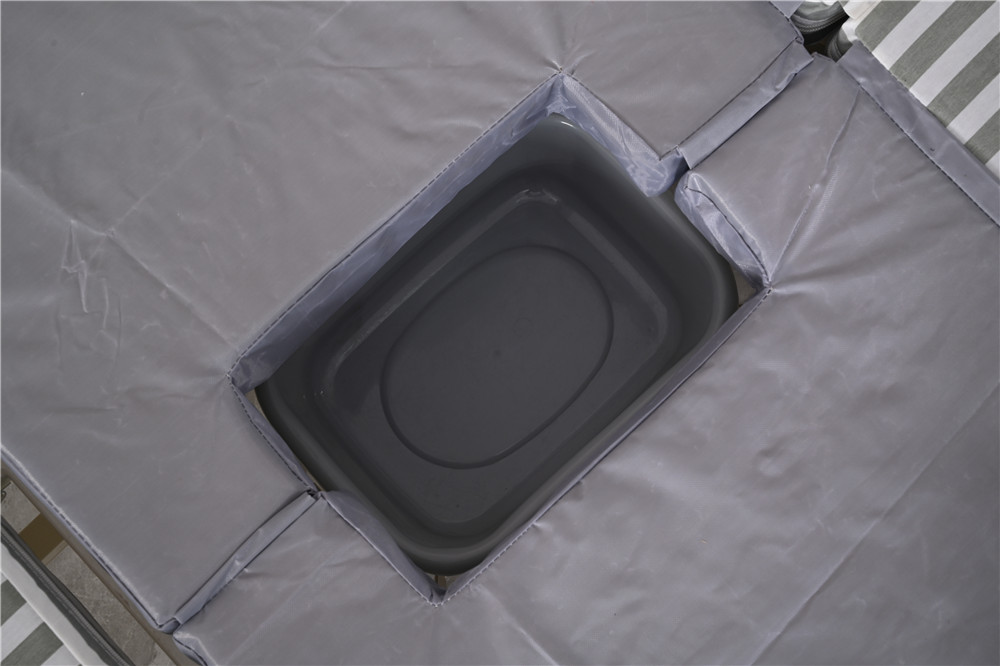

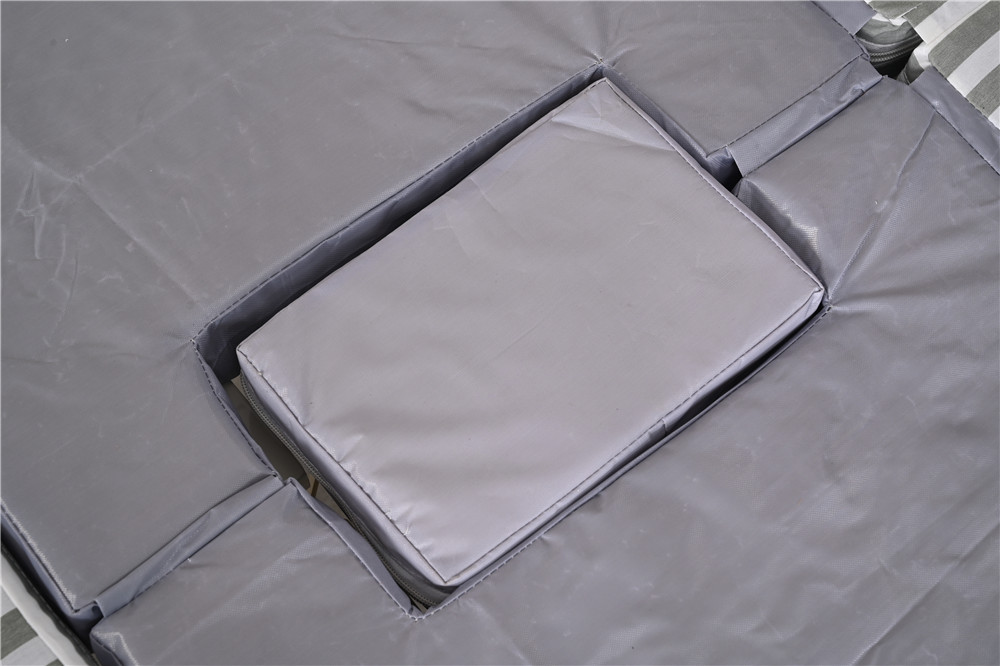

| size | Dimensions: Length 2100 * Width 960 * Height 520mm (including mattress) Inner diameter dimensions: length 2000 * width 900 * height 460mm (excluding mattress) Toilet hole size: length 310 * width 220mm |
| function | 5 functions |
| Bedhead and Bedend | ABS engineering plastic |
| Work load | 240 kilograms |
| Timed turnover period | |
| Control method | Manual |
| Caster wheels | Mobile silent casters |
| Specific purpose | Bed care bed |
| colour | Standard or customized |
| OEM/ODM | accept |
| Minimum order quantity | 1 set |
01
Functional Features

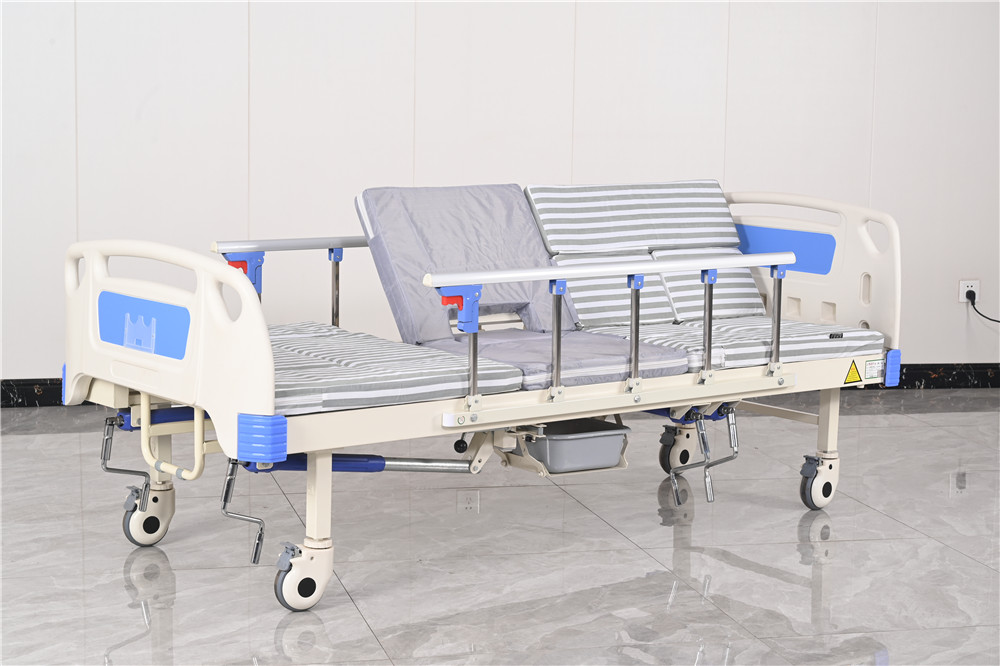

The nursing bed is equipped with four handles, which are used for manual left turning, manual right turning, manual back lifting, and manual leg lifting. The seat and toilet conversion is operated using a quick wrench.Adopting a metal spiral design, the handle surface is electroplated, foldable, sturdy and practical.

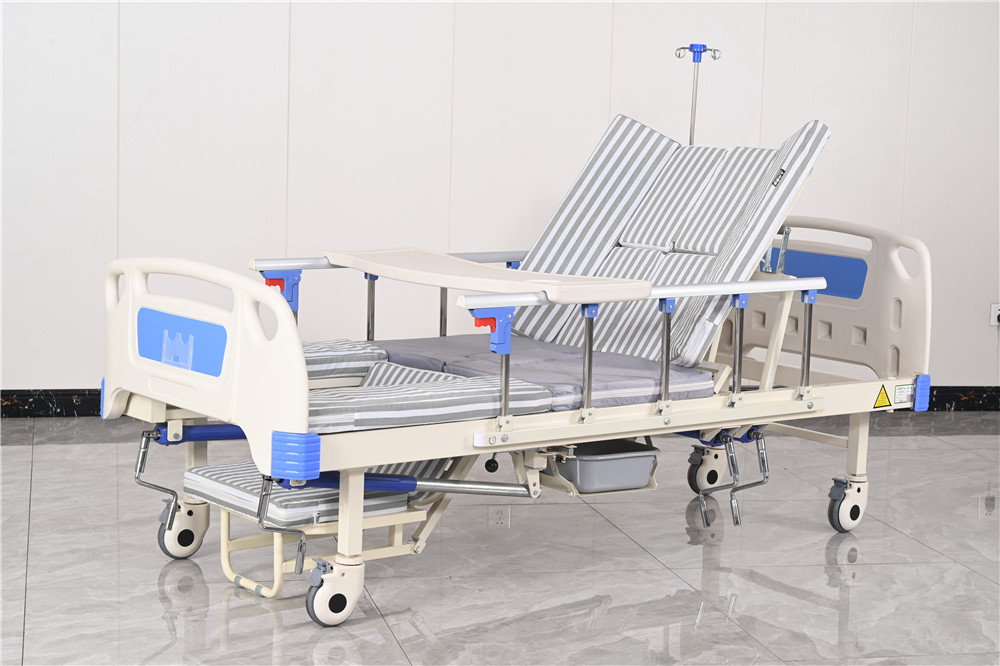

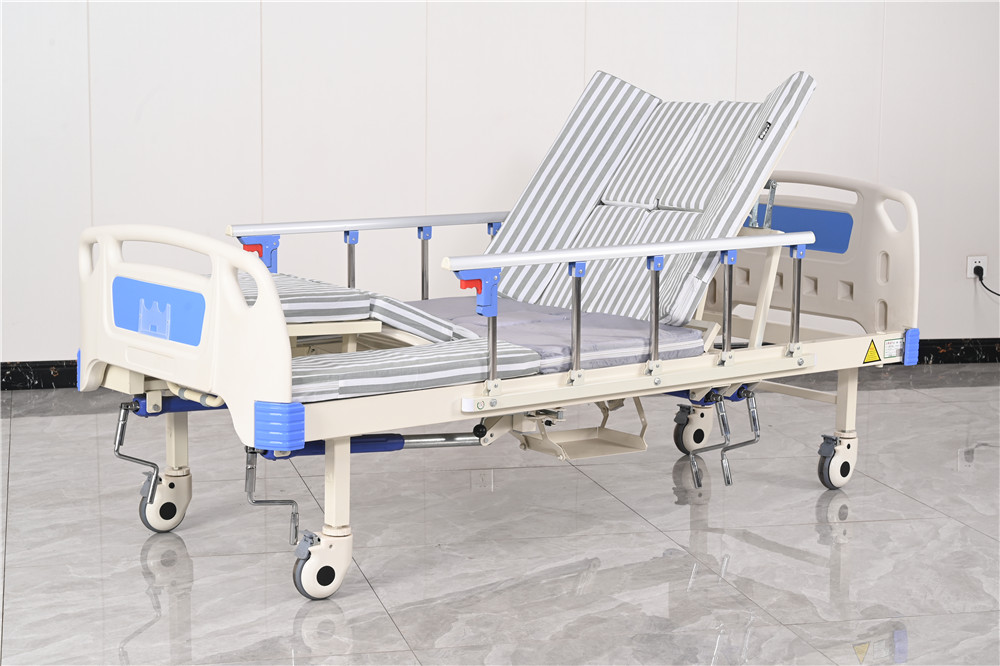

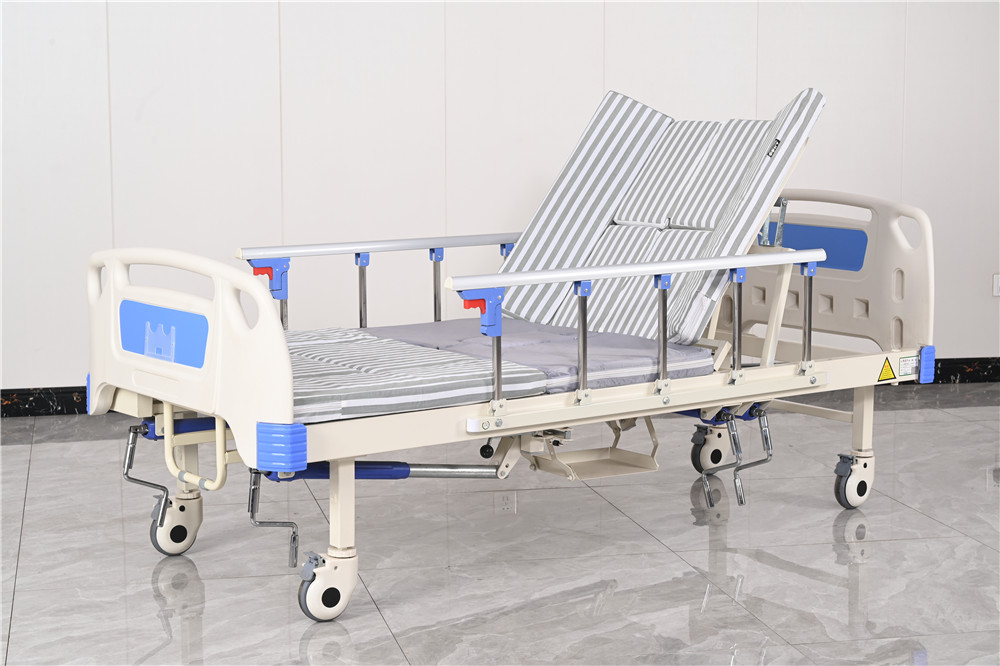

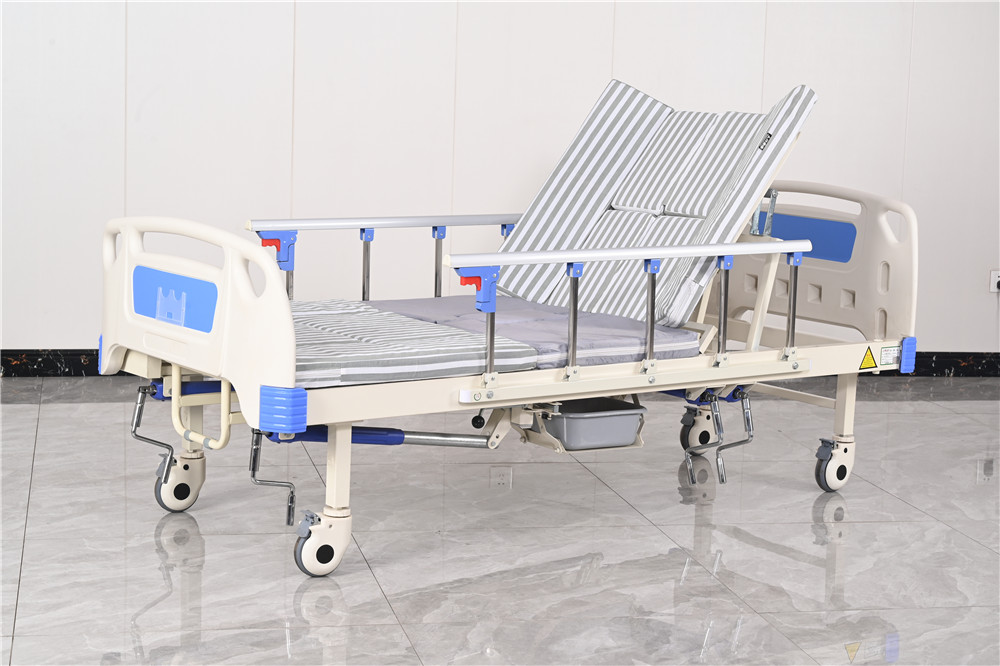

Equipped with a back lifting and anti slip function, when the caregiver sits up at a gradually increasing angle, the bed boards on both sides will move inward, forming a semi enclosed state, effectively preventing the caregiver from tilting towards both sides.
02
Rocker
The joystick has a bidirectional over shake protection device, which will not be damaged due to over shaking and increase its service life. The rocker spring box is made of steel, anti cracking, with high support force, high wear resistance, safety and reliability, easy to use without noise, ensuring smooth use, and comes with a dust cover.
03
Guardrail
The nursing bed is equipped with aluminum alloy guardrails, with a total length of 1150mm on the side guardrails. D-shaped aluminum alloy handrails are used and surface hardened. There are 5 aluminum alloy guardrail pillars, and the upper and lower connecting parts are one-time stamped steel parts with a thickness of 3.0mm. The carefully designed switch ensures long-term safety and is equipped with anti loosening fasteners that are wear-resistant and deformation resistant. Shrinkable flat placement, slightly higher than the bed surface when contracted, can effectively prevent the mattress from shifting.
04
Bedhead and tailboard

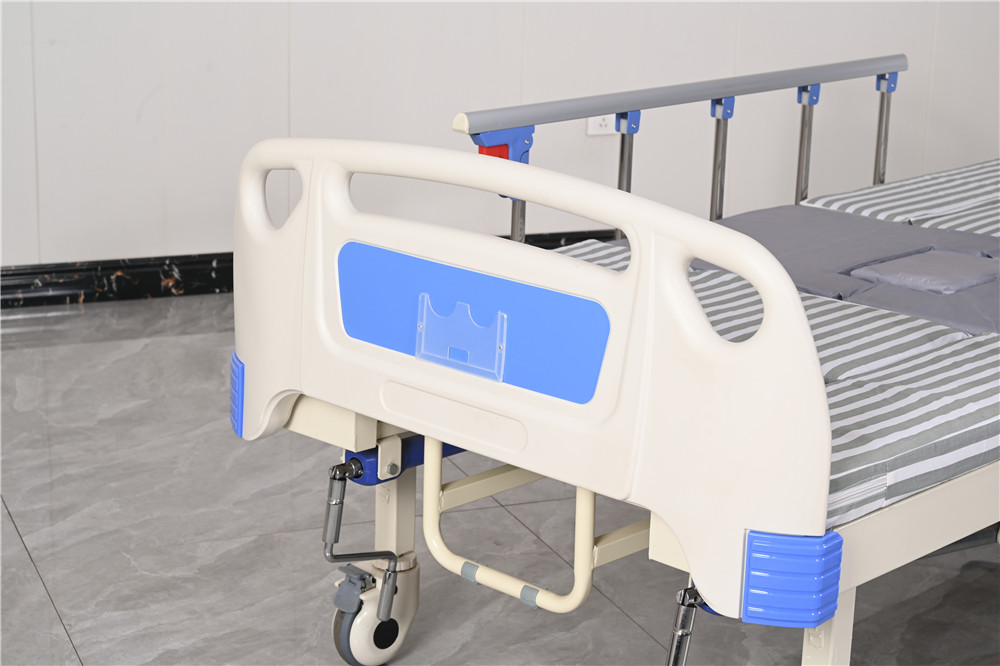

The headboard and tailboard are made of ABS engineering plastic, with blue accents in the middle. They are blow molded in one go using molds and have the advantages of fade resistance, aging resistance, corrosion resistance, and easy cleaning. The bed tail board is equipped with transparent medical record cards, and the head and tail of the bed can be freely disassembled without the need for any tools.
05
Caster wheels
Equipped with mobile silent wheels for easy and free movement. At the same time, it is equipped with a brake device to fix the bed, with movable wheels with a diameter of 12cm and built-in double bearings. The fork is formed by one-time stamping with a 2.5mm thick cold plate, and the tire surface is soft.
-
-
Leg weight-bearing capacity:The supporting material adopts a circular tube with a diameter of 32mm and a thickness of 1.5mm, which can withstand a weight of 100 kilograms safely, reliably, and without deformation during long-term use.Back lifting pulley design:Equipped with 4 widened pulleys, it avoids the noise and damage caused by friction between the bed bodies during long-term use, reduces frictional resistance, and alleviates the burden on nursing staff.Left and right turning pulley design:The rotating pulley equipped for turning left and right can reduce frictional resistance and increase service life.
-
-
-
Rounded frame design:The rounded frame design is not only aesthetically pleasing, but also enhances the overall integrity of the frame and avoids scratching the bedding and mattress during use.The infusion rack is a lifting typeThe height can be adjusted according to user needs. The supervisor is made of high-quality stainless steel tubing with four hooks, which can simultaneously administer multiple bottles of infusion.The legs are designed to touch the ground in a curved shapeWhen the legs come into contact with the ground, the bottom of the legs is equipped with gray nylon pads to avoid scratching the floor.
-
