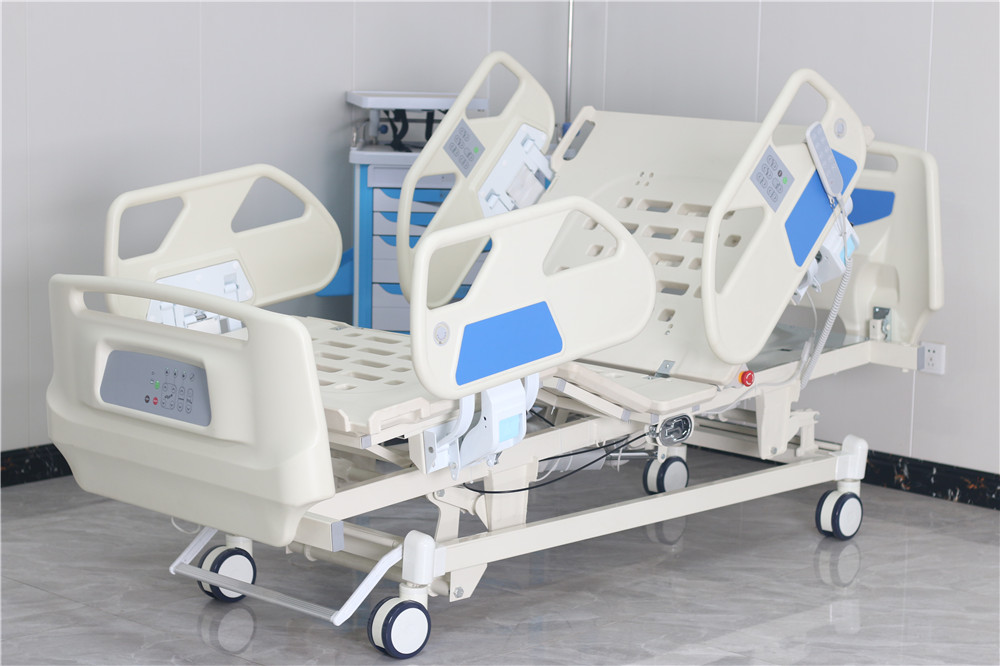

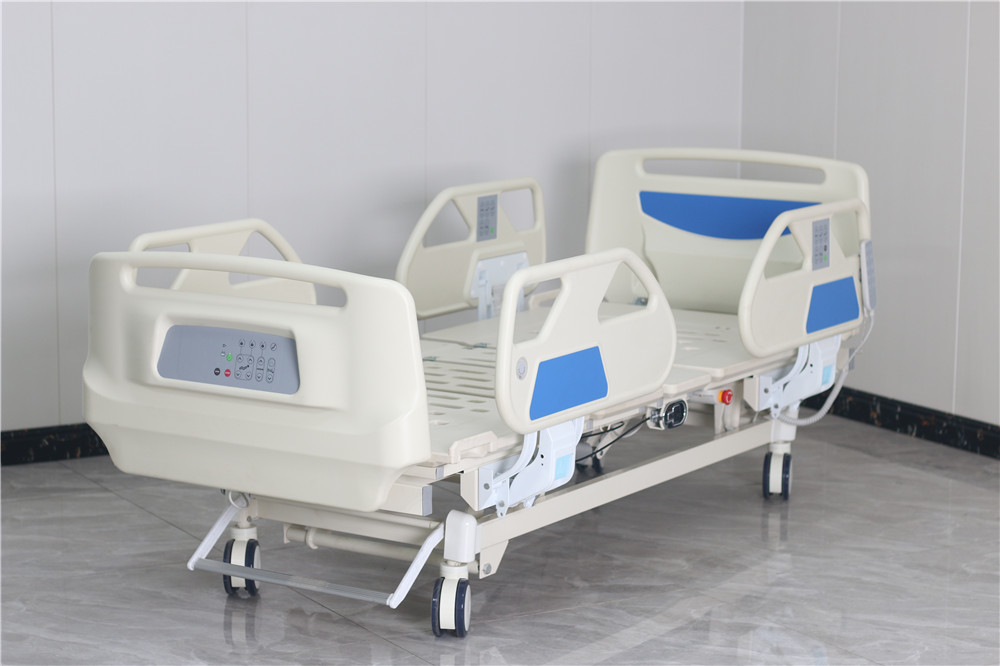

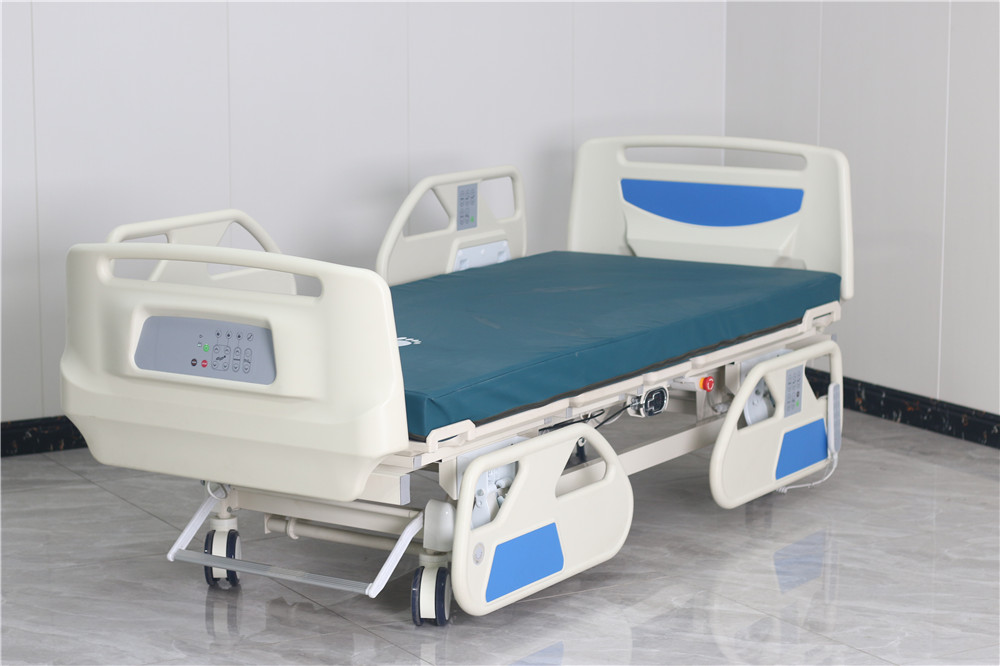

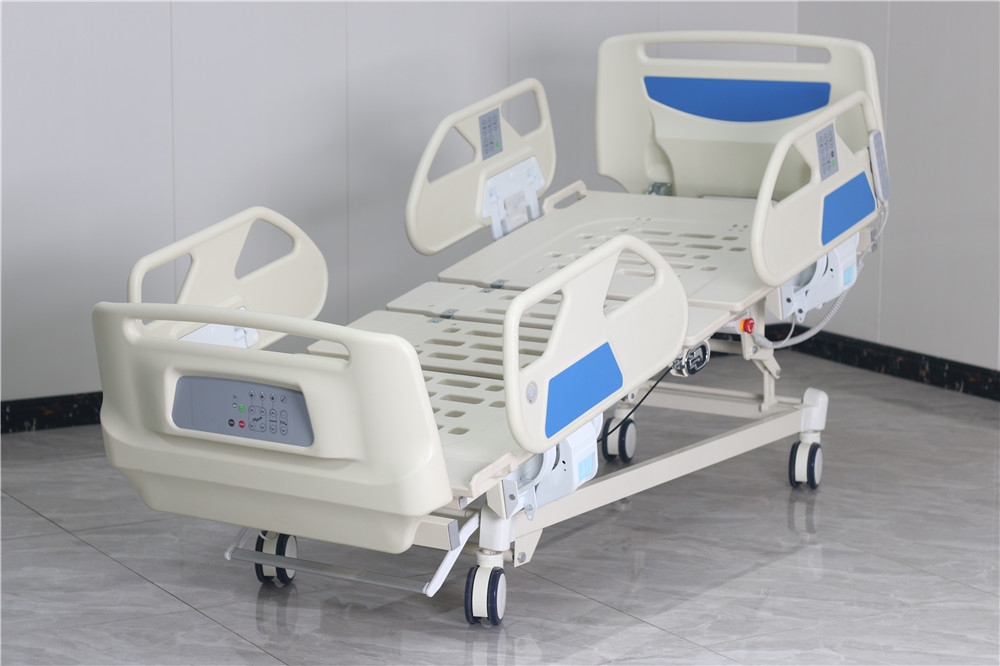

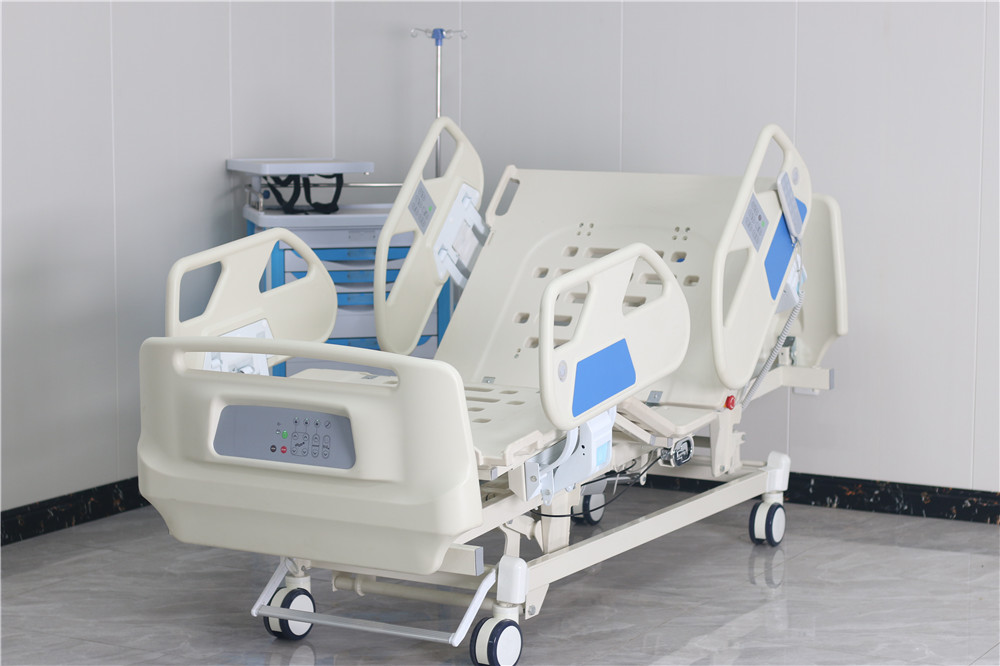

ICU electric five-function bed: comprehensive functions and meticulous care

Product materials

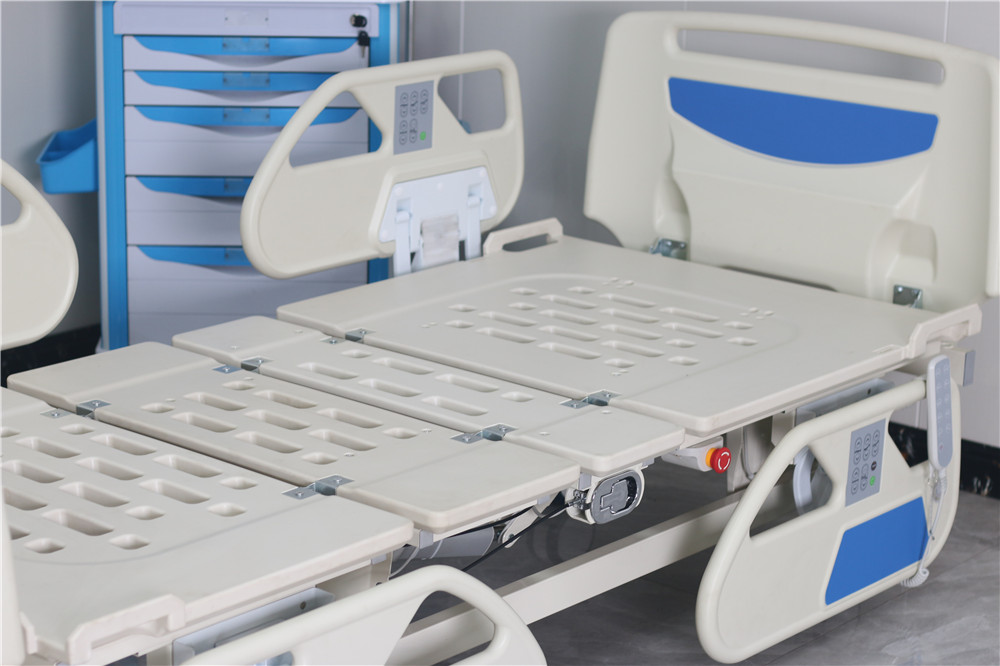

The overall bed is made of high-quality cold-rolled carbon steel pipes with a thickness of 1.5mm, and some load-bearing materials are made of 3mm integrated stamping parts. The panel of the bed is made of high-quality cold-rolled carbon steel plates with a thickness of 1.2mm stamped in one go. The four corners of the bed surface have anti impact ABS corners, which have anti scratch function. The bed board has high strength, balanced stress, strong resistance to pressure, and is equipped with ventilation holes, as well as anti slip function; The welded steel pipe below is reinforced, solid and durable.

Bed body

The bed can carry 170KG; The back of the bed adopts a double support structure, which is formed by stamping cold steel plates to strengthen the load-bearing capacity of the backboard. The rocker arm bears less pressure and is easy to operate when shaking.

Guardrail

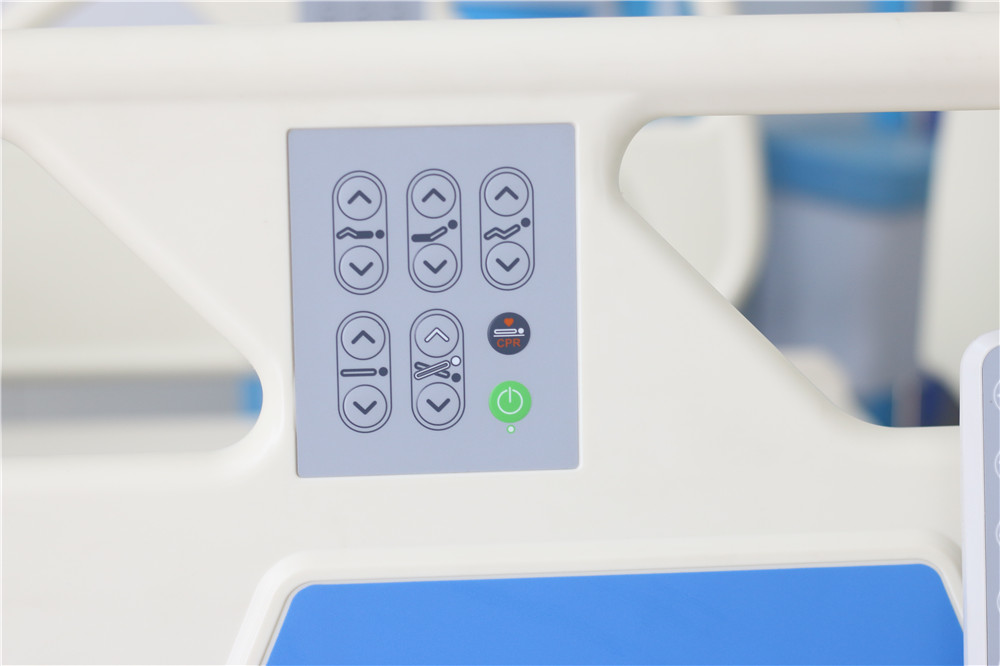

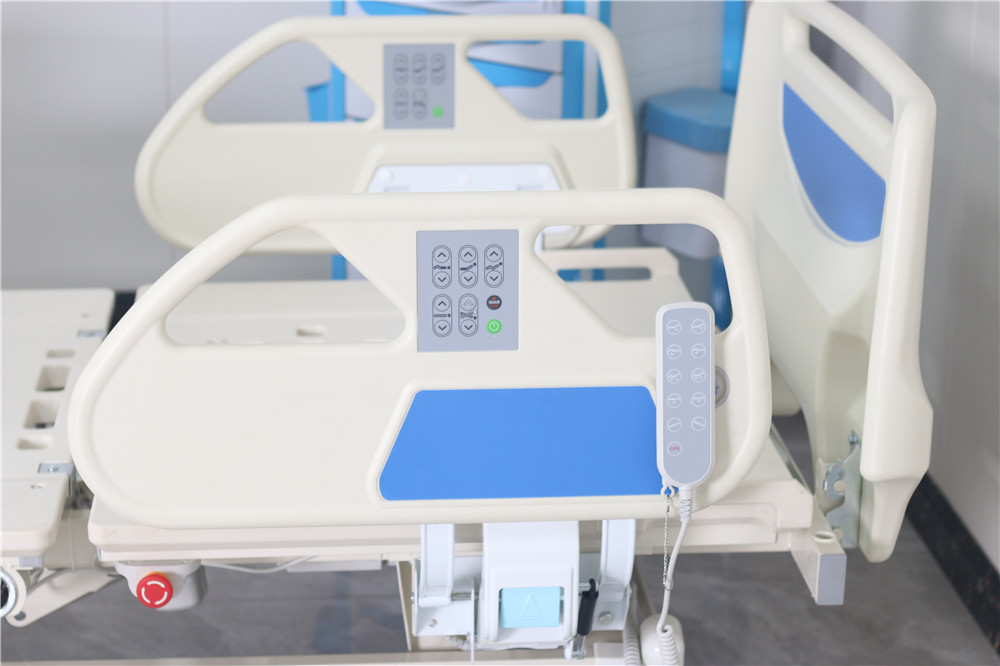

Fully enclosed four piece segmented guardrail, made of HDPE material blow molded, with a smooth and easy to clean surface. The two side guardrails are designed ergonomically, and their shape and grip position are well matched with the movement angle of the user's hands and wrists. Regardless of the back panel's movement angle, the user can easily grip the guardrail handrails to ensure safety. Both sides of the back guardrail are equipped with position controllers, and the buttons are within reach, improving the convenience of operation for nurses and patients. The outer side of the fully enclosed four piece segmented guardrail is equipped with a ball type angle indicator, which is convenient for medical staff to quickly and intuitively help patients place themselves in a comfortable position (30 ° and 45 ° are specially marked). The guardrail lifting is equipped with high-end imported dampers, and the switch adopts a linear motion mode. The anti pinch design makes the operation easy and safe.

Bedhead and footboard

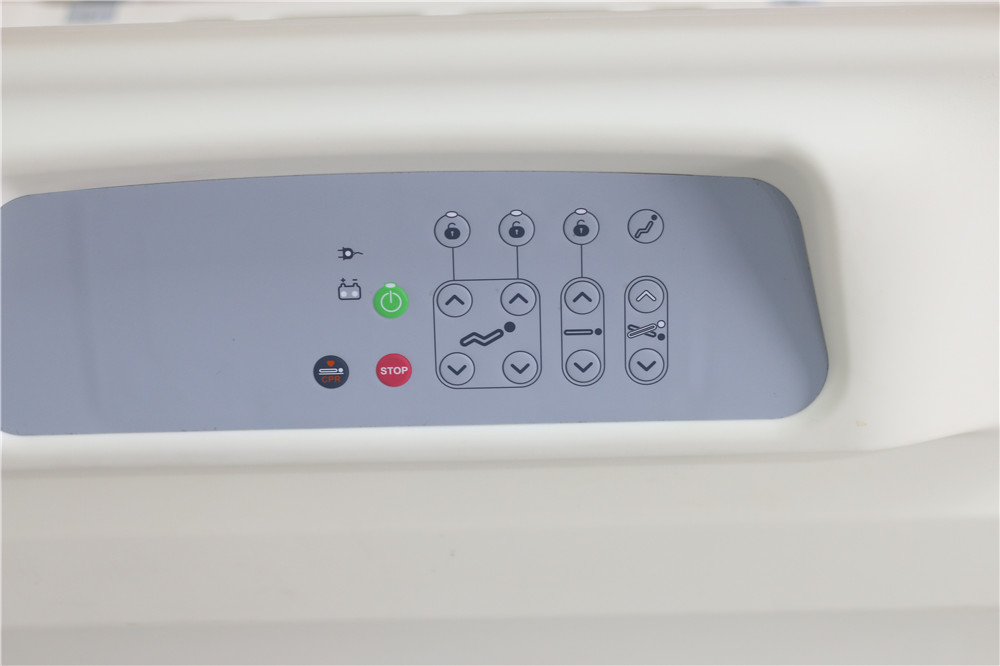

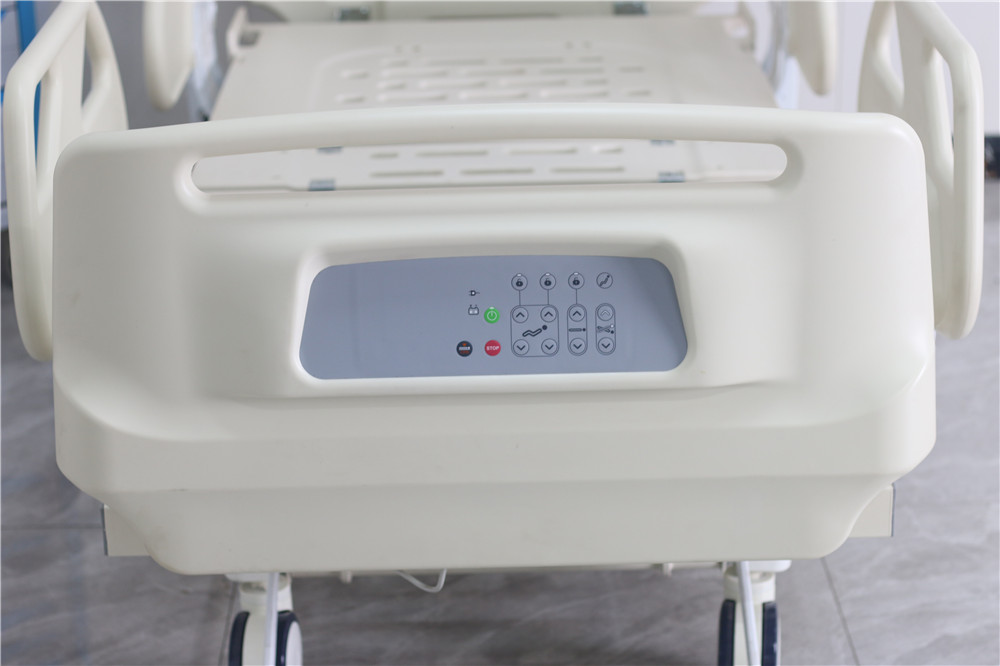

The headboard and footboard are formed by ABS integrated blow molding, with no gaps, easy cleaning, no deformation, high headboard and low footboard, with anti loosening and expansion strength functions; The bed tail board has a bedside card slot; There are two armrests on the upper left and upper right of the headboard and tailboard. Hidden locking switch, stable and reliable, with an information card slot and anti-collision corner on the outer side of the bed tail board, with anti-collision function;

Caster wheels

Central control wheel: Equipped with 5-inch luxury casters, with central control brake function, stable braking effect, high precision in various dimensions, and high strength of casters. Fixed rotation direction (directional casters); Full range release (universal casters); Full directional locking function (anti rotation, anti rotation). High load-bearing capacity, smooth operation, no noise, control function achieved by controlling the horizontal bar to press and lift, built-in fully enclosed self-lubricating bearings, no need for refueling care, preventing foreign objects from getting involved, and independent braking; The wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise free.
