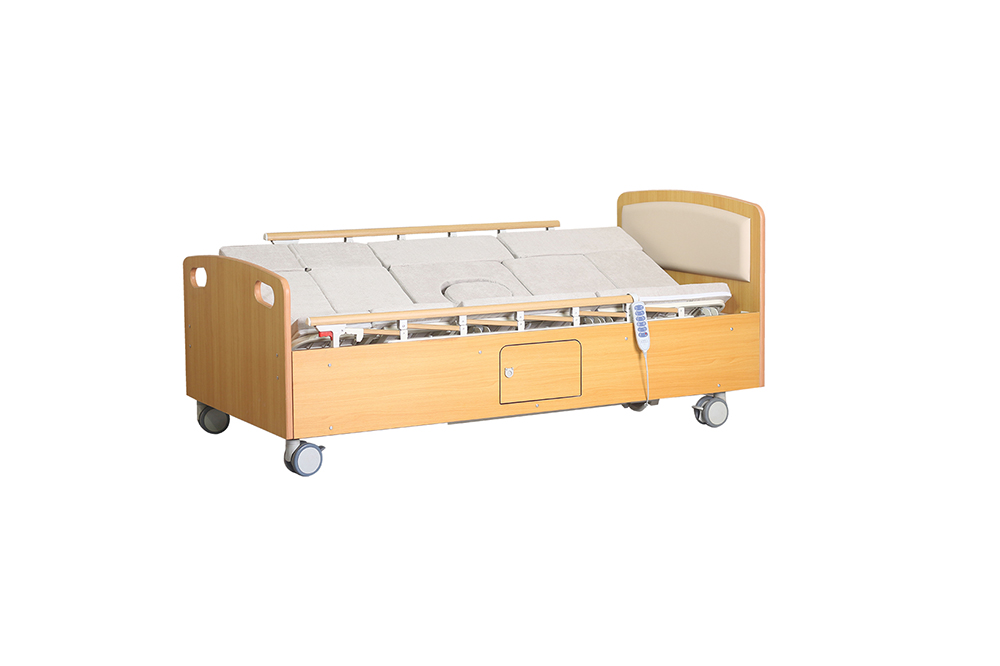

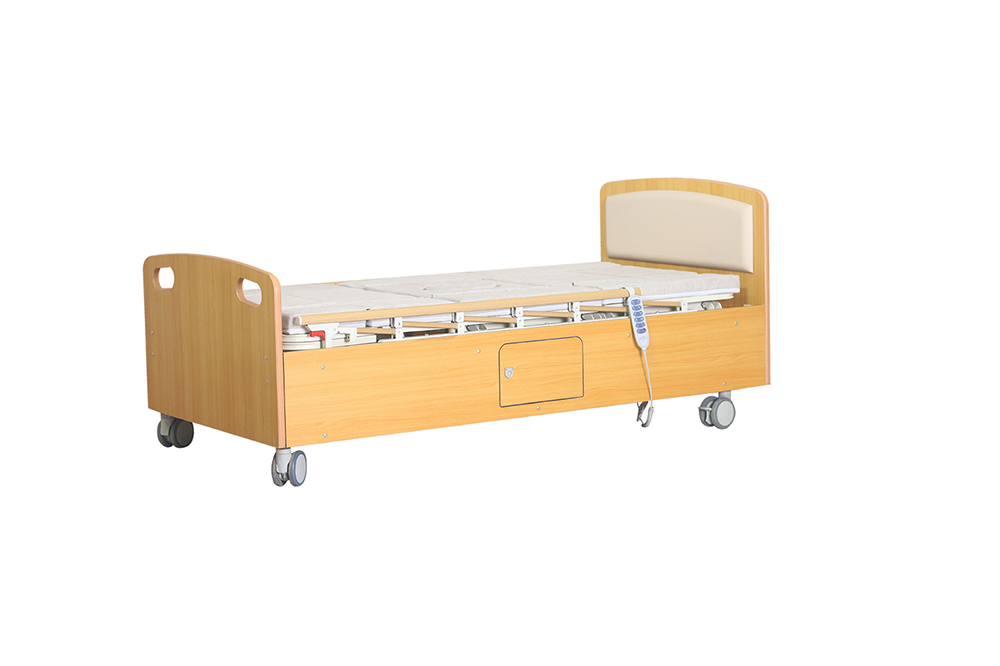

Home electric integral turning care bed: intimate companionship, caring for family members

Functional features:
This nursing bed is equipped with four motors, which respectively achieve functions such as electric left and right turning, electric standing, electric leg lifting, and electric toilet seat conversion. At the same time, there is also a timed turning function, which can be selected between two time options: 30 minutes and 45 minutes.

The intelligent overall side flip function is excellent. The flipping method of this product is the overall three fold sinking left and right flipping of the bed, which can adjust the angle according to actual needs. The turning process is slow and the angle setting is reasonable.

Excellent anti slip function for lifting the back. As the angle of sitting increases, the bed boards on both sides will move inward, forming a semi enclosed form, effectively preventing the caregiver from tilting towards both sides.

The back lifting and anti compression function is powerful. With the activation of the back lifting function, the lower end bed board of the back will gradually move backwards, thereby reducing the pressure on the abdomen of the patient being cared for.

product details

Product Parameters

Product Name	Household electric integral turning care bed
key word	Multi functional nursing bed
Model	DH03-1
size	Dimensions: length 2110 * width 1060 * height 560mm (including mattress) Inner diameter dimensions: length 2060 * width 1000 * height 500mm (excluding mattress) Toilet hole size: length 330 * width 210mm
function	5 functions
Bedhead and Bedend	Wooden multi-layer board
Work load	240 kilograms
Timed turnover period	30 minutes or 45 minutes
Control method	electric
Caster wheels	Silent casters
Specific purpose	Flip over nursing bed
colour	Standard or customized
OEM/ODM	accept
Minimum order quantity	1 set

Product Details

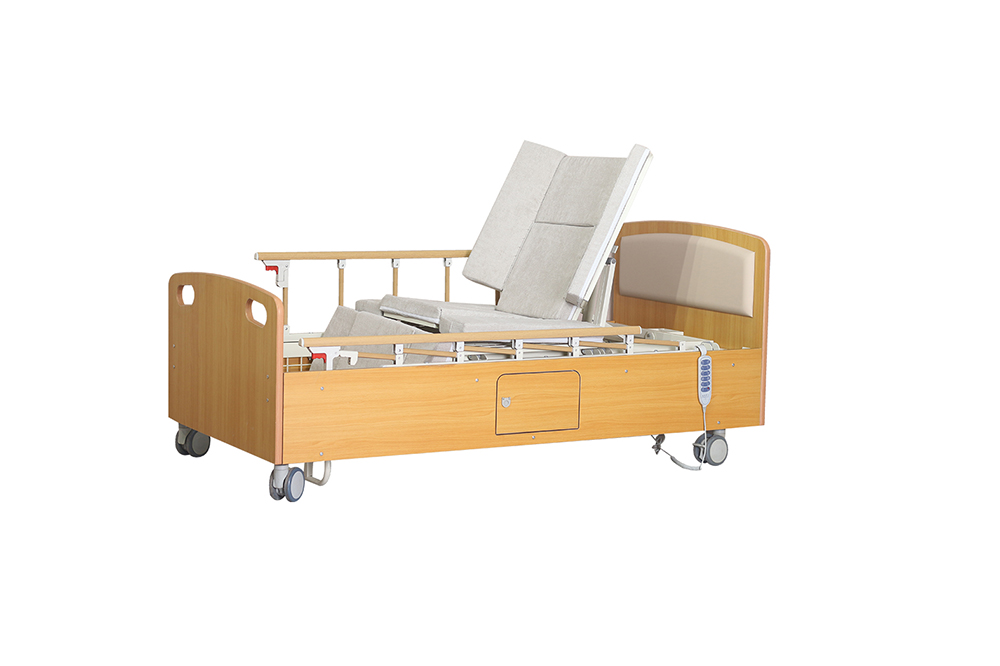

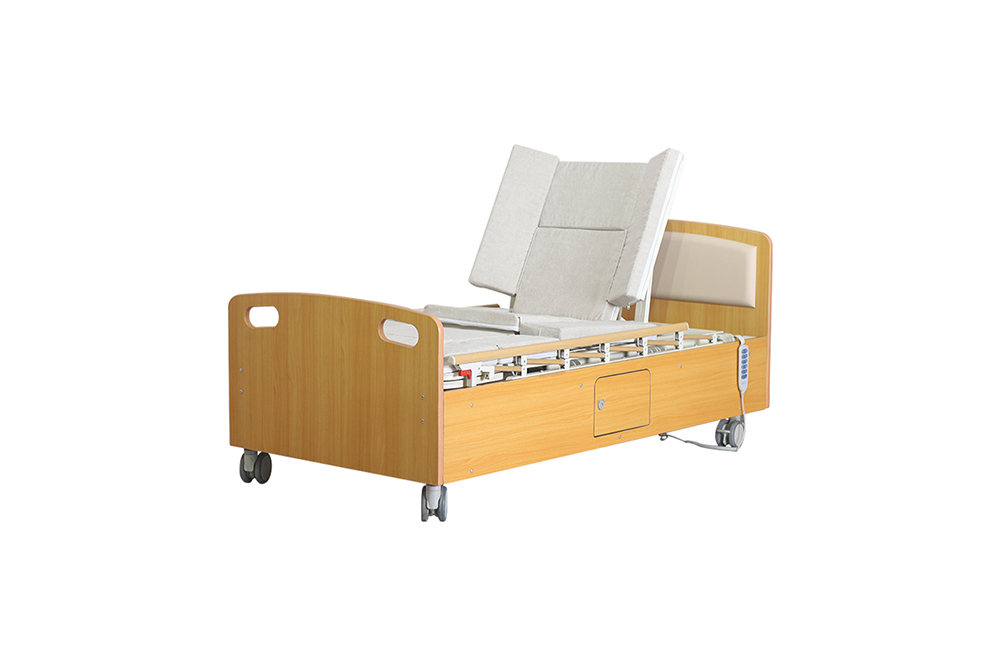

Back up anti slip function

As the back lifting function progresses, the support plate of the human buttocks is lifted upwards, effectively preventing the caregiver from losing effective sitting posture during the back lifting process, resulting in slipping and displacement of the sitting position.

One click reset function

The nursing bed is equipped with a "reset" function button, which can be pressed twice in a row to quickly restore the bed to a lying down state, without the need to adjust various functional states in sequence, greatly simplifying the operation process. The design of pressing twice in a row can effectively avoid improper operation caused by accidental touch.

Emergency stop function

To cope with special situations such as improper operation, the remote control handle is specially equipped with an emergency stop button. Once a special situation occurs, pressing the "emergency stop" function button will immediately stop all functions. After the unexpected release, the operation can continue.

Night light function of the controller

Lightly tap any function key, and the lights of all function keys on the controller will turn on, providing great convenience for users to use at night.

Battery design

The battery equipped in the control box can automatically switch to the built-in power supply in case of power outage, ensuring that the nursing bed can also be used normally during power outage. Due to the built-in design of the battery, it does not require separate charging and can be charged on its own after plugging in the power source. After being fully charged, the circuit will automatically switch, so there is no need to worry about long-term charging causing adverse effects on the battery.

The household electric integral turning care bed is a high-performance nursing equipment designed specifically for home care.

Aluminum alloy guardrail

The total length of the side guardrail is 1150mm, using D-type aluminum alloy handrails, and the surface has been hardened. Equipped with 5 stainless steel guardrail pillars, the upper and lower connectors are one-time stamped steel parts with a thickness of 3.0mm. The switch has been carefully designed to ensure long-term safety, and is also equipped with anti loosening fasteners that are wear-resistant and deformation resistant. Shrinkable flat placement, slightly higher than the bed surface when contracted, can effectively prevent the mattress from shifting.

Headboard and tailboard enclosure

Wooden multi-layer board headboard and footboard (with soft packaging), color decoration is more in line with home style. The head of the bed is designed with rounded corners, without right angles, and both the head and tail of the bed can be disassembled. The product is sturdy, lightweight, easy to clean, environmentally friendly, and odorless. Long term use will not cause paint peeling or peeling.

Mobile silent wheels

The mobile wheels adopt a double row design, which is convenient for free movement. Equipped with a brake device that can fix the bed, the diameter of the movable casters is 12cm, with built-in double bearings. The fork is made of a cold plate with a thickness of 2.5mm and is formed by one-time stamping. The tire surface is soft.
