Electric three functions, transforming life

Electric power three function hospital bed, with adjustable height, back lifting, and leg lifting functions. Facilitating medical operations, improving patient comfort, and promoting rehabilitation are important equipment in modern healthcare.

product details

Product Parameters

Product Name	Electric power three function hospital bed
key word	Electric hospital bed
Model	HR-D12
size	Length: 2050mm, Width: 960mm, Height: 430-680mm
function	3 functions
Bedhead and Bedend	Reinforced plastic
Work load	240 kilograms
Control method	electric
Caster wheels	High end center console wheels
Specific purpose	Medical bed
colour	Standard or customized
OEM/ODM	accept
Minimum order quantity	1 set

product advantage

Height adjustable function
- The electric power three function hospital bed can easily adjust the height of the bed body through electric drive. This feature provides great convenience for medical staff. During nursing operations, medical staff can adjust the hospital bed to a suitable height according to their height and operational needs, reducing bending and excessive stretching of the body, and lowering the risk of work fatigue and injury. Meanwhile, for patients, different heights can also meet their special needs. For example, adjusting the bed height can make the transfer process safer and smoother when the patient needs to be transferred to a wheelchair or other device.
01
Back lifting function
- This hospital bed can lift the back through electrical power. This is very important for the patient's comfort and rehabilitation process. Patients can adjust the angle of their back according to their needs to find the most comfortable posture. For patients who are bedridden for a long time, appropriate back lifting can reduce the risk of pressure ulcers. During rehabilitation treatment, back lifting function can help patients perform some simple activities, such as sitting up for breathing training, eating, etc., to promote physical recovery.
02
Leg lifting function
- The electric power three function hospital bed also has the function of leg lifting. This can help patients relieve leg fatigue and edema, and promote blood circulation. For patients with lower limb diseases or those who need rehabilitation after surgery, leg lifting function can provide better support and comfort, accelerating the rehabilitation process. In addition, leg lift can also be used in conjunction with back lift function, providing patients with more diverse body position options to meet different treatment and nursing needs.
03

Product materials

The bed body is made of high-quality cold-rolled carbon steel pipes, with a specification of 60 × 30 × 1.2mm. The bed panel is formed by one-time stamping with 1.2mm high-quality cold-rolled carbon steel plate, greatly improving the strength of the bed panel. It has balanced force distribution, strong resistance to pressure, and is equipped with breathable holes, as well as anti slip function. Steel pipes are welded under the bed panel for reinforcement, making the bed solid and durable.

There are drip rack sockets diagonally on the bed frame, and drainage urine bag hooks are placed on both sides of the bed frame. The drip rack can be placed at the bottom of both sides of the bed frame when not in use.

Electric three functions, transforming life (3)h4o

Bedhead and Bedend

The streamlined European version headboard and tailboard are made of ABS reinforced plastic material, blow molded in one go, seamless, easy to clean, non deformed, with hidden locking switches, stable and reliable. The outer side of the headboard is equipped with information card slots and anti-collision corners, with anti-collision function; Symmetrical quick hook seat, can be quickly disassembled.

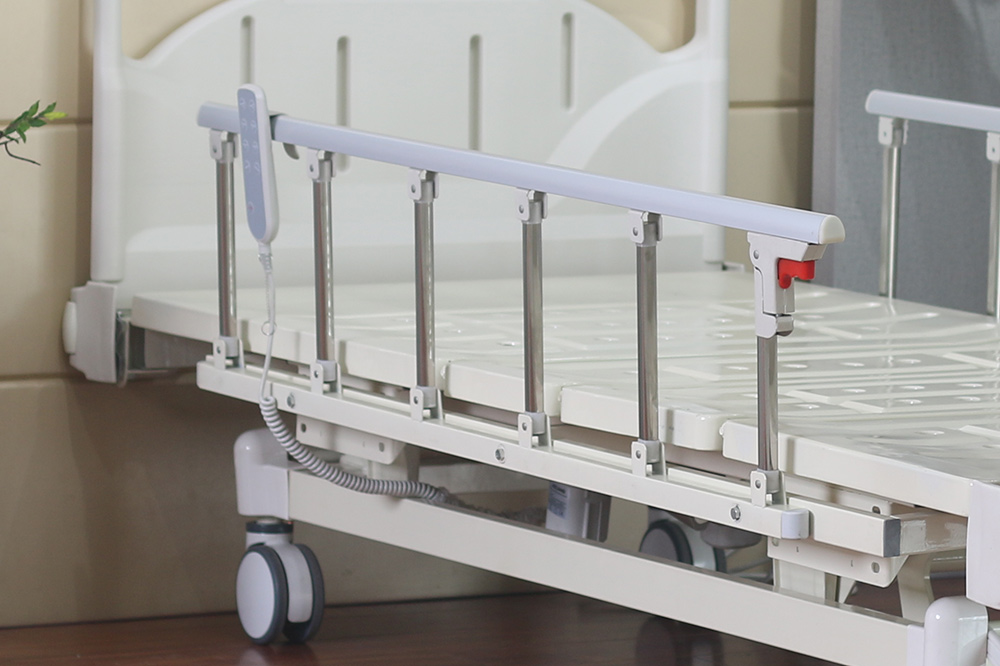

Aluminum alloy guardrail

The total length of the side guardrail is 1200mm, using D-shaped aluminum alloy handrails that have undergone surface hardening treatment, making them sturdy, durable, and aesthetically pleasing. The guardrail is equipped with 5 stainless steel pillars, and the upper and lower connectors are one-time stamped steel parts with a thickness of 2.5mm. The switch is carefully designed to ensure long-term safety. At the same time, it is equipped with anti loosening fasteners, which have the characteristics of wear resistance and non deformation. Shrinkable flat placement, slightly higher than the bed surface when contracted, can effectively prevent the mattress from shifting.

Electric-three-functions,-transforming-life-9mvy

Electric-three-functions,-transforming-life-8xcc

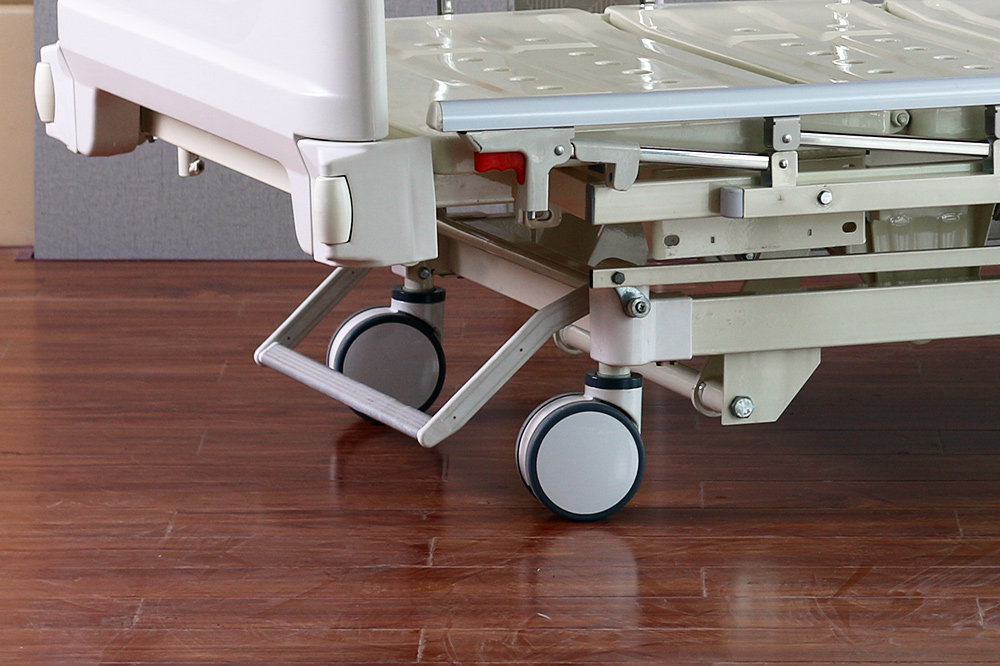

Caster wheels

The product adopts high-end central control casters with a diameter of 125mm. It has the advantages of high load-bearing capacity, smooth operation, and no noise. The control function can be achieved by controlling the stepping and lifting of the horizontal bar. The casters are equipped with fully enclosed self-lubricating bearings, which do not require oil maintenance and can effectively prevent foreign objects from getting involved. Equipped with independent brakes, safe and reliable. The wheel surface is made of TPR polymer wear-resistant material, which is not only wear-resistant but also ensures noise free operation.

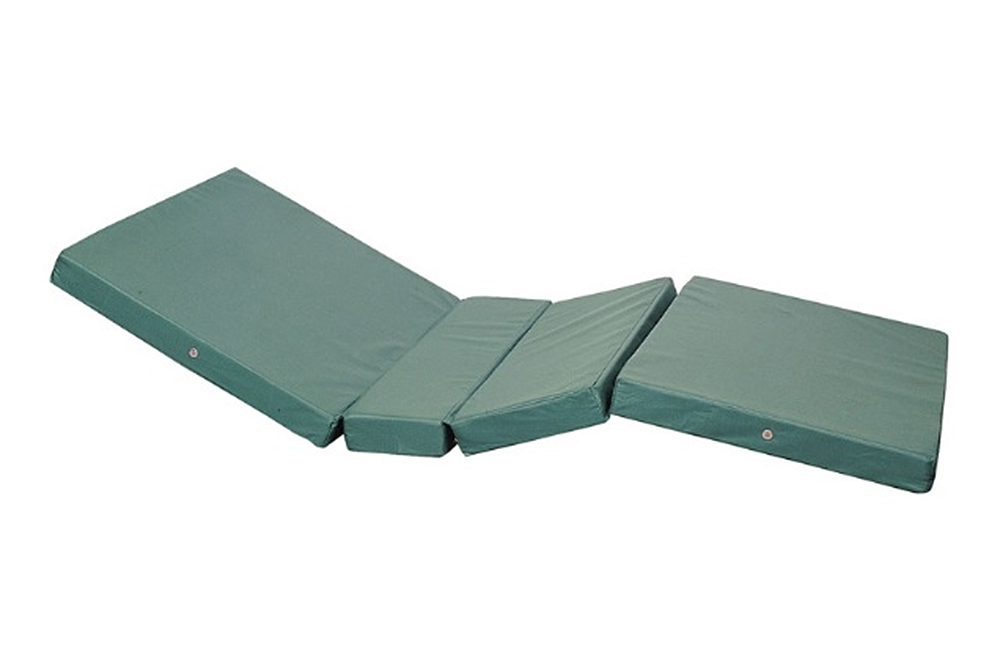

mattress

The overall thickness of the mattress is 80mm, including 40mm sponge and 40mm coconut palm. Can match the size of the bed. The bed cover is made of green single-sided Oxford waterproof fabric material, with zipper settings and reserved infusion hole positions for easy disassembly and washing; The inner layer is made of high-density sponge and machine pressed coconut palm, which has strong breathability and has been treated with insect and deformation prevention.
