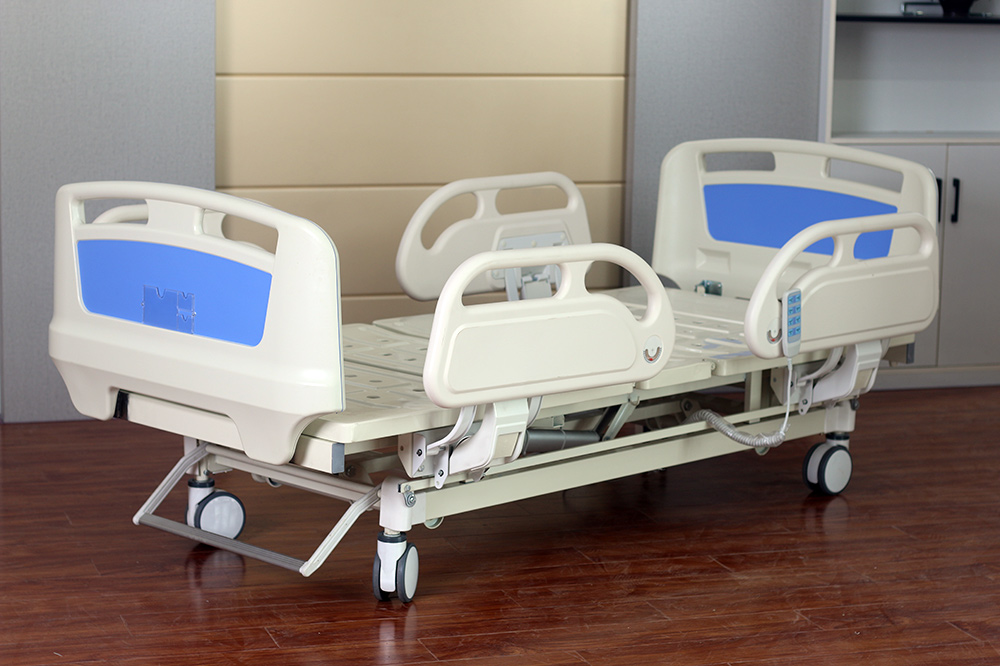

Electric three function bed, a new height of comfortable care

This electric three function bed adopts advanced electric technology, which can easily achieve multiple function adjustments. It can adjust its height to meet the needs of different scenarios, making it easy for medical staff to perform nursing operations and for patients to get on and off the bed. The adjustable back angle function allows patients to sit up comfortably, read, dine, or communicate with others, greatly improving their quality of life. Adjusting the angle of the legs can help promote blood circulation and relieve physical fatigue.

product details

Product Parameters

Product Name	Electric three function hospital bed
key word	Electric nursing bed
Model	HR-D09
size	Product dimensions: Length: 2050mm, Width: 1050mm Product inner diameter dimensions: length: 1950mm, width: 900mm
function	3 functions
Bedhead and Bedend	Reinforced plastic
Work load	170 kilograms
Control method	electric
Caster wheels	High end center console wheels
Specific purpose	Bed care bed
colour	Standard or customized
OEM/ODM	accept
Minimum order quantity	1 set

Product Material

The bed body of the product is made of high-quality 60 × 30 × 1.2mm cold-rolled carbon steel pipes. The bed panel is made of a whole cold-rolled steel plate, which is molded in one go without any welding seams at the four corners. The steel plate thickness is 1.0mm, and reinforcement ribs are filled inside the steel plate to increase strength. At the same time, there are breathable holes. Welding reinforcing ribs around the bed board enhances its load-bearing capacity.

The lifting connection between the hospital bed backrest and the leg board adopts a pipe with a wall thickness of 2.5, which can evenly distribute the weight of the patient on the bed beam. The connection of the bed board adopts steel hinges, which are stamped and formed by molds. The single piece thickness is 4mm, which has wear-resistant characteristics, operates without noise, and can effectively prevent breakage.

The bed can carry a weight of 170kg. The back of the bed adopts a double support structure, which is formed by stamping cold steel plates, greatly enhancing the load-bearing capacity of the backboard, reducing the pressure borne by the rocker, and making the operation more effortless when shaking.

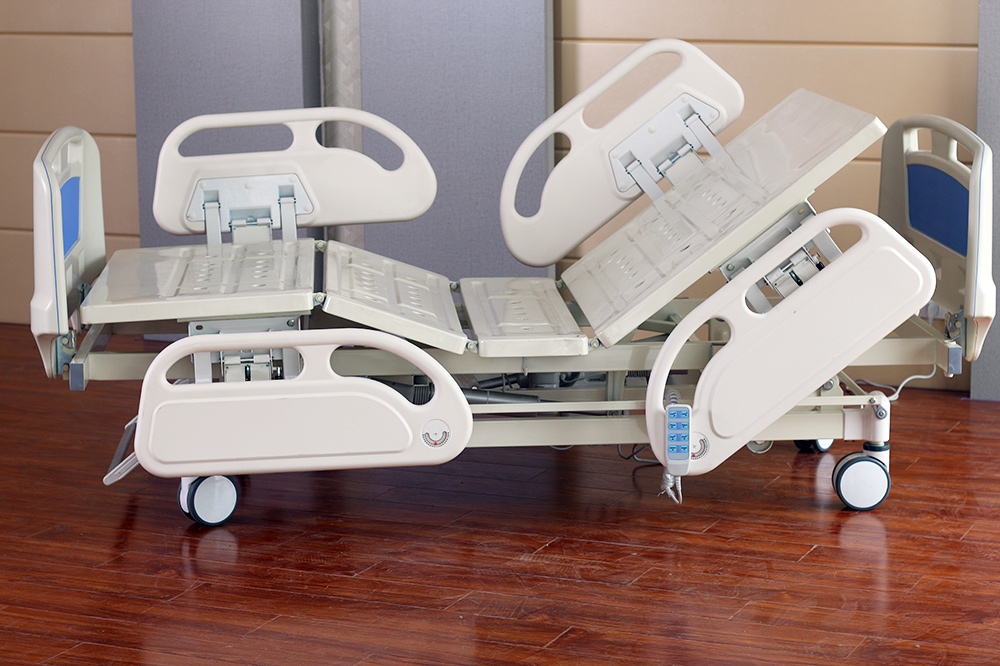

Electric three function bed, a new height of comfortable care (3)w9x

Motor system

Transmission system: Medical motors are used, with 3 motors. The thrust of a single motor can reach 6000N. The motor power parameters are 24V and MAX5.2AMP. The electric motor can achieve back lifting, leg lifting, and overall lifting. Control system: Various functions of the medical bed are completed through manual control board operation, including back lifting (up and down), leg flexion (up and down), and overall lifting (up and down).

Guardrail

High strength ABS damping hidden guardrail, equipped with gas spring buffering for the speed of lifting and lowering the guardrail, extends the service life of the guardrail, and achieves up and down lifting function through a handle switch. Four separate internal containment guardrails, with adjustable back and leg guardrails to enhance the safety and convenience of patients getting on and off the bed.

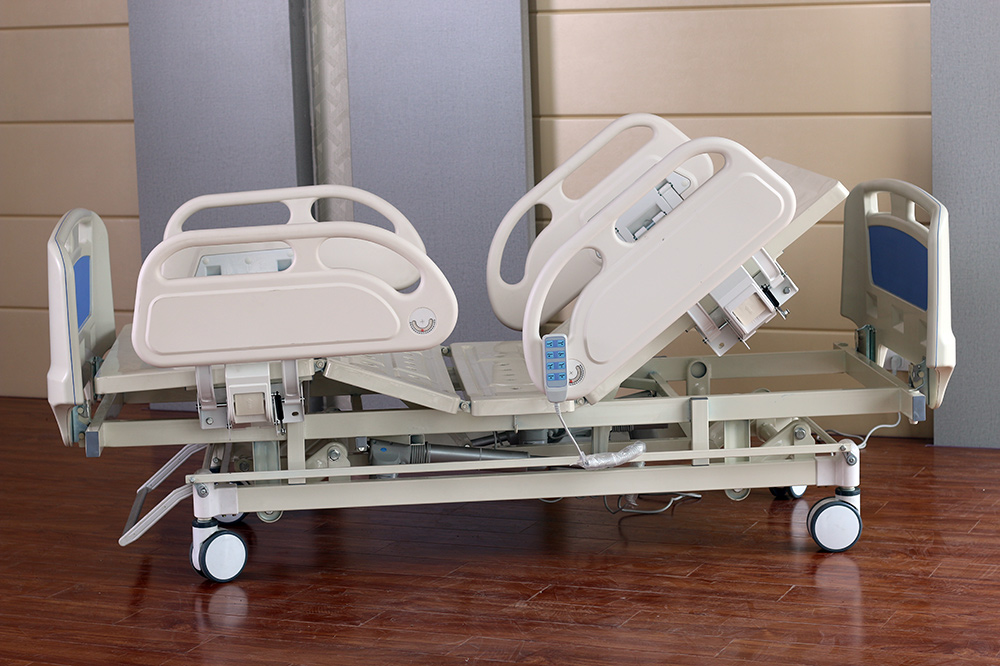

Electric three function bed, a new height of comfortable care (5)wnc

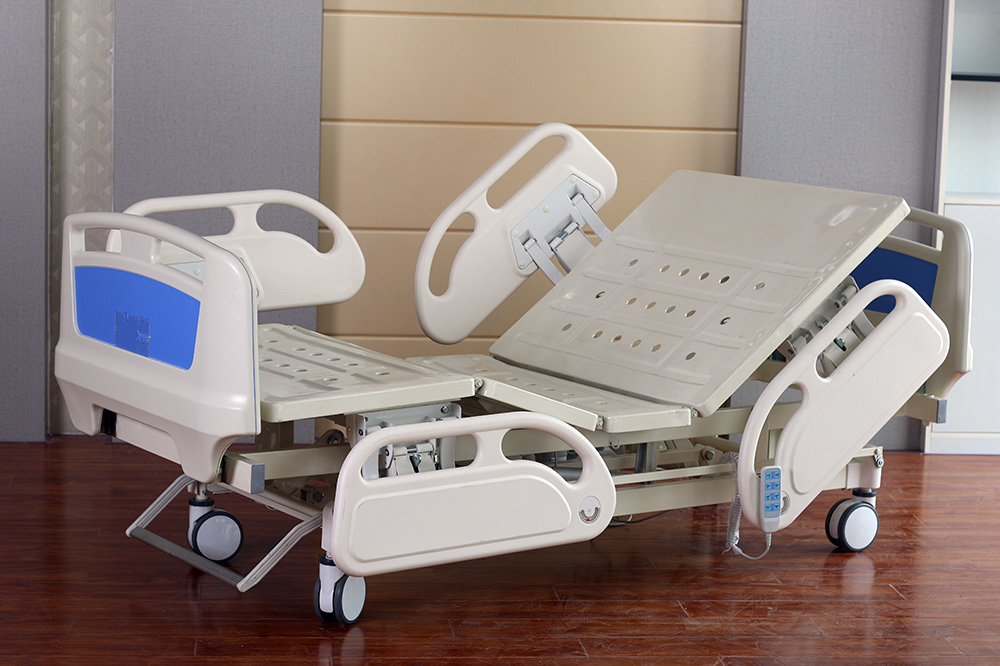

Electric three function bed, a new height of comfortable care (4)zny

Bedhead and Bedend

The headboard and tailboard are made of high-strength engineering plastic molded, with a smooth surface that is easy to clean; Symmetrical quick hook seat, high strength, strong stability, easy disassembly, and can be quickly disassembled.

Caster Wheels

The product is equipped with high-end center console wheels with a diameter of 125mm. It has the advantage of high load-bearing capacity and can easily carry the weight of the bed and users. The operation process is smooth and steady, without producing any noise, creating a quiet and comfortable environment for users. The control function can be achieved by controlling the stepping and lifting of the horizontal bar, which is convenient and efficient to operate. The casters are equipped with fully enclosed self-lubricating bearings, which do not require refueling and maintenance, reducing maintenance workload.

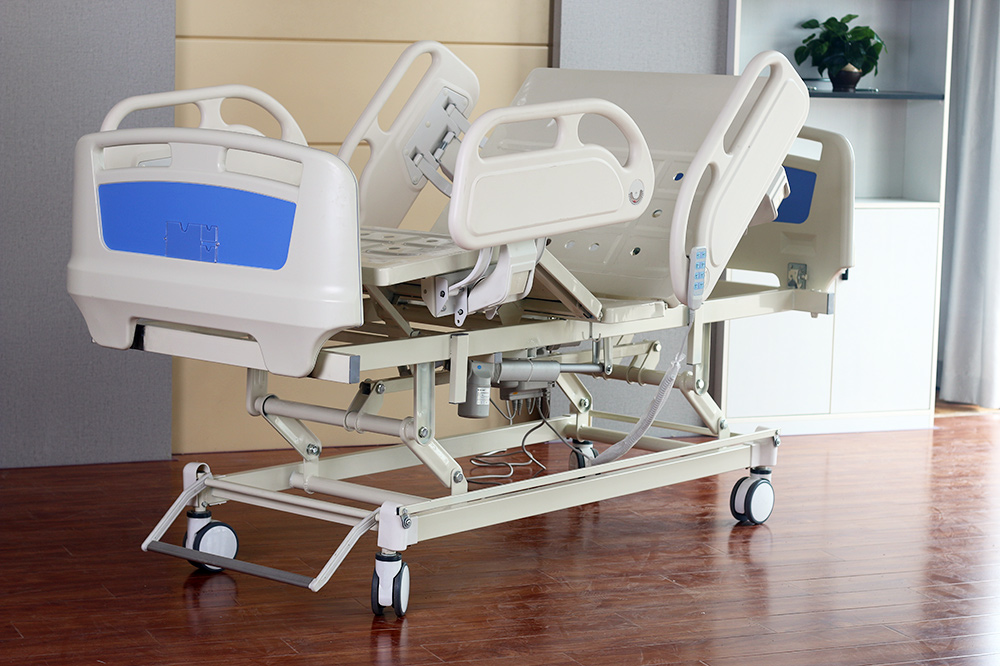

Electric three function bed, a new height of comfortable care (8)10k

At the same time, they can effectively prevent foreign objects from getting involved, ensuring safe use. In addition, the casters have independent braking function, which can stably fix the position of the bed when needed. The wheel surface is made of TPR polymer wear-resistant material, which not only has excellent wear resistance, but also does not produce noise during use.
