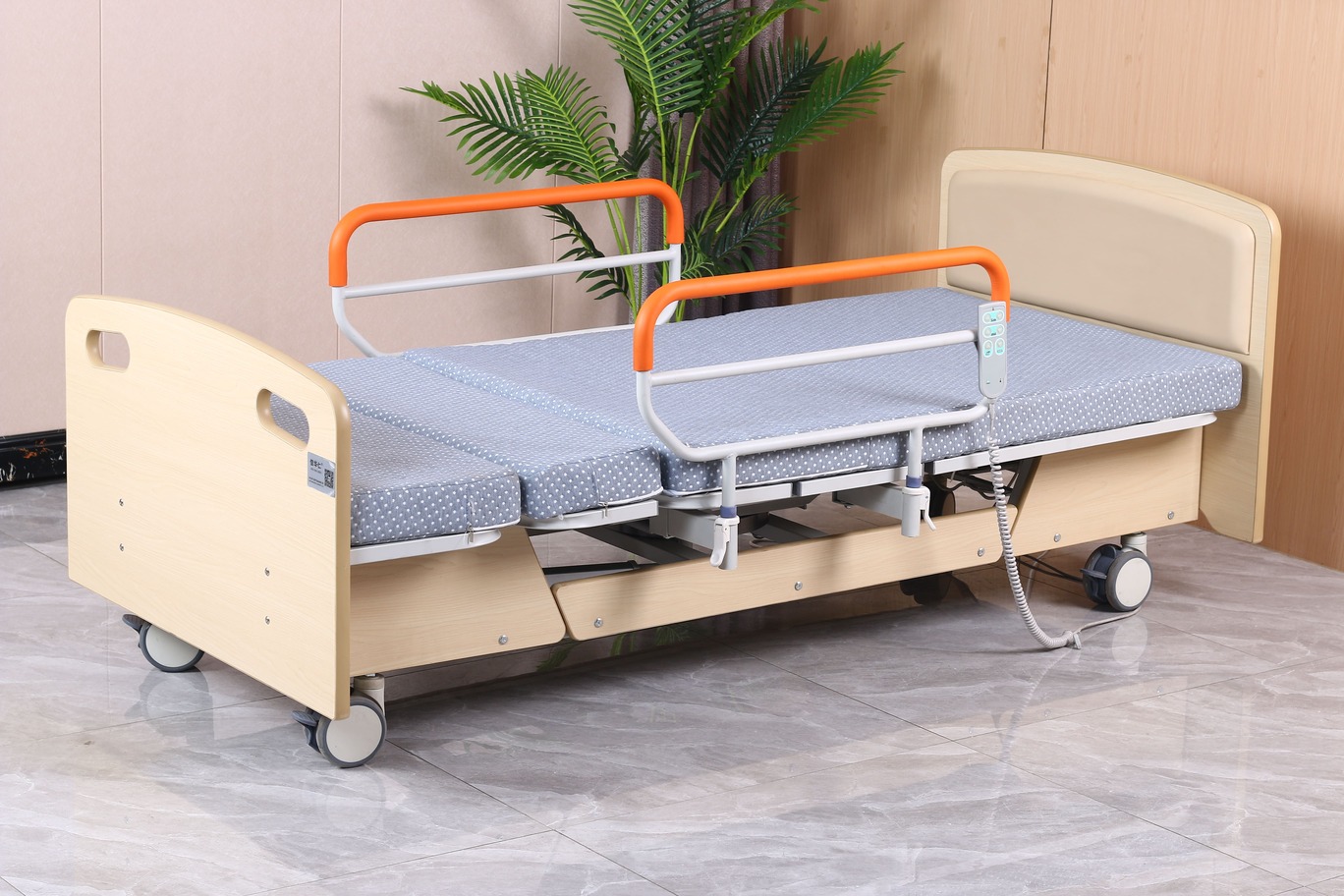

1. Outer‑dimension size Outer‑dimension size: Length 2060 * Width 980 * Height 480mm ±10mm (including mattress)
Inner‑dimension size: Length 2000 * Width 900 * Height 400mm ±10mm (excluding mattress)

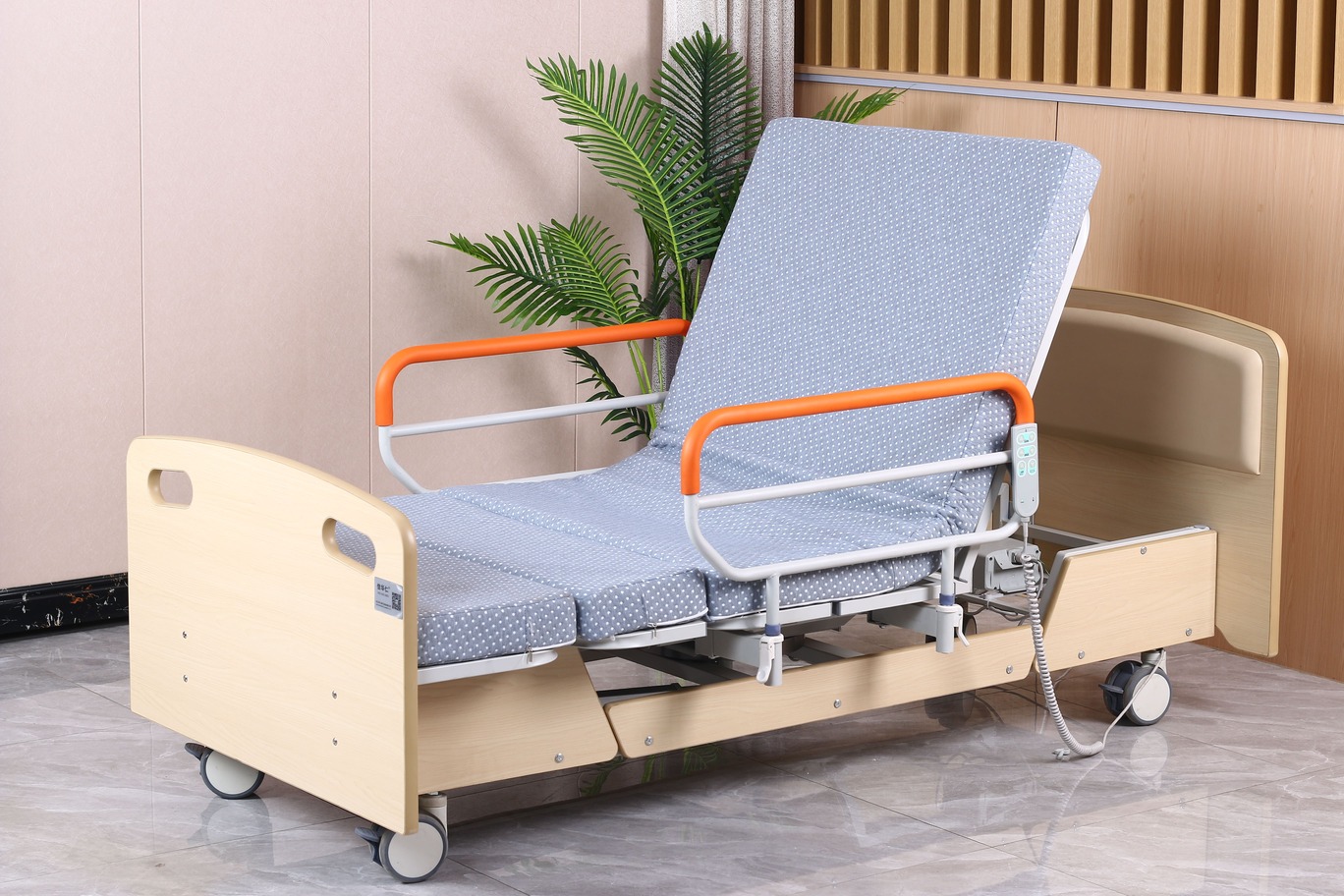

2. Functions & Adjustment angles Functions: Back‑raising, upper‑leg bending, rotation (left‑right direction manually adjustable).
Adjustment angles: Back‑raising angle: 0°‑75°, upper‑leg bending angle: 0°‑35°, bed body rotation angle: 90°

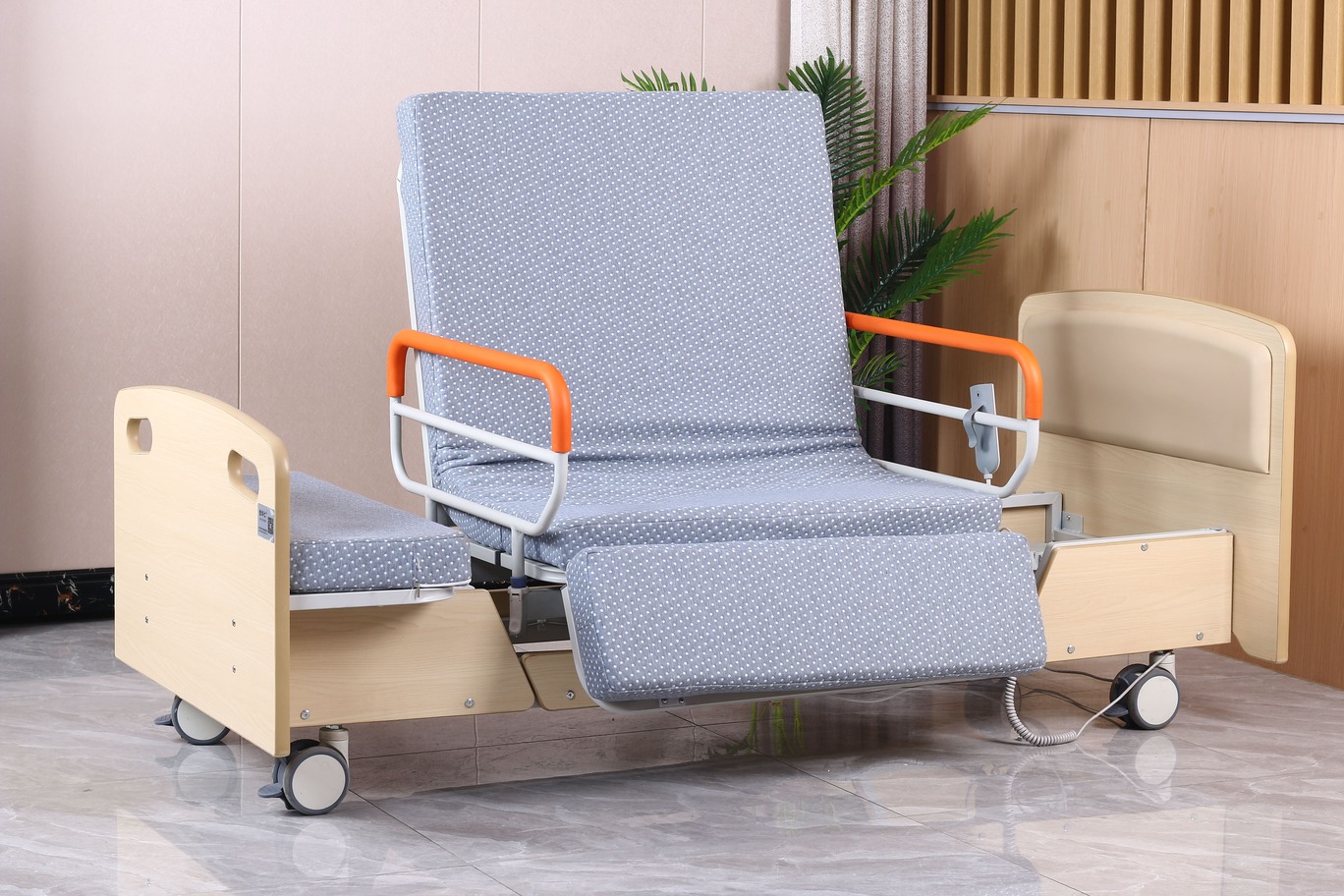

3. Rotation Function When using the rotation function, leave 50 cm of space on the left and right sides. During rotation, the backrest will automatically adjust to the 40° comfortable position; when the device is rotated to a 90° angle relative to the bed frame, the backrest rises and the legs bend downward, allowing the user to exit the bed using the side railings.
4. One‑Tap Reset Function Long‑press to reset all functions to their original settings in sequence.
5. Headboard and footboard enclosures The headboard and footboard adopt multi‑layer boards (with soft upholstery) for color decoration to better match home styles. Considering the walking‑assistance function for the elderly in elderly care centers and households, the headboard features rounded corners with no sharp right‑angle edges.
6. Battery The battery installed within the control box can automatically switch to operating on the built‑in power source during a power outage, ensuring that the nursing bed remains fully functional even in the absence of mains power. As the battery is built‑in, there is no need to charge it separately; when plugged into the power supply, the battery will charge automatically and, upon reaching full capacity, will automatically switch to the backup power circuit. Therefore, there is no need to concern yourself with the potential impact of prolonged charging on the battery's performance.
7. Materials The bed frame is constructed from 30×60 mm square steel tubes with a wall thickness of 1.2 mm; the bed panel is formed by welding an iron mesh surface to enhance its strength, ensure uniform load distribution, and provide high compressive resistance. The panel is also equipped with ventilation holes for anti‑slip functionality, making it sturdy and durable. All bed assembly components are manufactured from thick‑walled steel tubing (wall thickness ≥ 2.75 mm) or stamped from 3 mm cold‑rolled steel sheet.
8. Dual‑side guardrails Plastic‑coated steel round tubes with a diameter of 22 mm – sturdy and durable.
9. Mattress The outer layer is made of knitted fabric, offering comfortable touch, attractive appearance, and easy disassembly and washing; the inner layer features 8 cm high‑elasticity foam – soft, comfortable, moisture‑absorbent, and breathable.
10. Casters Equipped with 5‑inch high‑quality dual‑sided silent casters featuring built‑in fully enclosed self‑lubricating bearings (to extend service life), requiring no additional lubrication or maintenance, preventing foreign object entrapment, and featuring independent braking systems; the caster surfaces are made of TPR polymer wear‑resistant material – offering durability, quiet operation, and smooth, effortless mobility.
11. Surface Coating The entire bed is coated with an electrostatic powder coating: the coating is an antibacterial material that provides antibacterial and antiseptic properties, resistance to acid and alkali corrosion, and color retention, effectively extending the service life of the bed.
12. Load Capacity The bed can support a load of up to 240 kg.
13. Configuration List
