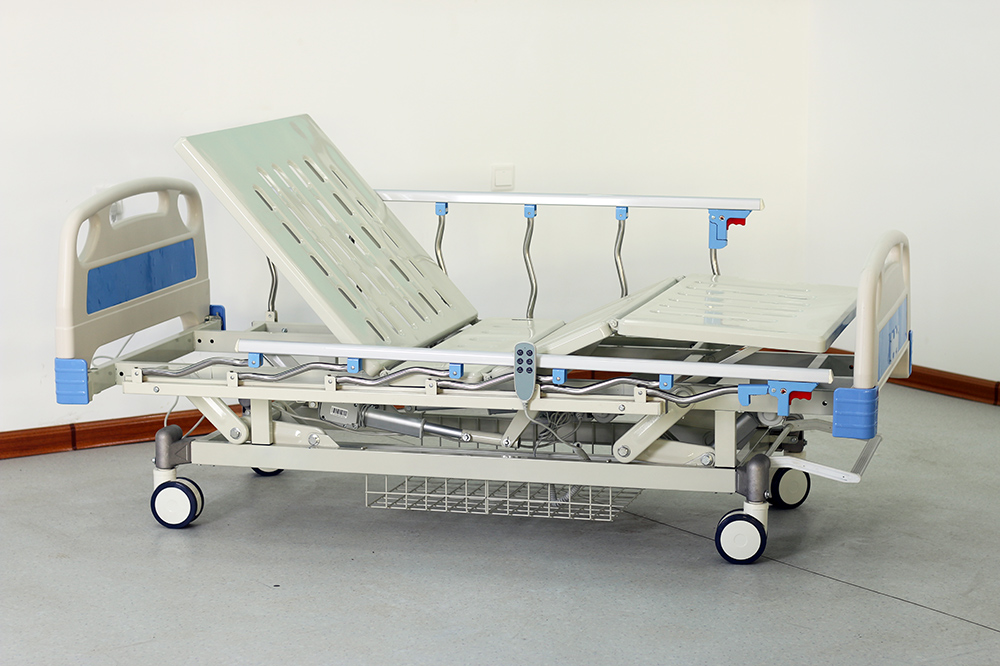

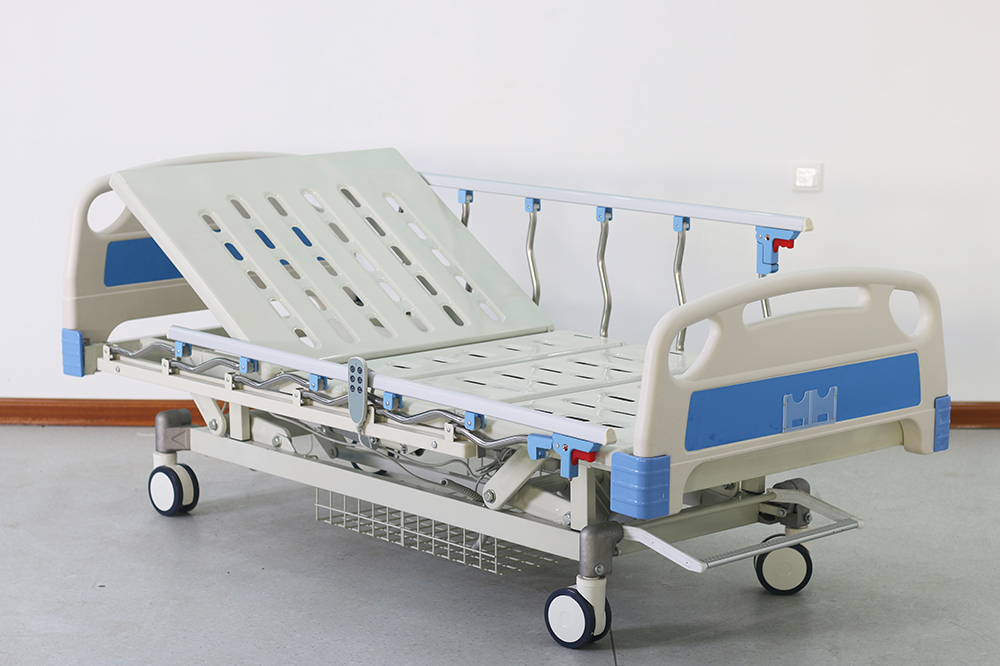

Electric power three function hospital bed: innovative technology, caring protection

Adopting electric button operation, patients and their families can operate it themselves, which is convenient and fast. Compared to manual hospital beds that require a lot of effort to adjust through joystick and other methods, electric operation is easier. Simply press the corresponding button to quickly and accurately adjust various functions, saving energy and time. Especially for patients who are physically weak or have limited mobility, they can also operate independently, enhancing their autonomy and convenience in self-care.

product details

Product Parameters

Product Name	Electric power three function hospital bed
key word	Electric nursing bed
Model	HR-D13
size	Length: 2050mm, Width: 960mm, Height: 430-680mm
function	3 functions
Bedhead and Bedend	Reinforced plastic
Work load	170 kilograms
Control method	electric
Caster wheels	High end center console wheels
Specific purpose	Medical bed
colour	Standard or customized
OEM/ODM	accept
Minimum order quantity	1 set

Product materials

The bed body is made of high-quality cold-rolled carbon steel pipes, and the bed panel is formed by one-time stamping of high-quality cold-rolled carbon steel plates, which improves the strength of the bed panel, balances the force, has strong resistance to pressure, and is equipped with ventilation holes and anti slip function; The welded steel pipe below is reinforced, solid and durable.

Electric power three function hospital bed innovative technology, caring protection (2)5rc

electric machinery

Adopting CE certified low-voltage DC silent motors to ensure long-term safety and low noise, the remote control has a one click CPR function, eliminating the need to restore various functional states in sequence and simplifying the operation process.

product details

There is a drip rack socket at each diagonal of the bed frame. The bed frame is equipped with drainage urine bag hooks on both sides. When the drip rack is not in use, it can be placed at the bottom of both sides of the bed frame.

The entire bed is treated with electrostatic powder coating. The bed coating adopts antibacterial coating, which is resistant to bacteria, bacteria, acid and alkali corrosion, and discoloration, effectively extending the service life.

Bedhead and Bedend
- The streamlined European version headboard and tailboard are made of ABS reinforced plastic material, which is blow molded once without any gaps. It is not only easy to clean, but also sturdy, durable, and not easily deformed. It has a hidden locking switch to ensure stable and reliable use. The outer side of the bed tail board is equipped with an information card slot and a collision avoidance corner, which has good collision avoidance function. In addition, there is a symmetrical quick hook seat that can achieve quick disassembly.
01

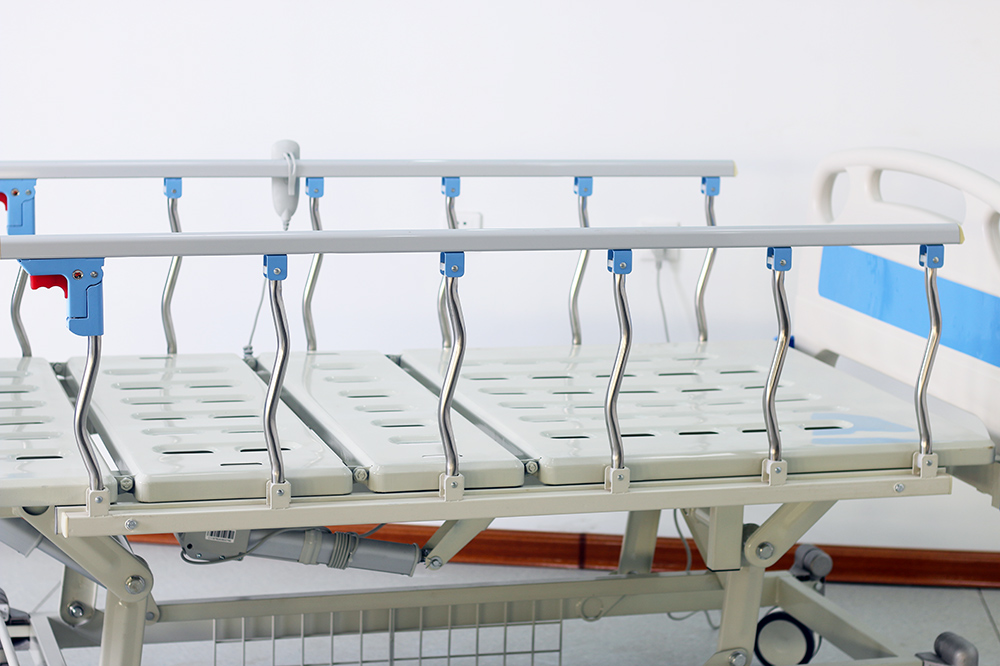

Aluminum alloy guardrail
- The total length of the side guardrail is 1180mm, and the handrail is made of D-type aluminum alloy material, which has undergone surface hardening treatment, making it sturdy, durable, and aesthetically pleasing. The guardrail is equipped with 5 stainless steel pillars, and the upper and lower connectors are made of one-time stamped steel parts with a thickness of 2.5mm. The carefully designed switch ensures long-term safety and is equipped with anti loosening fasteners, which have the characteristics of wear resistance and non deformation. Shrinkable flat placement, slightly higher than the bed surface when contracted, can effectively prevent the mattress from shifting.
02

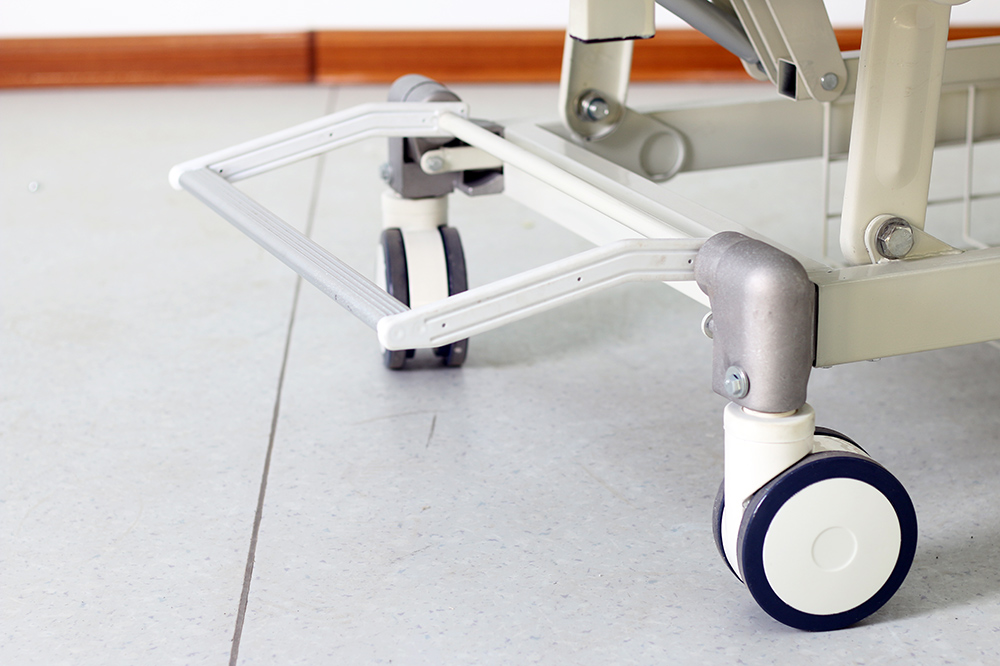

Wheels
- Adopting high-end center console casters with a diameter of 125mm. High load-bearing capacity, smooth operation and no noise. The control function can be achieved by controlling the stepping and lifting of the horizontal bar. The casters are equipped with fully enclosed self-lubricating bearings, which do not require oil maintenance and can effectively prevent foreign objects from getting involved.
03
