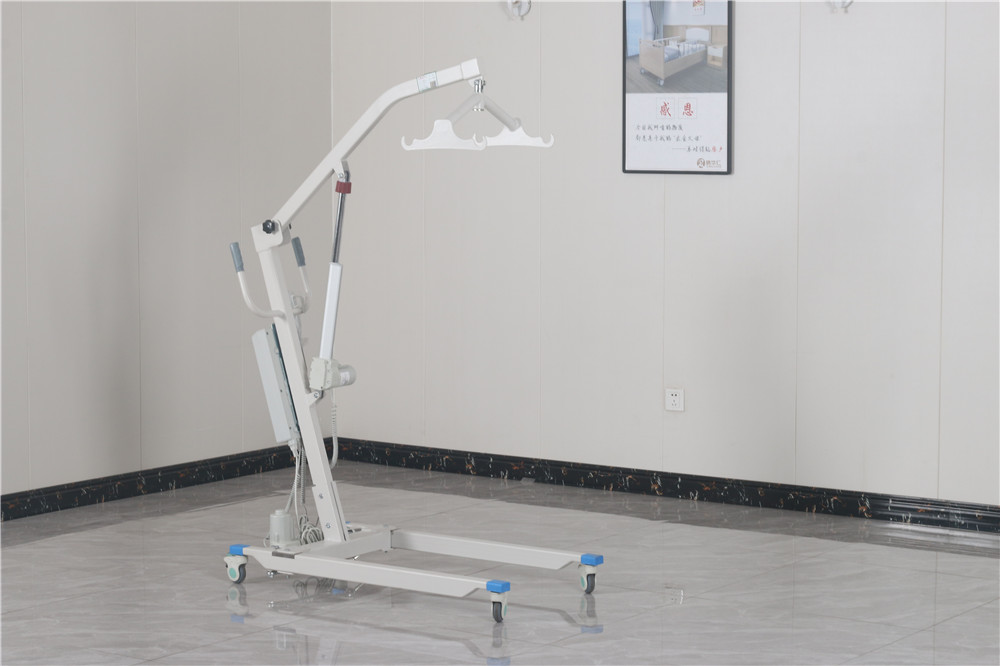

Electric power assistance, convenient shifting - electric shifting machine

Electric shift machine is a highly practical auxiliary equipment.
It is mainly used to assist people with limited mobility, such as the elderly and disabled, in safe and convenient location transfer.

Product Material:
1. The base and column are made of high-quality rectangular steel pipes of 40 * 60 * 3.0mm, the base crossbeam is made of high-quality rectangular steel pipes of 60 * 80 * 4.0mm, and the lifting arm is made of high-quality rectangular steel pipes of 30 * 50 * 2.5mm. They are welded together as a whole, welded firmly, with smooth and sturdy welding joints. The surface is treated with baking paint, without scratches, burrs, or edges.

product details

Product Parameters

Product Name	Electric displacement machine
key word	Shift machine
Model	YWJ-01
Size	Product dimensions: Length 1090mm * Width 550 * Height 980-1900mm (highest point of boom) Crane arm lifting height: 980-1900mm Base opening and closing dimensions: 550-1070mm Base height: 130mm Ground clearance of base: 70mm
Work load	120KG
Control method	electric
Specific purpose	Assist in sitting up

Function Configuration

Number of motors

Two sets of Qingdao Haojiang brand motor push rods, rated power: AC100-220V/50HZ, rated power: ≤ 120VA, can be controlled by remote control handles to lift and lower the boom, open and close the legs, and the controller can also control the boom lifting.

Battery

The controller has a built-in battery pack, and it takes about 6.5 hours to fully charge the battery. It can be used for lifting operations between 40 (80kg) and 60 (40kg) times. The number of uses must be determined according to the patient's weight, and excessive discharge should not affect the battery life. It is estimated that 20% -30% of the remaining power can be used for charging.

Emergency stop function

To prevent special situations caused by improper operation by users, the controller is equipped with an emergency stop button. If a special situation is sent, the "red emergency stop" function button can be pressed to immediately stop all functions. After accidental release, the "red emergency stop" can be rotated to the right to continue operation.

Specialized mesh cloth straps with multiple layers of different colored straps for easy adjustment of caregiver posture.

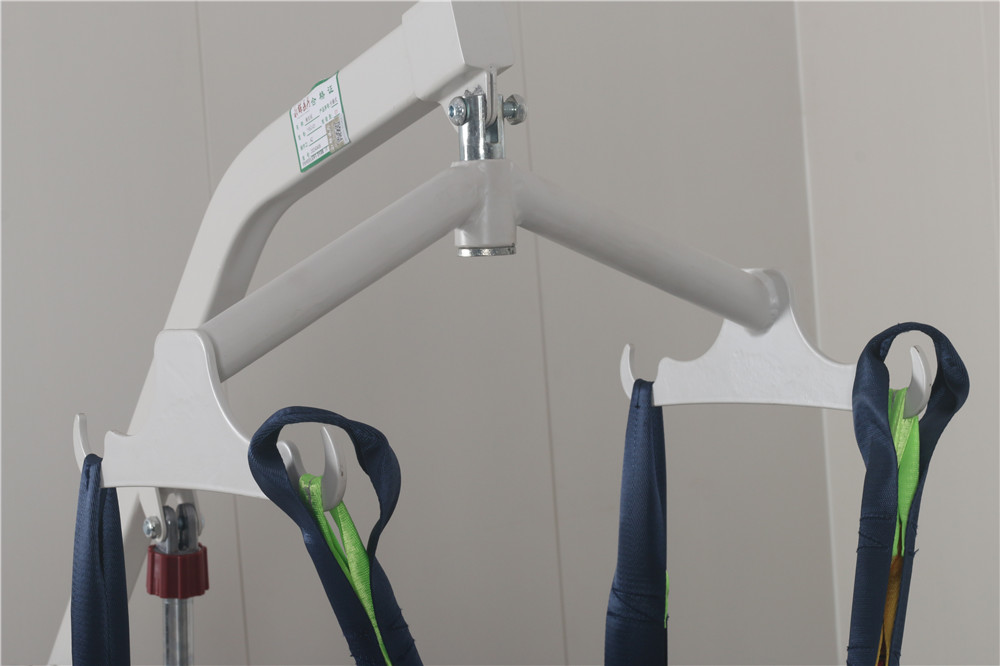

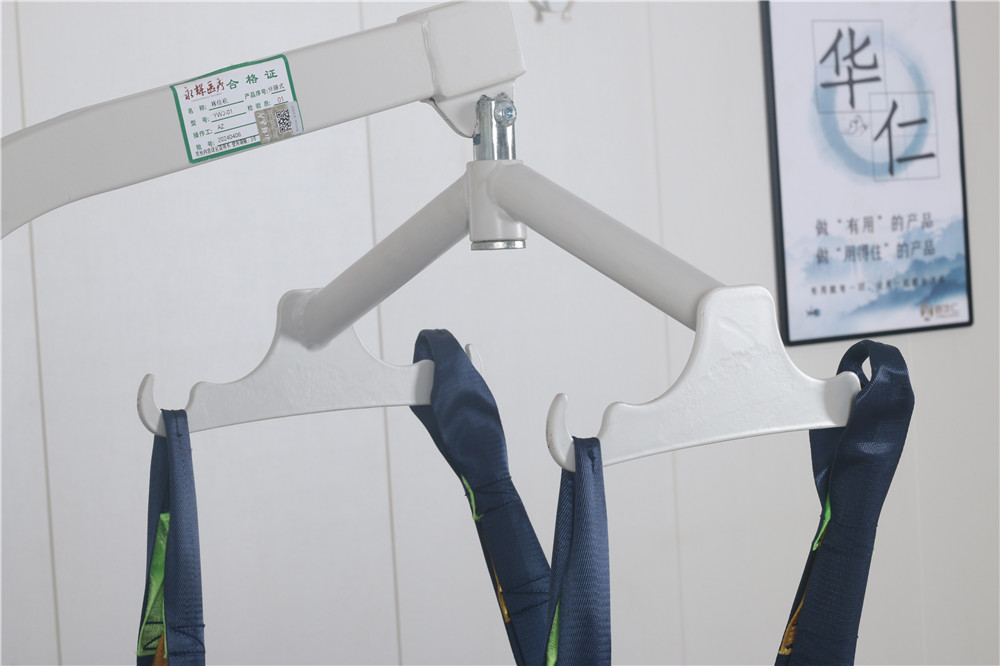

The lifting arm and suspension ring can rotate 360 °, making it easy to transfer the direction of the caregiver's position.

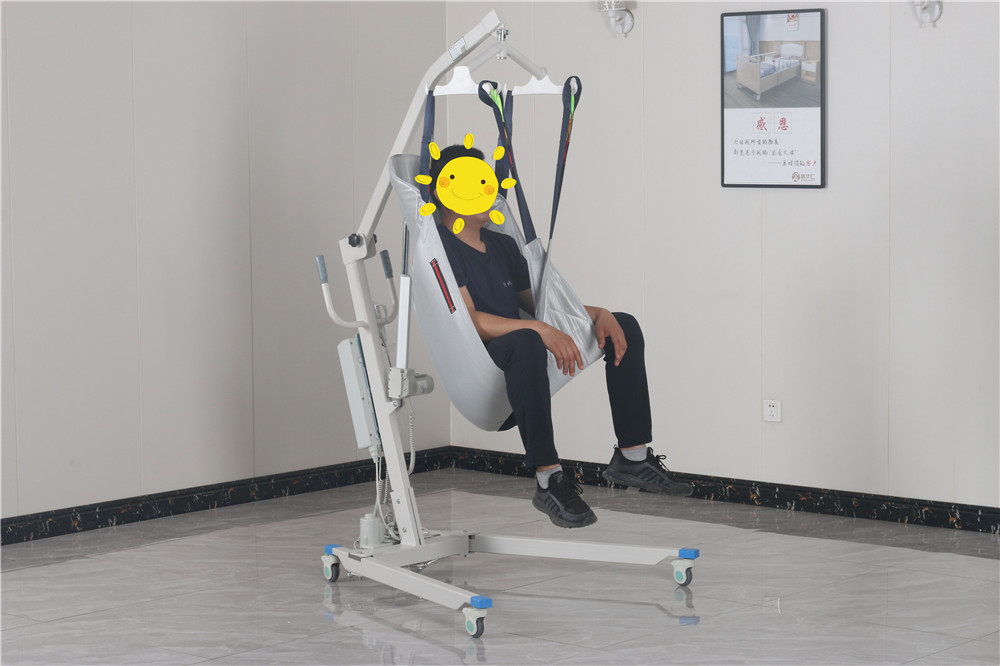

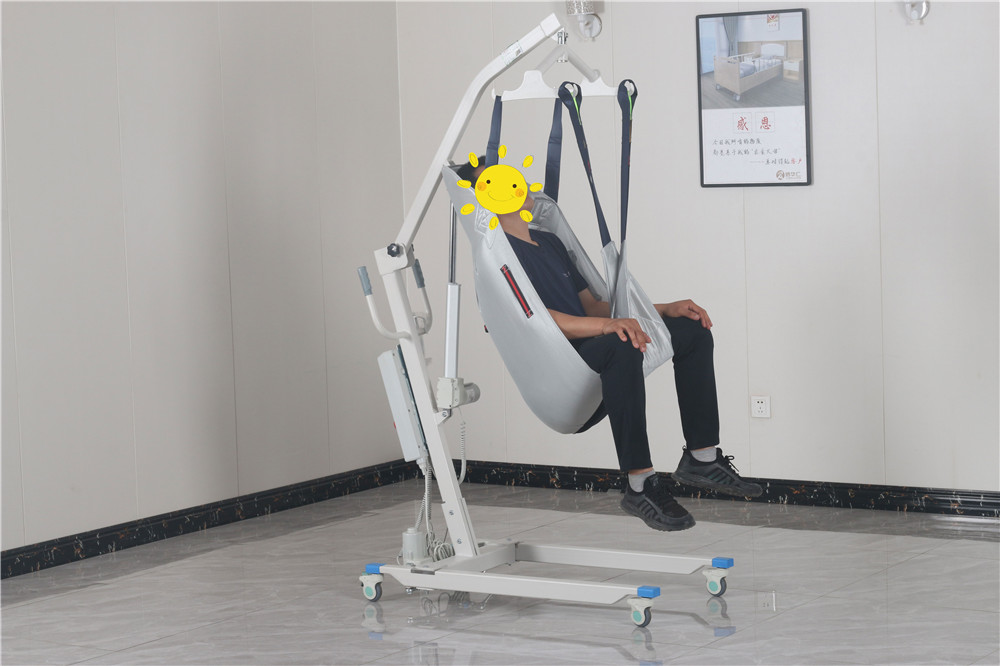

Dragging lifting
- Electric lifting, which can move the patient to other positions using a dedicated sling. The base can be opened with legs to use more scene space. The rear wheel has a brake function to prevent nursing staff or patients from being injured due to the movement of the lifting machine when lifting the patient.
