Electric five function hospital bed: a fusion of comfort and convenience

The electric five function hospital bed has the functions of electrically adjusting height, back angle, leg angle, overall tilt angle, and side rails. These features can meet the different needs of patients and provide a comfortable and safe nursing environment. Usually used in hospitals and medical institutions to provide high-quality care and comfortable beds for patients.

product details

Product Parameters

Product Name	Electric five function hospital bed
key word	Electric nursing bed
Model	HR-D22
size	Length: 2130mm, Width: 1050mm
function	5 functions
Bedhead and Bedend	Reinforced plastic
Work load	240 kilograms
Control method	electric
Caster wheels	High end center console wheels
Specific purpose	Medical bed
colour	Standard or customized
OEM/ODM	accept
Minimum order quantity	1 set

Product Material

The bed frame is made of high-quality cold-rolled carbon steel pipes with dimensions of 60 × 30 × 1.2mm. The bed panel is made of a high-quality cold-rolled steel plate with a thickness of 1.0mm, which is molded in one step and designed with circular guiding technology around it. It has a porous structure, which is conducive to breathability and also has anti slip function. Multiple reinforcing ribs are welded internally around the bed board to enhance its strength and load-bearing capacity. The back and leg lifting structure adopts a double support structure, ensuring even and balanced force distribution and strong compressive strength.

The bed can carry a weight of 240kg.

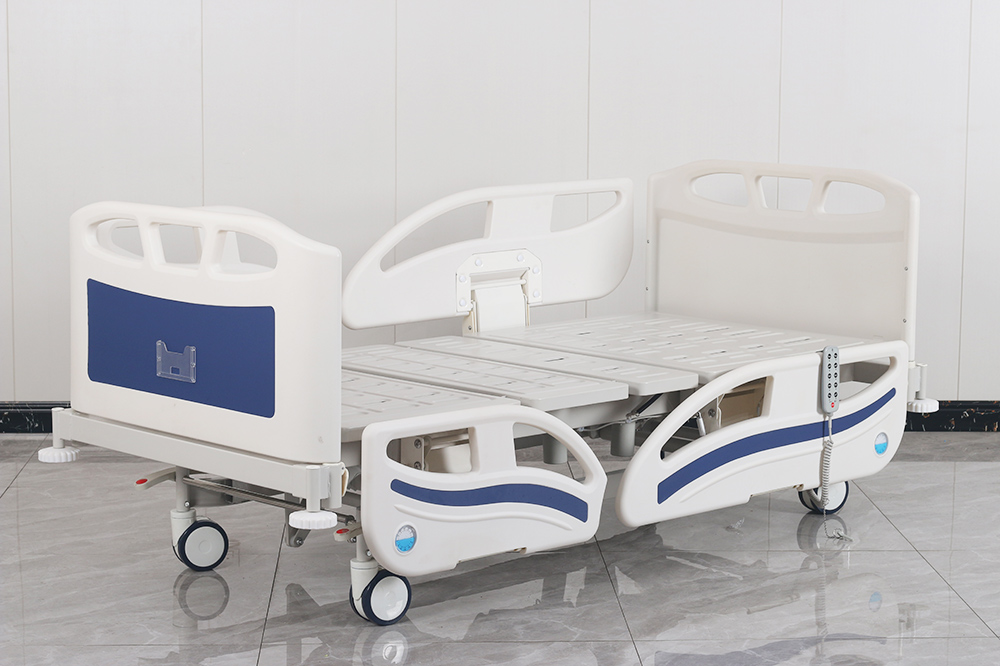

Electric five function hospital bed a fusion of comfort and convenience (2)eze

electric machinery

The use of CE certified low-voltage DC silent motors ensures long-term safety and low noise during operation.

guardrail

Four piece detachable ABS guardrail, installed on the bed panel, can move synchronously with the functions of the bed. It can lift up and down, and is equipped with a pneumatic deceleration device during the descent process to prevent injury to personnel caused by excessive speed during the descent.

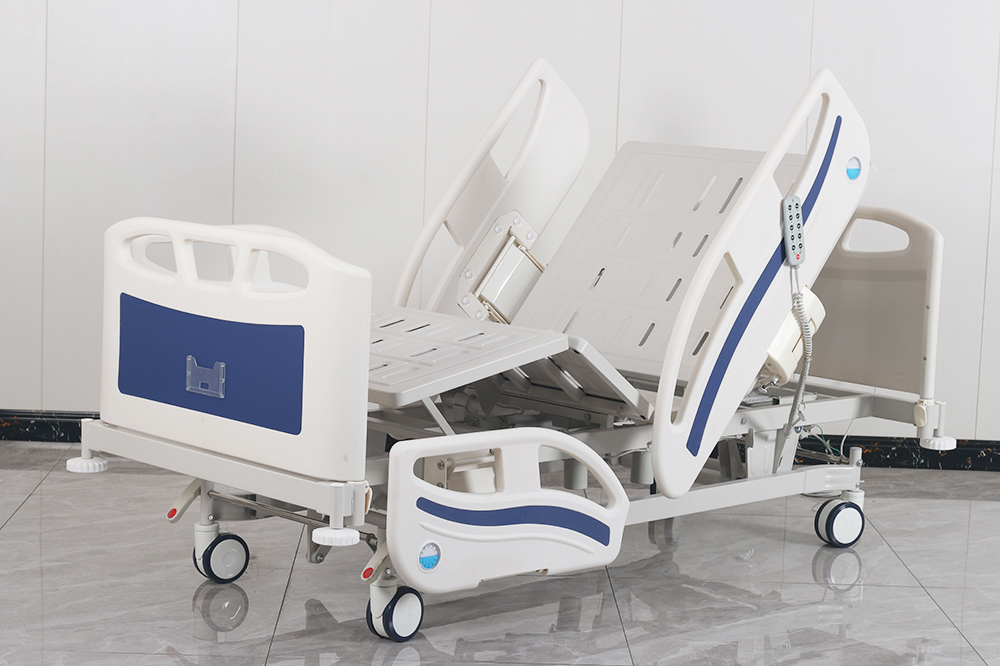

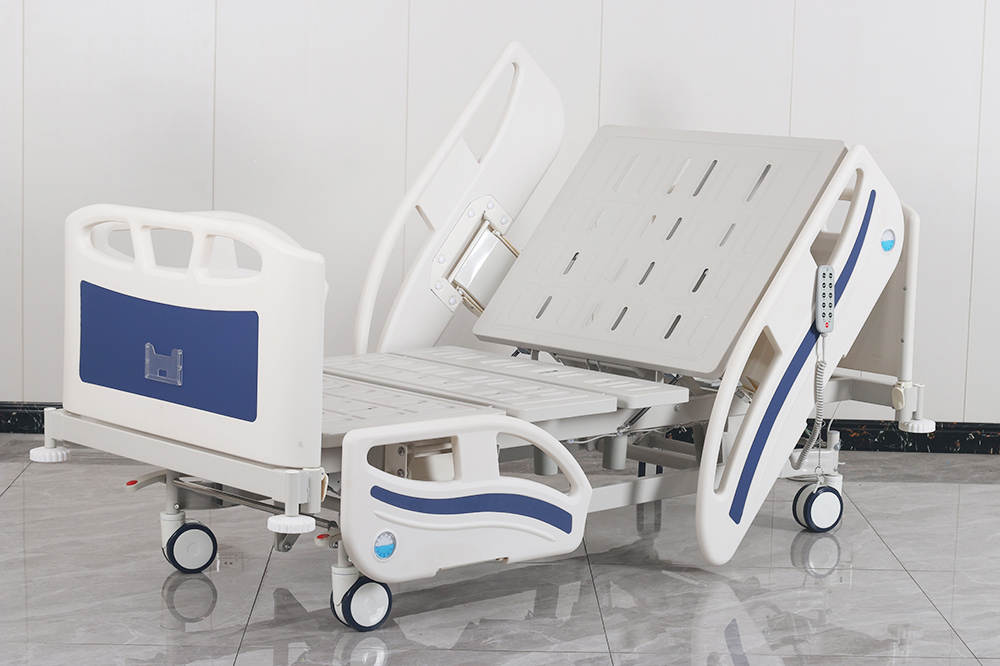

Electric five function hospital bed a fusion of comfort and convenience (3)k4m

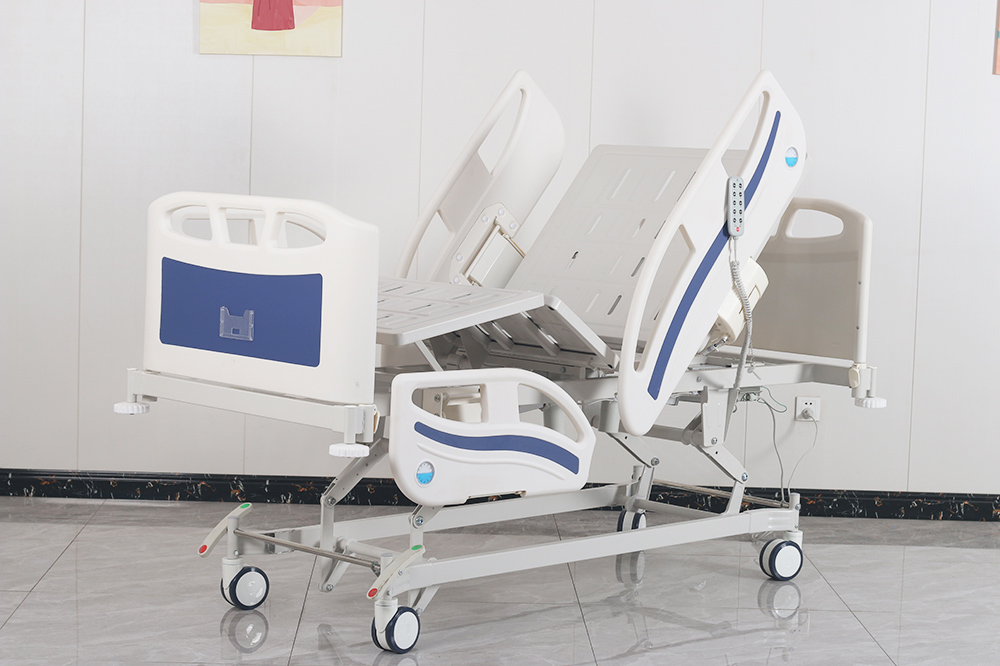

Electric five function hospital bed a fusion of comfort and convenience (5)oj6

Bedhead and Bedend

The streamlined European version headboard and tailboard are made of ABS reinforced plastic material, which is molded in one go, has no gaps, is easy to clean, and does not deform. Hidden locking switch, stable and reliable. There is an information card slot on the outer side of the bed tail board, and the four corners of the bed are equipped with anti-collision wheels, which have anti-collision function; Adopting a plug-in structure, it can be quickly disassembled.

Caster wheels

Adopting high-end central control casters with a diameter of 125MM, it has a large load-bearing capacity, runs smoothly and quietly. The control function is achieved by controlling the stepping and lifting of the horizontal bar. It is equipped with fully enclosed self-lubricating bearings, which do not require refueling and maintenance, and can prevent foreign objects from being involved. It also has independent brakes. The wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant and noise free.

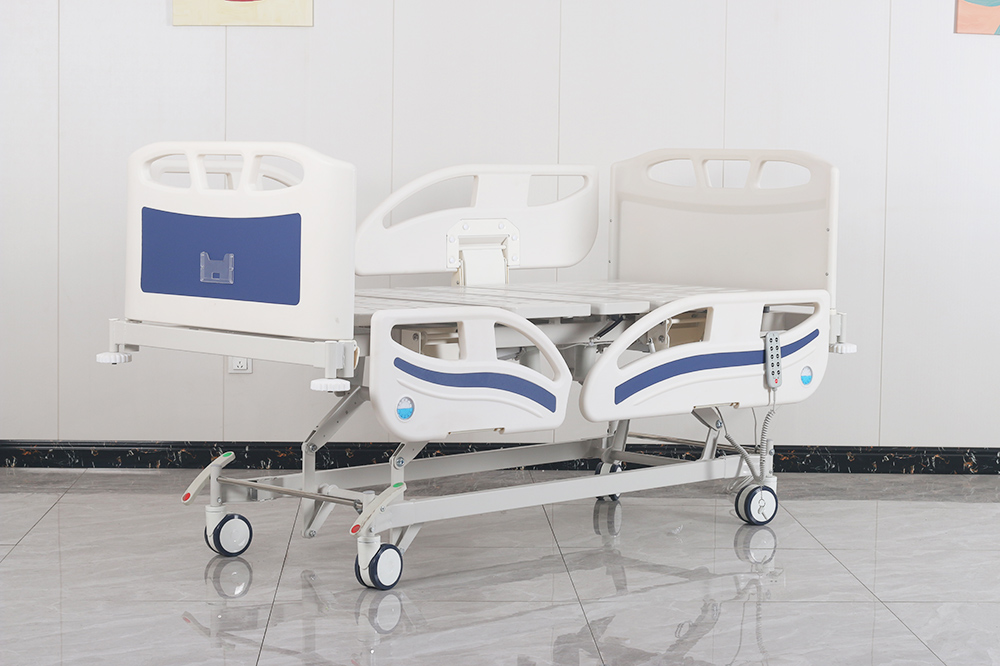

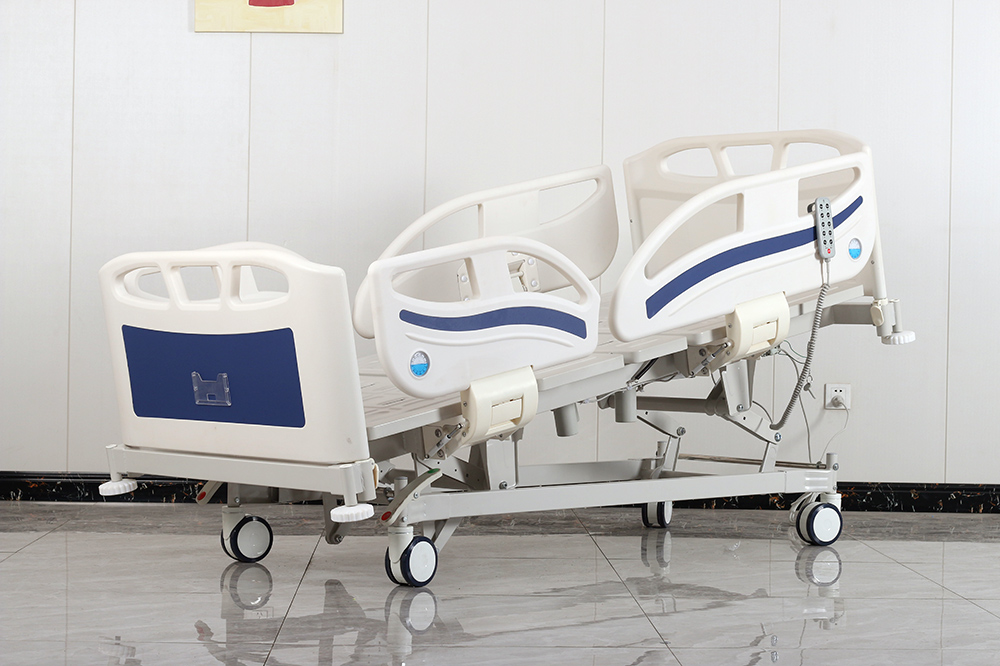

Electric five function hospital bed a fusion of comfort and convenience (6)w7g

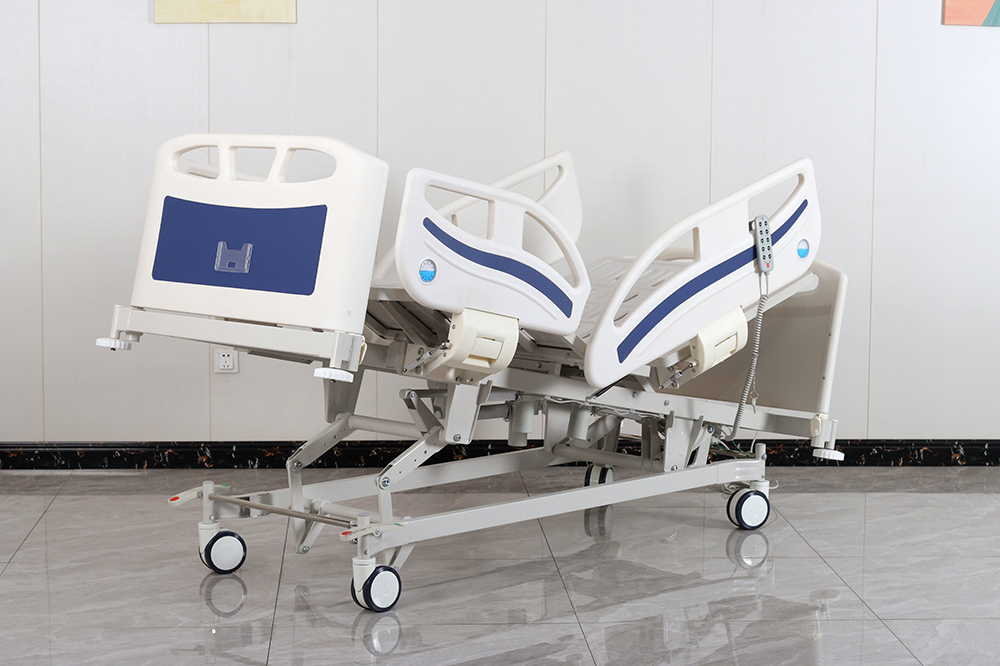

Electric five function hospital bed a fusion of comfort and convenience (8)mt9

spray

The entire bed is treated with electrostatic powder coating. The bed coating adopts antibacterial coating, which has the characteristics of antibacterial, acid alkali corrosion resistance, and fading resistance, and can effectively extend the service life. The powder coating sprayed on the surface of the bed achieves antibacterial, anti mold, environmentally friendly, non-toxic and harmless effects.
