Electric bath bed, conveying warm love

Electric bath bed is an innovative bathing device designed specifically for people with limited mobility.

Material and process:
1. The bed frame is made of high-quality rectangular steel pipes of 30 * 60 * 1.2mm, and the connecting parts are made of 3mm thick stamped steel parts. The welding is firm, smooth, sturdy and durable, with a surface treated with baking paint, no scratches, burrs, edges or corners, and a movable bracket. The back bed plate adopts a double "V" - shaped double support unloading structure, which evenly and disperses the unloading force, greatly improving the safety performance of the hospital bed.

2. Bed spraying process:
The surface of the bed is sandblasted and rust removed with steel balls, and then electrostatically sprayed. The bed is coated with anti-static powder, which is resistant to acid and alkali corrosion and fading.

product details

Product Parameters

Product Name	Electric shower bed
key word	Bathing bed
Model	HR-X02
Size	Dimensions: Length 2160 * Width 830 * Height 720-950mm (including guardrail) Inner diameter dimensions: length 1960 * width 530 * height 440-670mm (excluding guardrails)
Caster wheels	5-inch high-end double-sided silent casters
Work load	240KG
Control method	electric
guardrail	Stainless steel fully enclosed guardrail
Specific purpose	Assisted bathing

Product Details

Number of motors

Two sets of Dewo brand motor push rods are controlled by remote controllers for overall lifting and back tilting.

Adjustment range

The overall lifting range of the bed surface is 440-670mm (excluding guardrails)

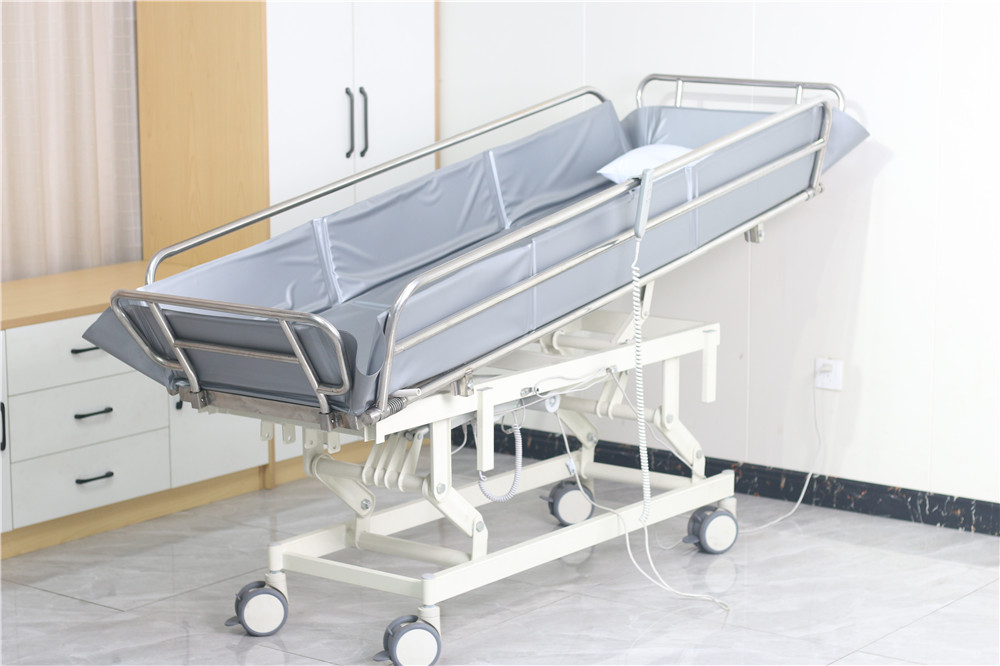

Back tilt angle: 0-15 °

Guardrail

There are foldable stainless steel full enclosed guardrails on both sides with locking structural components. The guardrails can be rotated 180 ° and lowered. The headboard and footboard of the bed are clip on plug-in stainless steel guardrails, which are safe, secure, and convenient to get in and out of the bed, reducing secondary injuries.

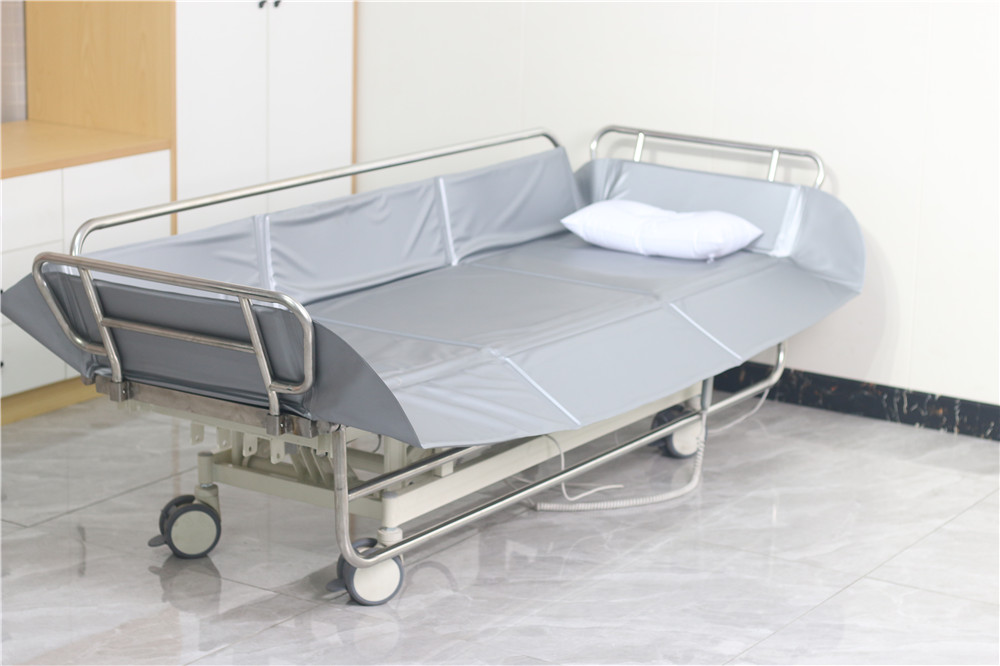

Mattress

Made of high toughness and environmentally friendly kayak materials that meet standards such as ROSH/EN71; High density EVA sandwiched inside the pad; Soft and comfortable, resistant to high and cold temperatures, not easily deformed or aged, removable for cleaning and disinfection.

Silent Wheel

Adopting 5-inch high-end double-sided silent casters, with built-in fully enclosed self-lubricating bearings (extending service life), no need for refueling care, preventing foreign objects from getting involved, and independent braking; The wheel surface is made of TPR polymer wear-resistant material, which is wear-resistant, noiseless, and easy to move smoothly and quickly.
