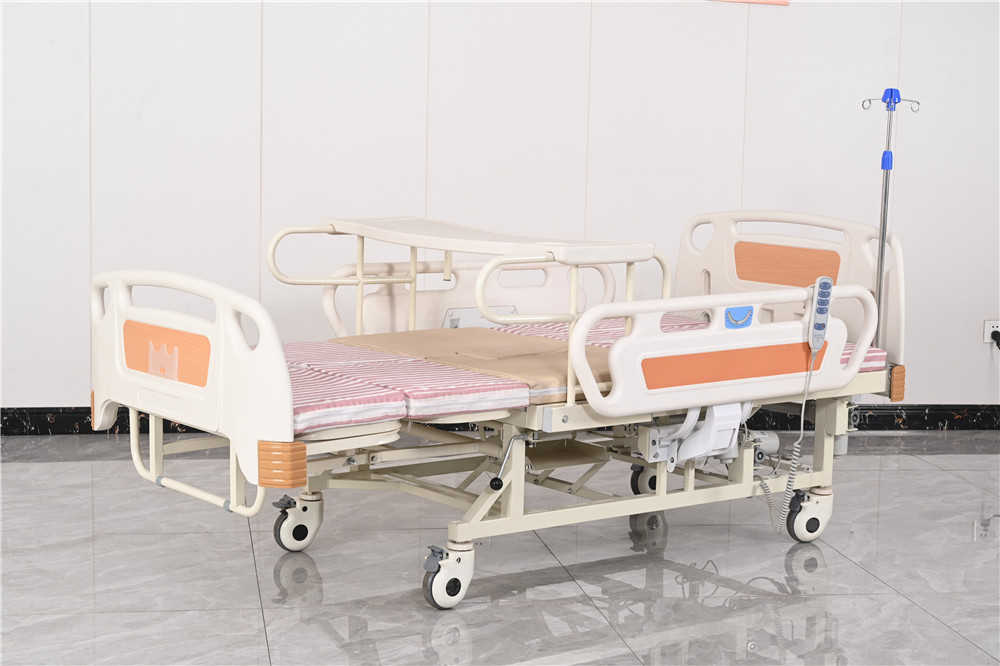

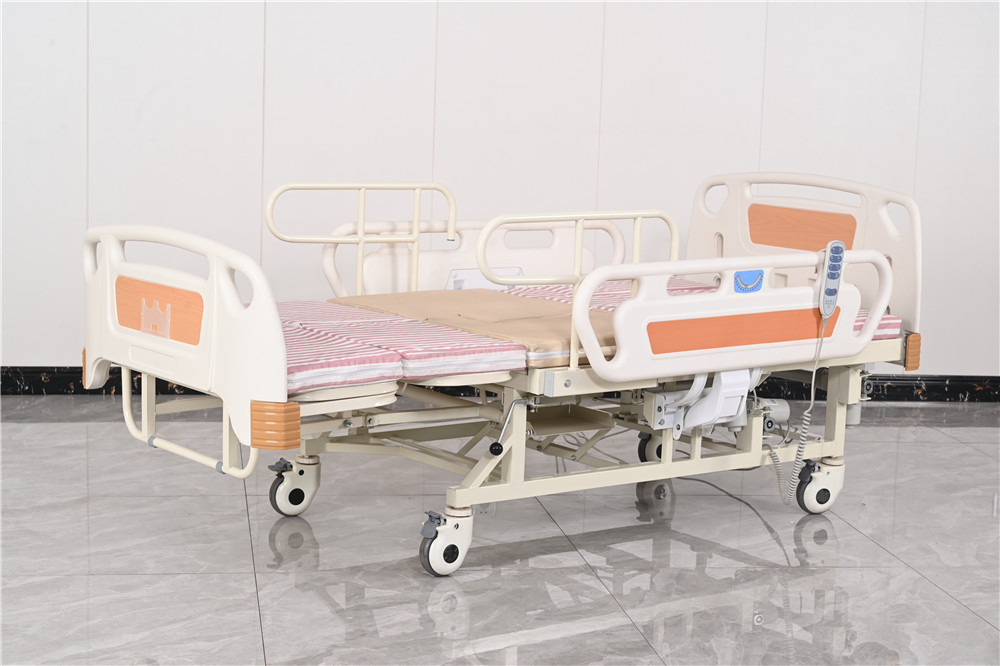

Dual use flashlight, enjoy comfort - Home turning care bed
| Product Name | Dual use flashlight home turning care bed |
| key word | Multi functional nursing bed |
| Model | C 05-1 |
| size | Dimensions: Length 2080mm * Width 1120mm * Height 560mm (including mattress) Inner diameter dimensions: length 1980 * width 900 * height 500mm (excluding mattress) Toilet hole size: length 310 * width 220mm |
| function | 5 functions |
| Bedhead and Bedend | ABS engineering plastic |
| Work load | 240 kilograms |
| Timed turnover period | 30 minutes or 45 minutes |
| Control method | Dual use flashlight |
| Caster wheels | Mobile silent casters |
| Specific purpose | Bed care bed |
| colour | Standard or customized |
| OEM/ODM | accept |
| Minimum order quantity | 1 set |
1.Equipped with three motors, it can achieve electric left and right turning, electric standing, and electric leg lifting, and the toilet can be converted to manual operation. At the same time, there is a timed turning function with two timing options: 30 minutes and 45 minutes.
2. Equipped with manual operation function. When encountering a power outage, users can still complete various nursing functions manually, effectively avoiding the problem of increased nursing difficulty caused by power outages.

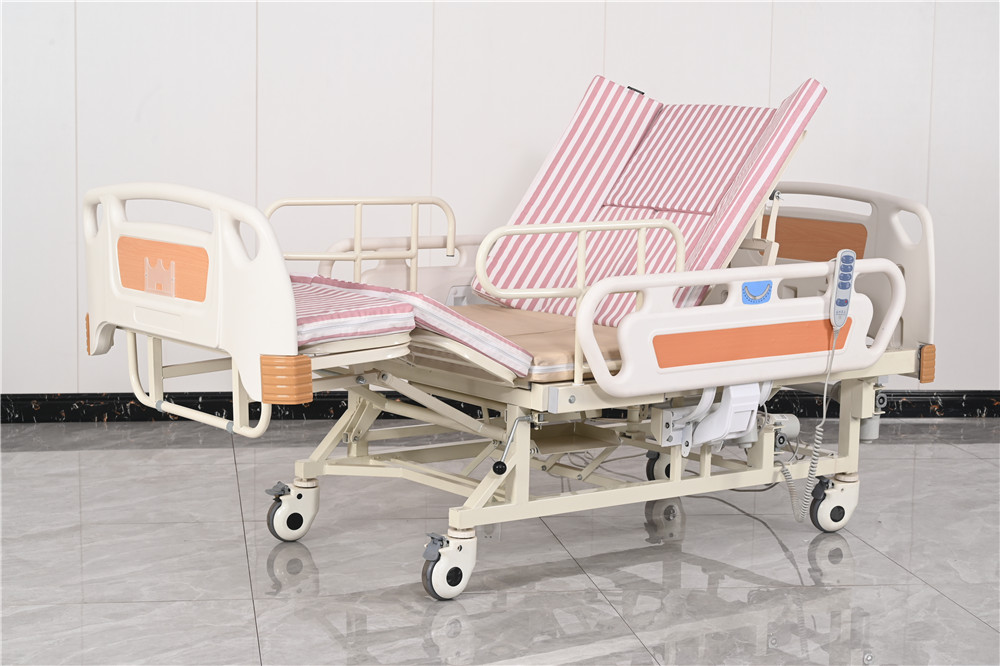

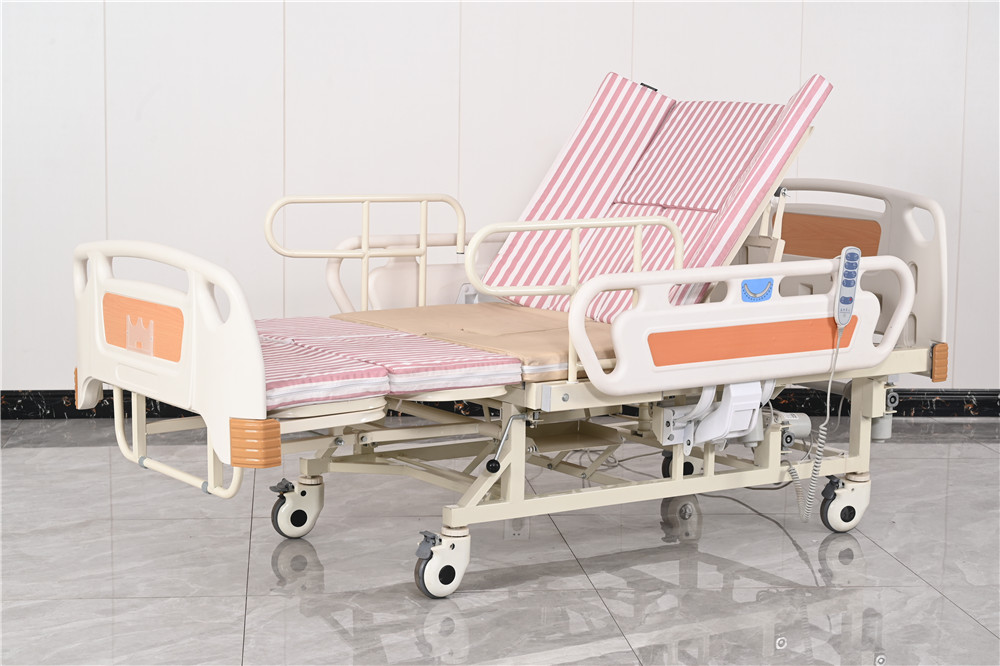

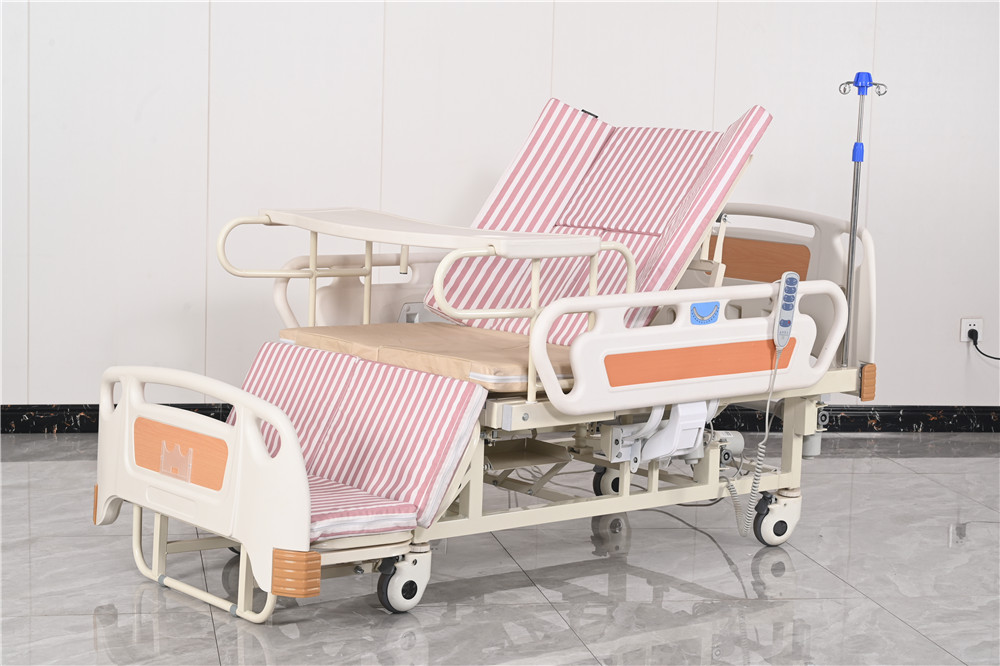

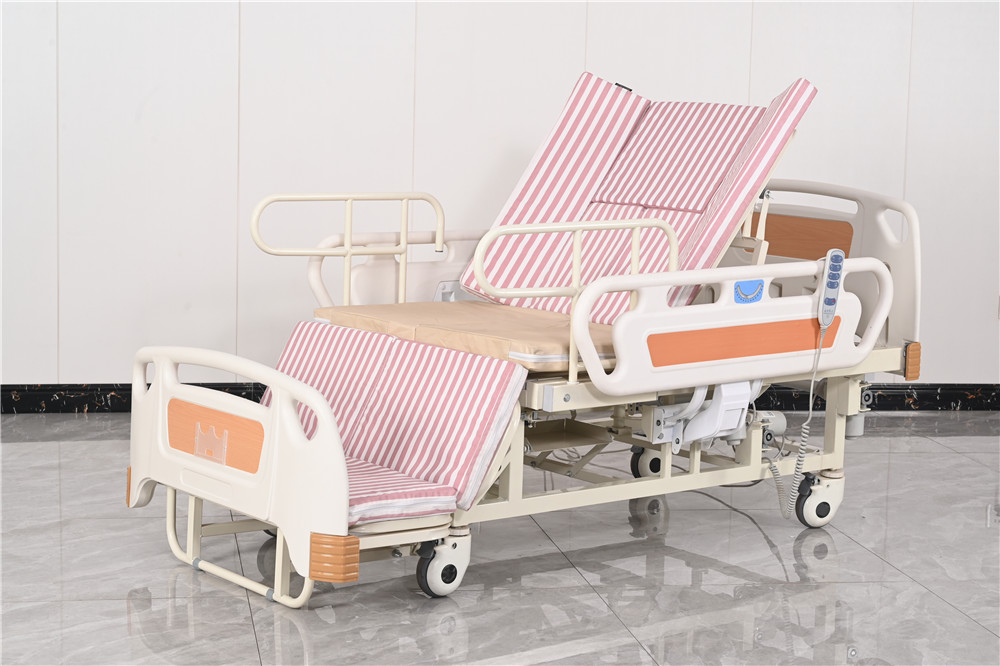

3. It has a one click sit up function. With just one click, the linkage between the back and the leg board can be achieved. The back slowly rises and the legs naturally descend, quickly transitioning the bed surface to a sitting state.
4. It has the function of overall side flipping. The flipping method of this product is to flip the bed as a whole to the left and right, and adjust the angle according to actual needs. The flipping speed is gentle and the angle setting is reasonable.

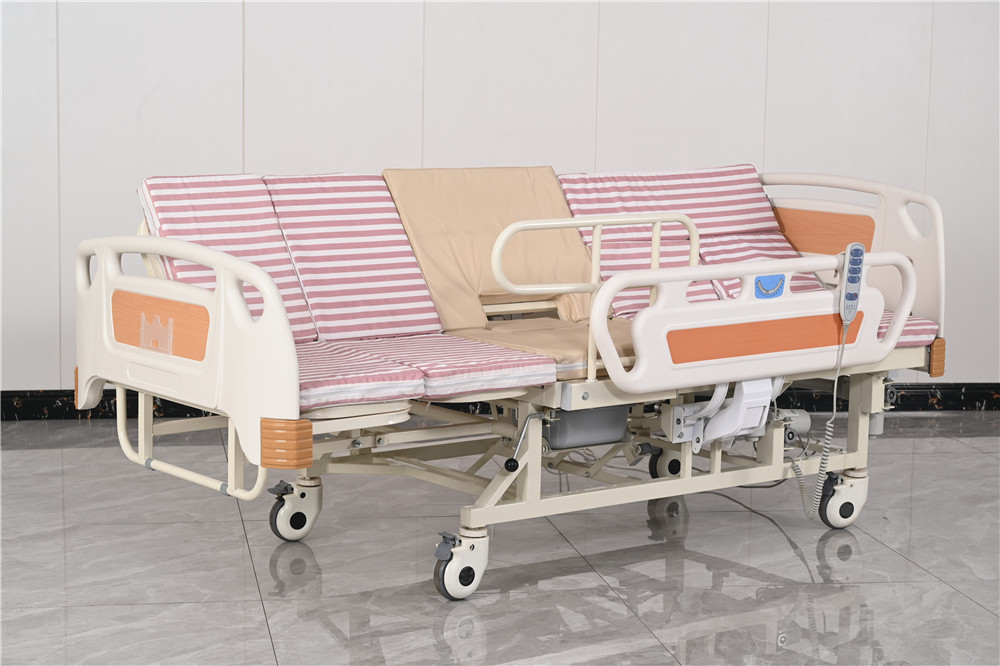

5.The anti slip function of the back is significant. As the sitting angle of the human body continues to increase, the bed boards on both sides will move inward, presenting a semi enclosed form, effectively preventing the caregiver from tilting to both sides.
In addition, the adjustment range of this nursing bed is also very wide. The back can be raised and lowered at an angle of 0 to 70 °, the leg position can be raised and lowered at an angle of+20 ° to -65 °, and the side flip can be adjusted at an angle of 0 to 45 °.
01
One click reset
The nursing bed has a one click reset function. Simply click the reset button to quickly restore the nursing bed to a lying down state, without the need to restore each function one by one. This greatly simplifies the operation process and effectively prevents improper operation caused by accidental touches.
02
Emergency stop function
To cope with possible special situations, the remote control handle is specially equipped with an emergency stop button. Once a special situation occurs, pressing the "emergency stop" function button will immediately stop all functions. After the unexpected release, operations can continue.
03
Motor anti winding design
In terms of design, our products fully consider the problems encountered in practical use. Considering that most products on the market have exposed motor ends that are prone to entanglement with objects during electric care, our nursing bed motor end adopts a concealed design, which is both aesthetically pleasing and completely eliminates such situations.
04
Guardrail
The nursing bed is equipped with ABS large guardrails, which are side ABS plastic lifting guardrails with a total length of 1080 millimeters. The guardrail can be lifted up and down, and during the descent process, it is equipped with a pneumatic deceleration device, which can effectively prevent harm to the user due to excessive descent speed. When the guardrail shrinks, it will be slightly higher than the bed surface, playing an important role in preventing the mattress from shifting.
05

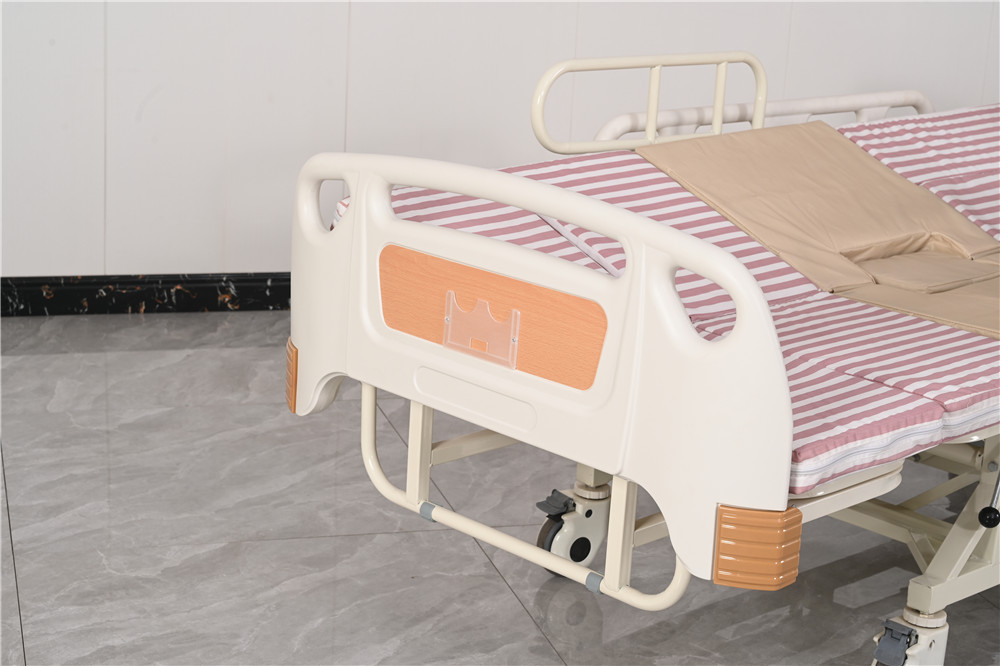

Bedhead and Bedend
The headboard and tailboard are made of ABS engineering plastic, which is blow molded in one go through a mold. The middle is decorated with wood grain color, which is both beautiful and has the characteristics of fade resistance, aging resistance, and corrosion resistance. At the same time, it is very easy to clean. There is a transparent medical record card installed on the bed tail board, and the head and tail of the bed can be freely disassembled without the need for any tools.
-
Caster wheels
-
The nursing bed is also equipped with mobile silent casters for easy and free movement. The casters are equipped with brake devices, which can firmly fix the bed. The diameter of the mobile casters is 12 centimeters, with built-in double bearings. The fork is made of a cold plate with a thickness of 2.5 millimeters, which is stamped and formed in one go. The tread is soft and quiet during movement.
-

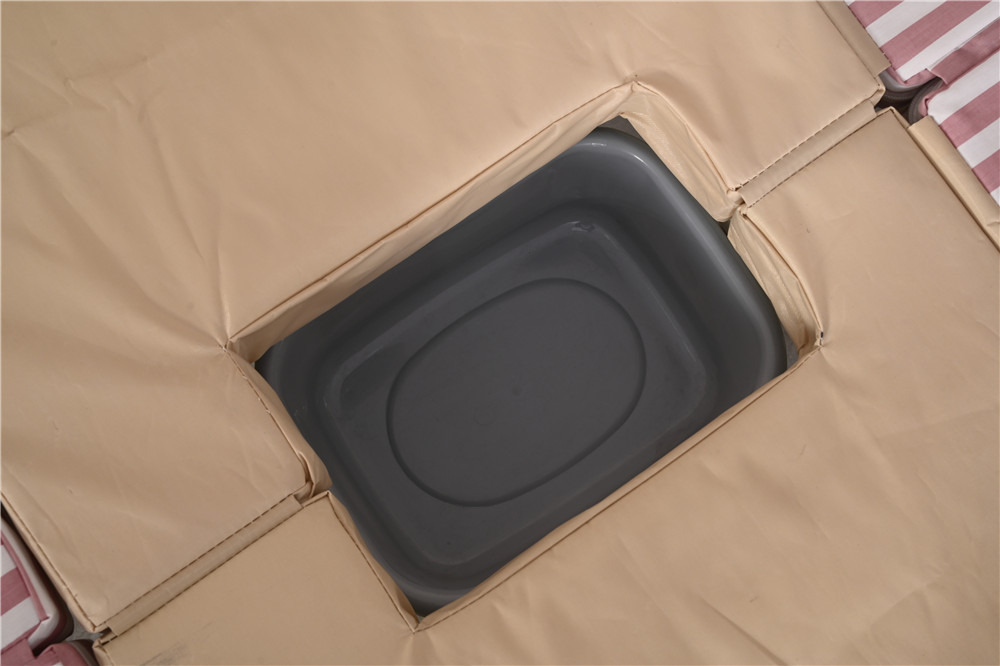

1-second quick access door

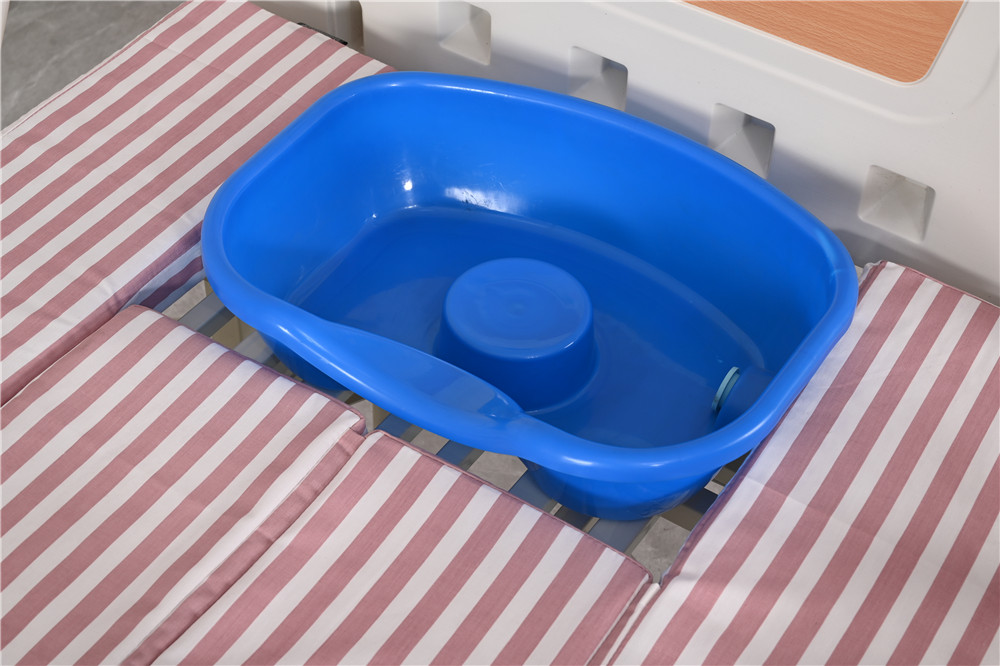

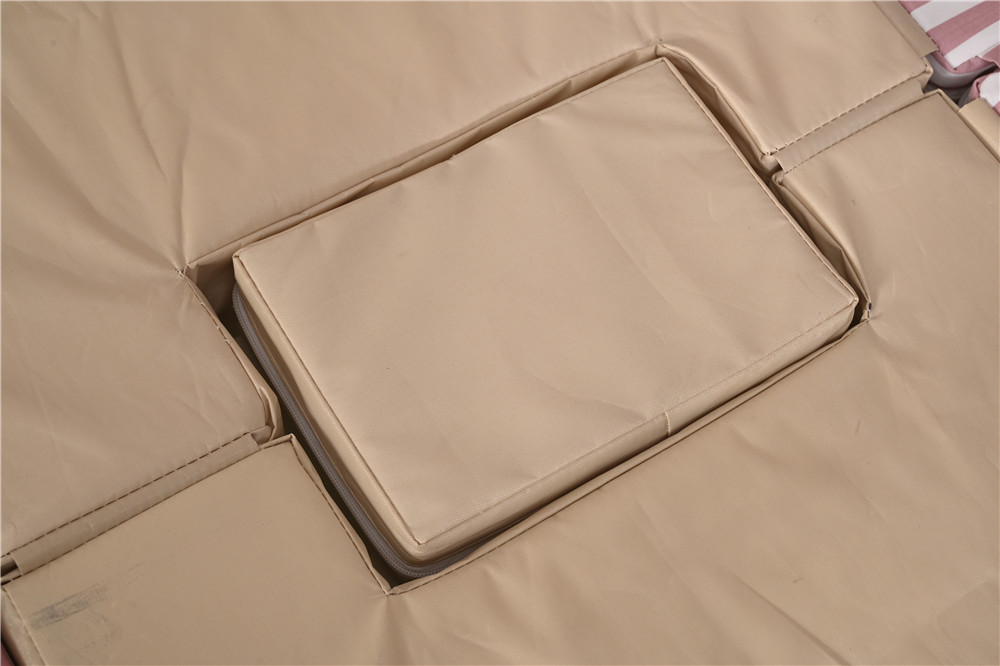

The load-bearing material of the nursing bed's access door is a solid steel rod with a diameter of 20 millimeters, which can effectively support the strength of the buttocks and ensure that there will be no sinking or non return during long-term use. The mattress at the toilet seat is designed to be bonded to the toilet seat, so there is no need to move the nursing staff when taking the stool. The mattress can be directly removed. At the same time, it is also equipped with an adjustable height device. If the mouth sinks during use, it can be adjusted by itself to restore it to its original position. The load-bearing plate of the container below the toilet seat is made of a 1.2mm thick steel plate that is stamped and formed in one go, ensuring overall safety and reliability.
