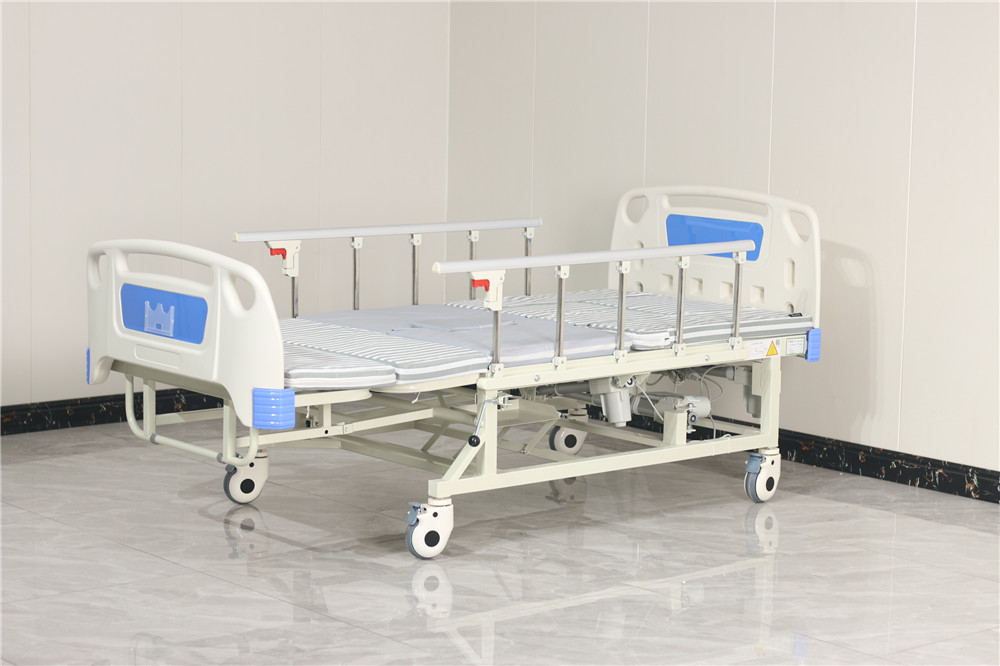

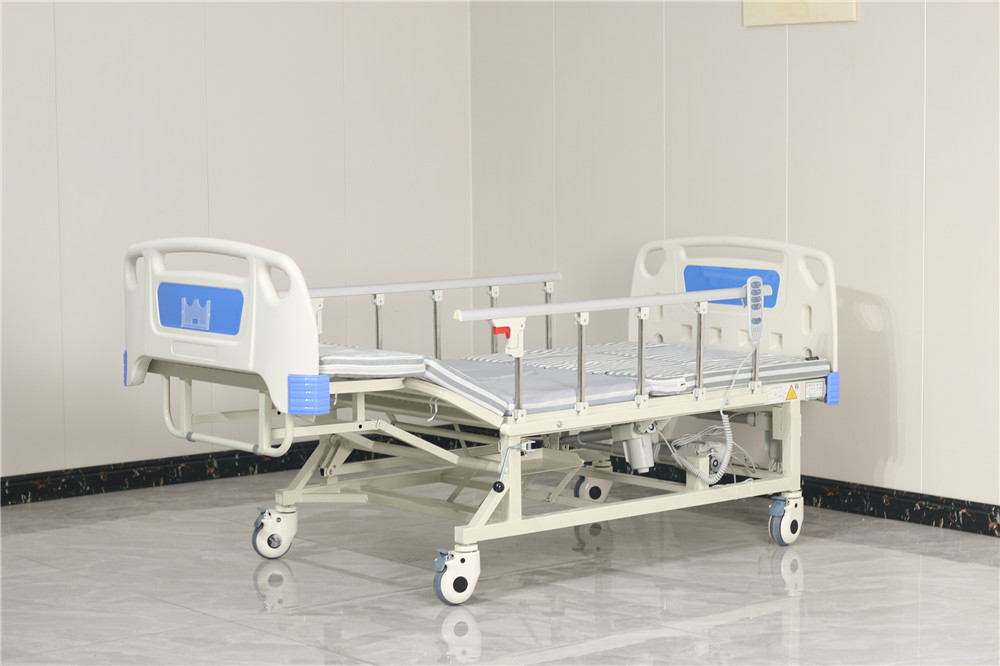

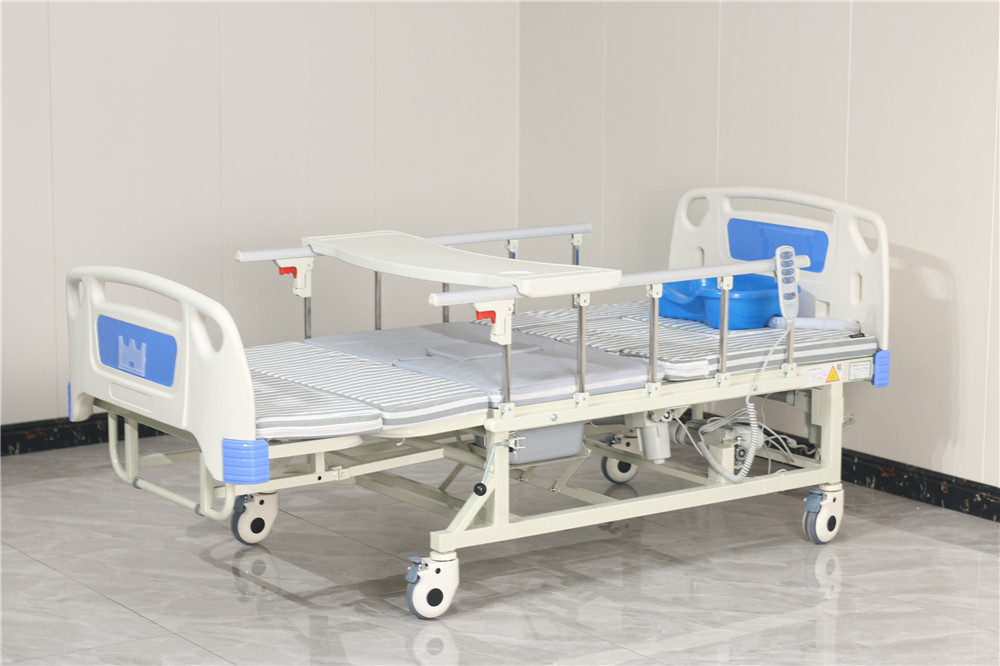

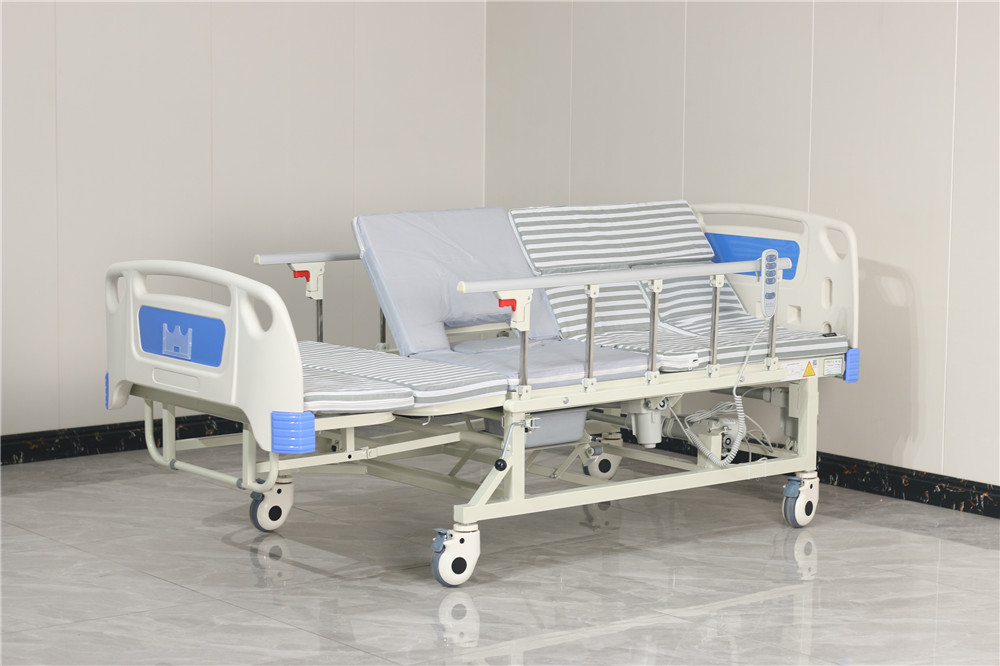

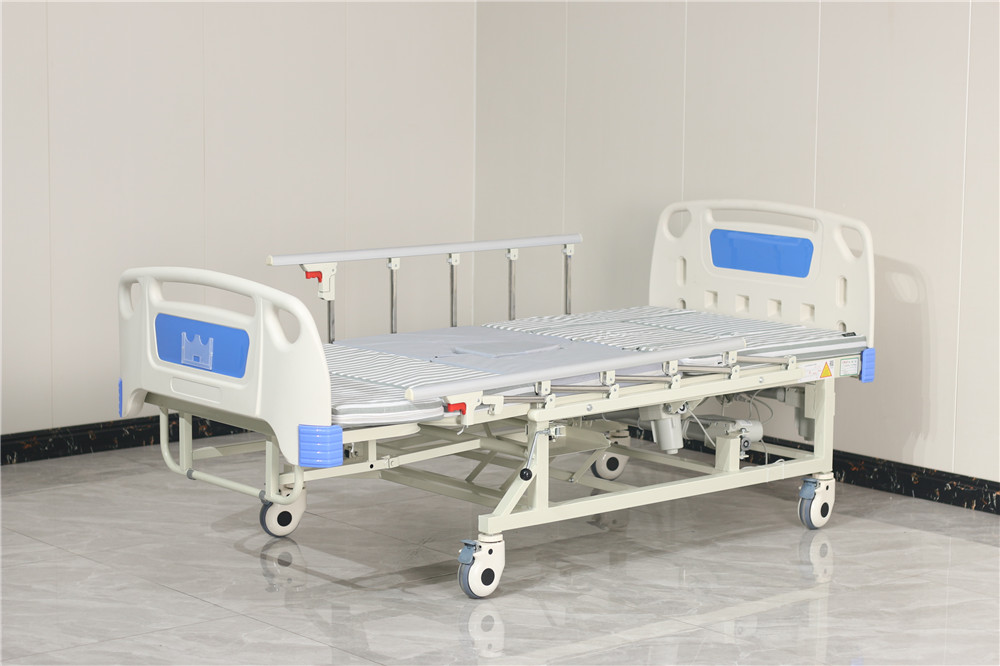

Dual drive flashlight, caring care - home turning care bed
| Product Name | Dual use flashlight home turning care bed |
| key word | Multi functional nursing bed |
| Model | DH04-1 |

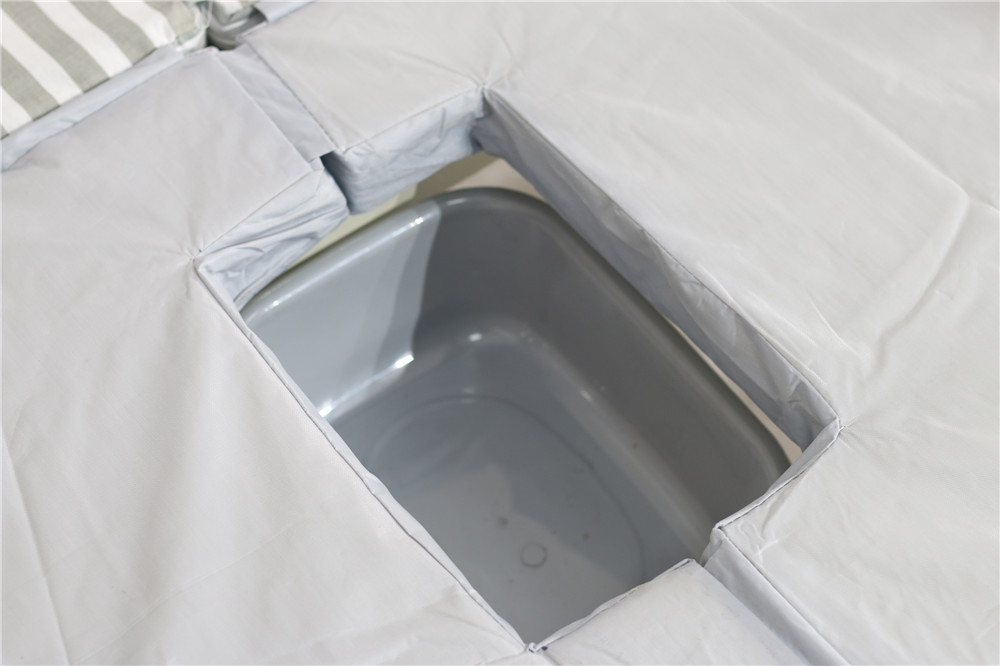

| size | Outer diameter dimensions: length 2030 * width 960 * height 560mm (including mattress) Inner diameter dimensions: length 1950 * width 900 * height 500mm (excluding mattress) Toilet hole size: length 310 * width 220mm |
| function | 5 functions |
| Bedhead and Bedend | ABS engineering plastic |
| Work load | 240 kilograms |
| Timed turnover period | 30 minutes or 45 minutes |
| Control method | Dual use flashlight |
| Caster wheels | Mobile silent casters |
| Specific purpose | Bed care bed |
| colour | Standard or customized |
| OEM/ODM | accept |
| Minimum order quantity | 1 set |

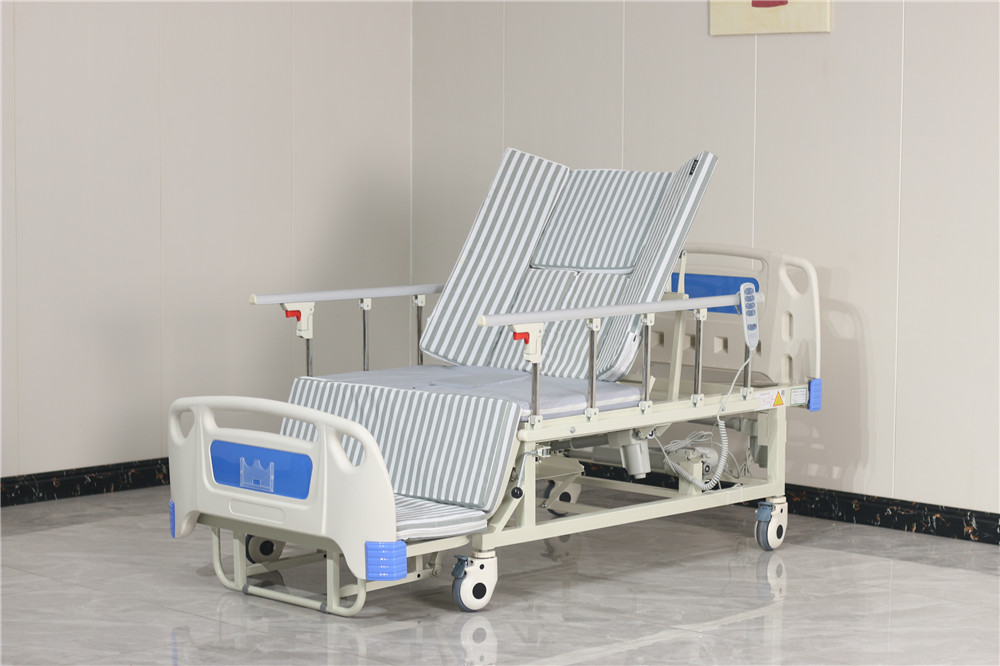

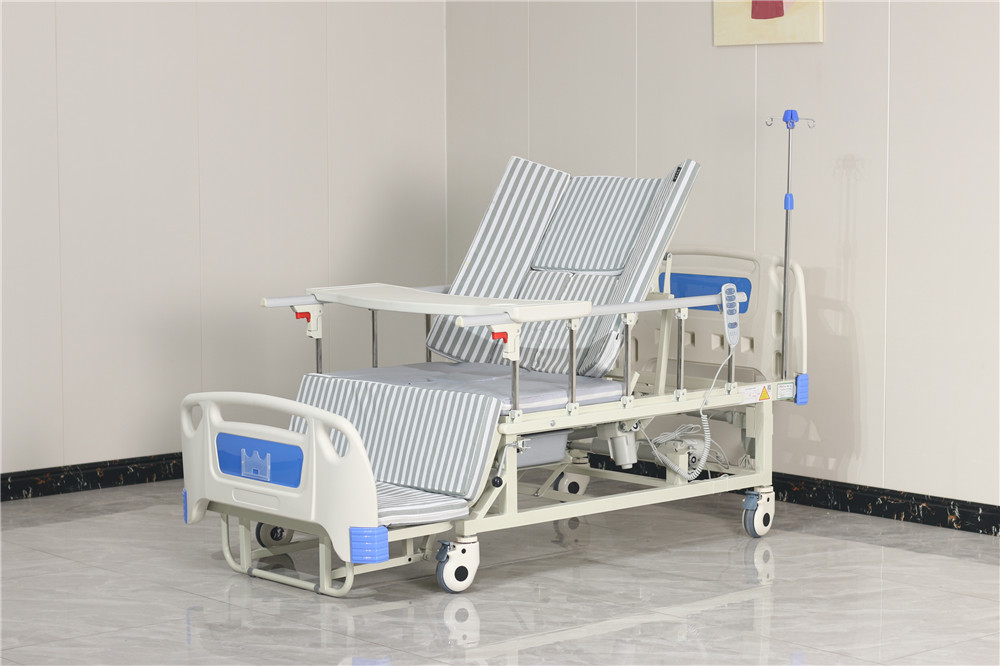

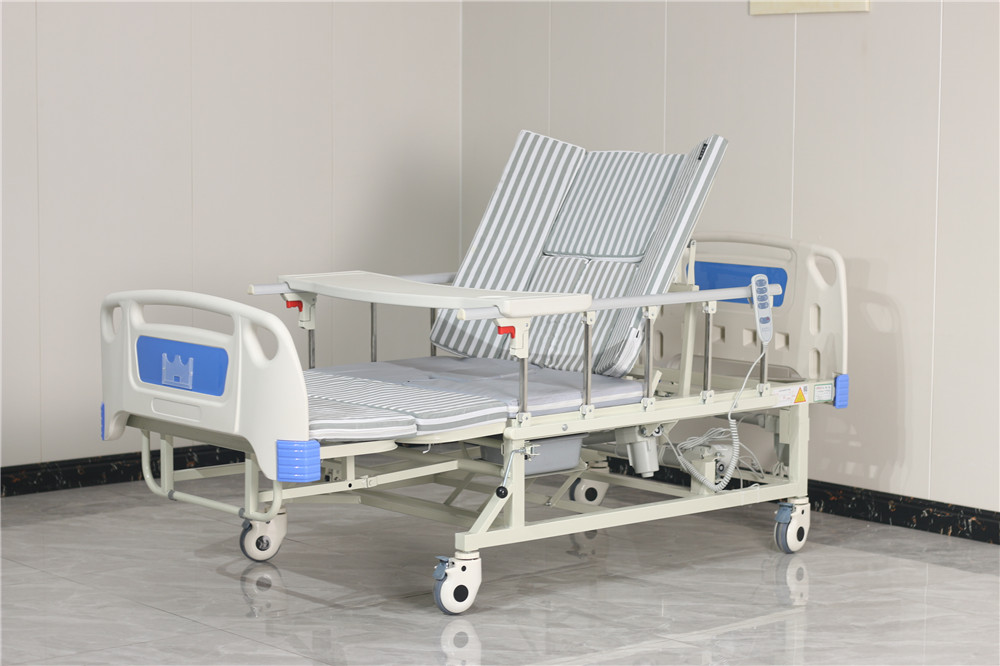

One click sit up function
The nursing bed has a convenient function of one click sitting up. With just one click operation, the linkage between the back and leg boards can be achieved. At this time, the back is raised, the legs are lowered, and the bed surface quickly switches to a sitting up state.

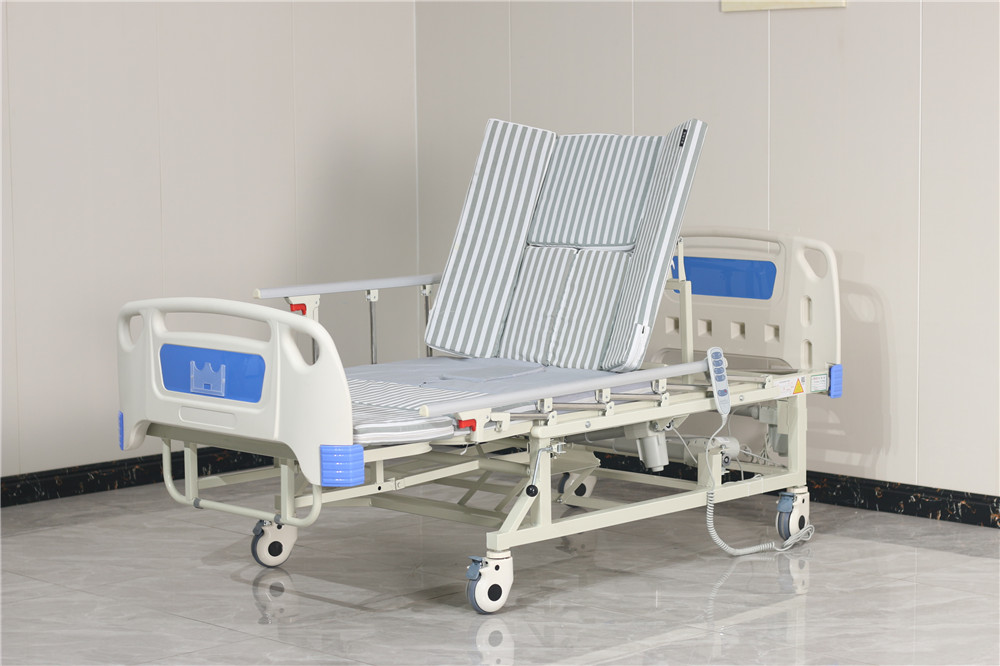

Back up anti slip function
As the sitting angle of the human body increases, the bed boards on both sides of the nursing bed will move inward, forming a semi enclosed form. This design can effectively prevent the caregiver from tilting to both sides, improving the safety of use.
-
One click reset function
-
The nursing bed is equipped with a one click reset button, which can quickly restore the bed to a lying down state by clicking, without the need to sequentially restore various functions, simplifying the operation process and preventing improper operation caused by accidental touch.
-
-
Emergency stop function
- The remote control handle is equipped with an emergency stop button. In case of special circumstances due to improper user operation, pressing the "emergency stop" button can immediately stop all functions. After accidental release, operation can continue.
-
Motor anti winding design
- Unlike products on the market where the motor end is exposed, this nursing bed adopts a concealed design for the motor end, which is beautiful and avoids entanglement with objects during electric nursing.
-

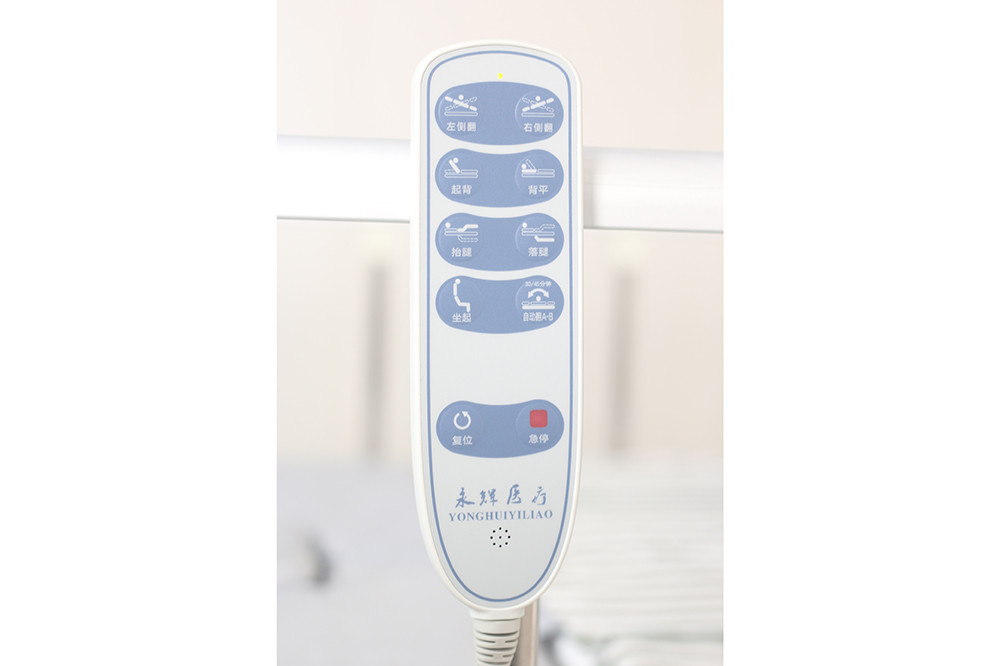

Handle luminous function
- Lightly tap any function key, and all function keys on the controller will light up, making it convenient for users to use at night.
-
Aluminum alloy guardrail
- The total length of the side guardrail is 1150mm, with a D-type aluminum alloy handrail and surface hardening treatment. There are 5 stainless steel guardrail pillars, and the upper and lower connectors are one-time stamped steel parts with a thickness of 2.5mm. The switch design ensures long-term use safety, equipped with anti loosening fasteners, wear-resistant and non deformable, and can be retracted and placed flat. When retracted, it is slightly higher than the bed surface to prevent mattress displacement.
Raw material cutting
Raw material discharging
Machining (bending, punching, touching arc, shrinking)
Welding
Polishing
Spraying
Assembling and debugging
Finished product inspection
Raw material cutting
