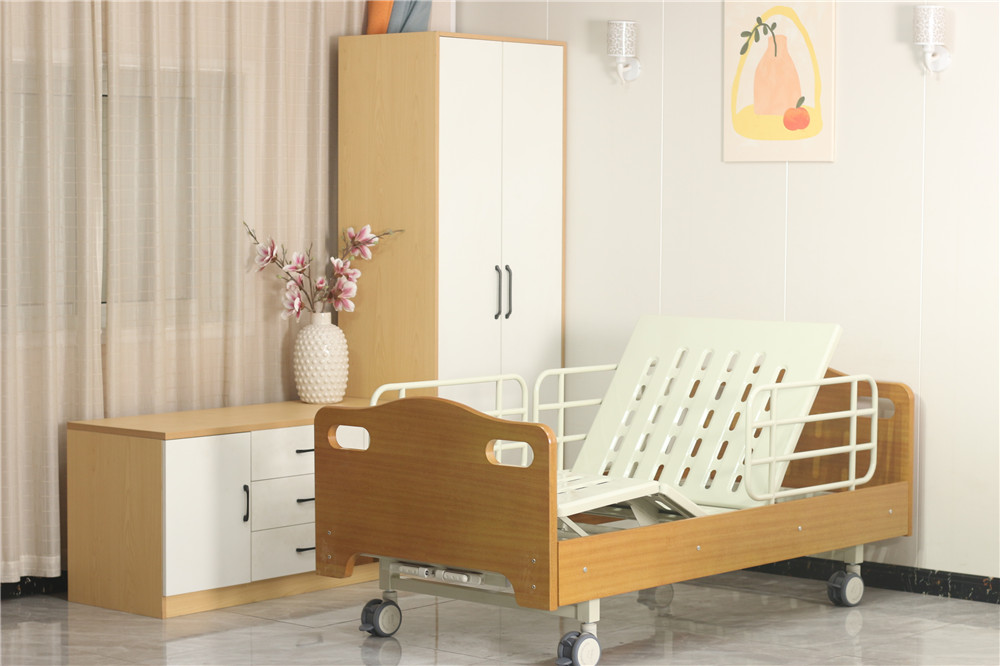

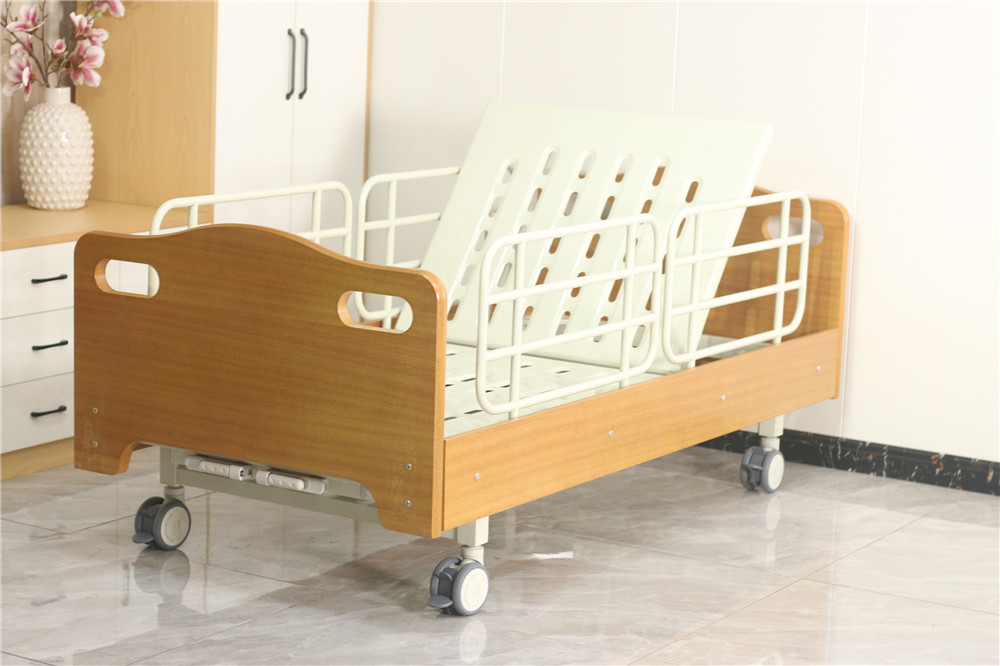

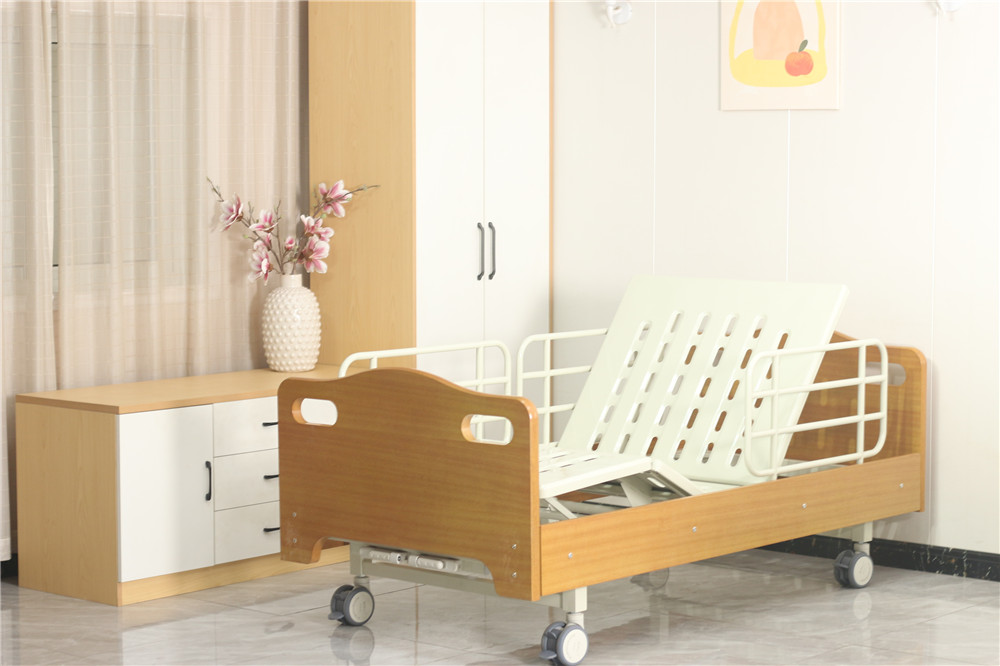

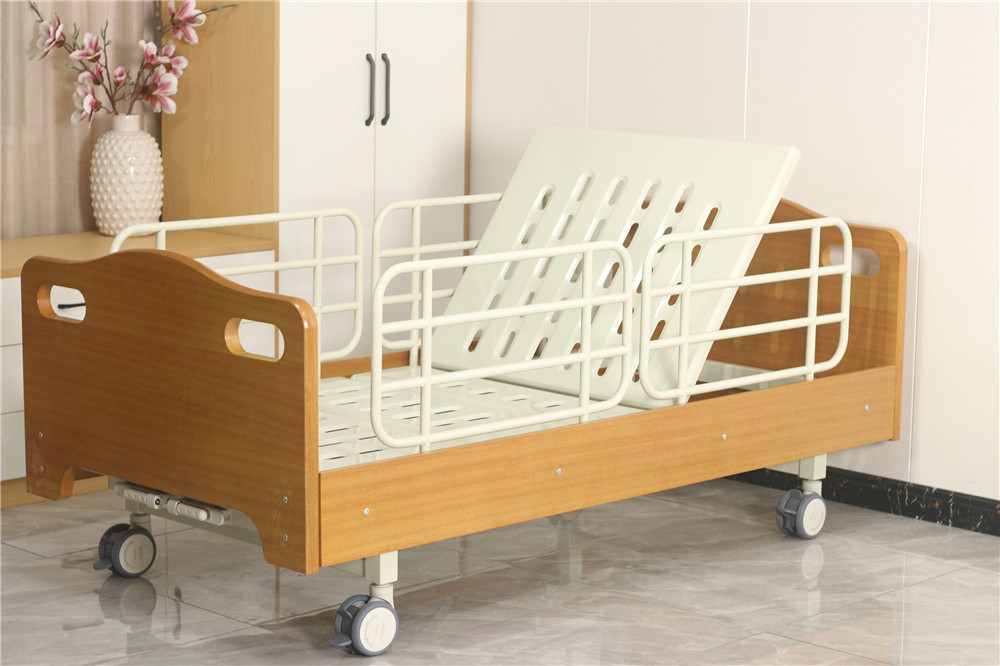

Comfortable choice: Manual dual function home bed

The bed body is made of high-quality cold-rolled carbon steel pipes ≥ 40 × 60, with a steel thickness ≥ 1.2mm. The bed legs are made of high-quality cold-rolled carbon steel pipes ≥ 50 × 50, with a steel thickness ≥ 1.2mm. The bed body connectors are all made of thick walled pipes with a thickness of ≥ 2.75mm or cold-rolled sheets with a thickness of ≥ 3mm, which are stamped and formed.

The total weight of the bed is ≥ 100kg (including guardrails, mattresses, headboards, and tailboards);

product details

Product Parameters

Product Name	Manual dual function home bed
key word	Manual nursing bed
Model	HR-DJ15
size	The overall length of the bed is 2070 ± 50mm, the overall width of the bed is 1020 ± 20mm, and the height of the bed surface above the ground is 400 ± 20mm
Bedhead and Bedend	Wooden board veneer
Work load	Static maximum load ≥ 300kg, dynamic maximum load ≥ 200kg
Timed turnover period
Control method	Manual
Caster wheels
Specific purpose	Home care bed
colour	Standard or customized
OEM/ODM	accept
Minimum order quantity	1 set

Product Details

The bed board is made of cold-rolled steel plate with a thickness of ≥ 1.2mm and is formed by one-time stamping. It adopts a multi hole design.

The headboard and footboard of the bed are made of 35mm thick wooden boards that have been coated with leather and baked with paint. They are aesthetically pleasing, not easily deformed, and will not experience paint peeling or peeling after long-term use.

The guardrail adopts a 4-piece steel plug-in guardrail with surface hardening treatment. The single guardrail has a specification of 800 * 400mm and a locking function.

Swinging system: two sets of joysticks; Stainless steel handle, concealed design, pasted with position lifting signs, making the operation clear at a glance. The joystick is designed entirely of stainless steel, which is sturdy, flexible, noiseless, and easy to operate; Flexible adjustment of the patient's back. Equipped with a limit protection device and covered with an ABS plastic dust cover, it has a beautiful appearance, wear resistance, and long service life.

product advantage

Workmanship
- Welding process: All metal components of the hospital bed are automatically welded by welding robots.

  Surface treatment process: Powder coating is sprayed on the surface of the bed to achieve antibacterial, anti mold, environmentally friendly, non-toxic and harmless effects. The limit of harmful substances (soluble heavy metal content) is higher than the national standard.
01
Mattress
- Mattress thickness ≥ 80mm, length and width matching the bed;

  The mattress cover is made of waterproof high-density Oxford cloth;

  The mattress liner adopts a double-layer structure of high-density sponge with a thickness of ≥ 40mm and environmentally friendly brown with a thickness of ≥ 40mm;
